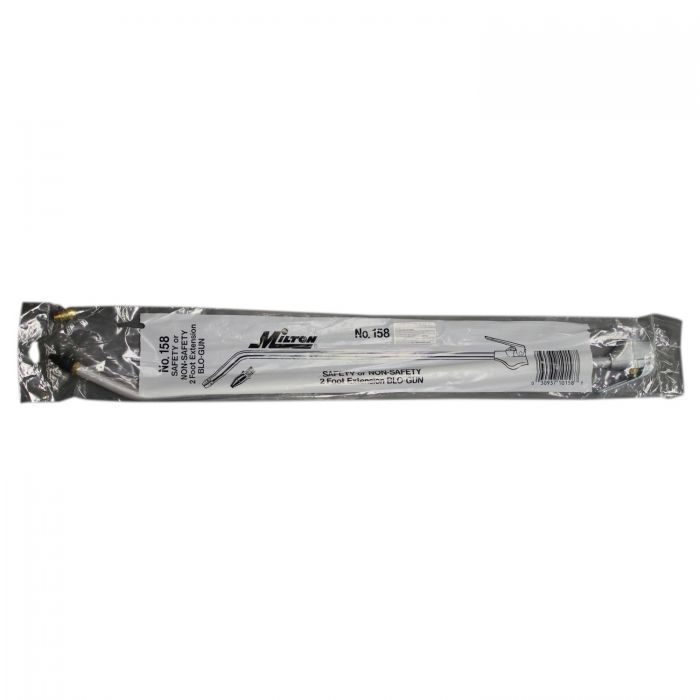

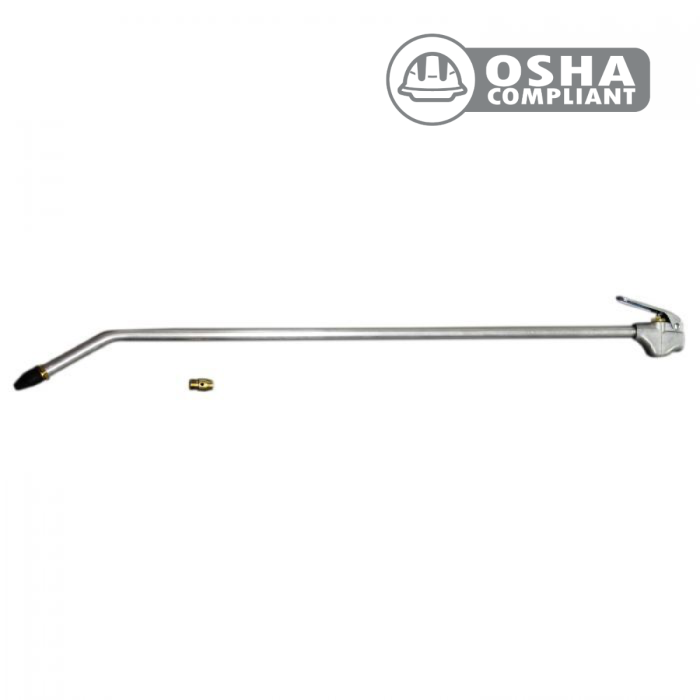

Milton 158 | Safety Extension for Air Blo-Gun - 2 ft Extension

With an angled extension, this safety blowgun is great for hard to reach areas. Has an air inlet of 1/4" NPT and a maximum working pressure of 150 PSI. Includes both a safety nozzle and a rubber tip. This safety blow gun is OSHA compliant with the safety nozzle only, which will limit pressure to 30 PSI when dead-ended. Nozzle thread measure 7/16" -27.

Milton Industries - 158 - Features

• Multi-function blo-gun comes with both a Venturi nozzle and rubber tip nozzle
• OSHA compliant when using Venturi tip
• Extension is bent to access hard to reach areas such as motors, machinery, transmissions, combines and hidden areas
• Blow Gun and Extension
• Inlet Size 1/4 Inch
• Inlet Connection Threaded
• Body Material Zinc
• Tip Material Rubber
• Air Consumption 10.5 SCFM (Venturi Tip), 11.6 SCFM (Rubber Tip)
• Pressure Rating 150 PSI
• Inclusions/Features Venturi Nozzle, Rubber Tip Nozzle
• Application Motor, Machinery
• Applicable Standard OSHA
• Nozzle Thread Size 7/16 Inch-27 TPI
• Extension Length 2 Foot
• 2' Extension
• Maximum working pressure: 150 PSI
• SCFM 10.5 @ 100 PSI, safety nozzle
• SCFM 11.6 @ 100 PSI, rubber tip
• 1/4” NPT air inlet
• OSHA compliant with safety tip only
• OSHA approved multi-function blo-gun comes with both a safetynozzle and rubber tip nozzle. Extension is bent to access hard toreach areas such as motors, machinery, transmissions, combinesand hidden areas. Display packed.

Milton Industries - 158 - Additional Information

• Nozzle Thread Size 7/16 Inch-27 TPI
• Extension Length 2 Foot

Milton Industries - 158 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 158 - Specifications

Order Part Number	MI158
Item Desc	Safety Extension for Air Blo-Gun - 2' Extension
Individual Item Quantity	5 per Box
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	158
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
Status	Y
UNSPSC	27131500
Made in USA	No
Display on Bloguns CMS Page	No
Manufacturer	Milton Industries Inc.
Air inlet NPT size	1/4" NPT Air Inlet
Basic Flow Size	No
Bowl capacity	No
Chuck Style	No
Connection Type	No
FRL type	No
Gauge Type	No
Hose ID Size	No
Hose Length	No
Hose OD size	No
Material Type	No
Maximum Pressure	No
Maximum PSI	150 PSI
NPT thread size	No
PSI	No

Milton Industries - 158 - Package Information

Package/Shipping Quantity

1 per Card
