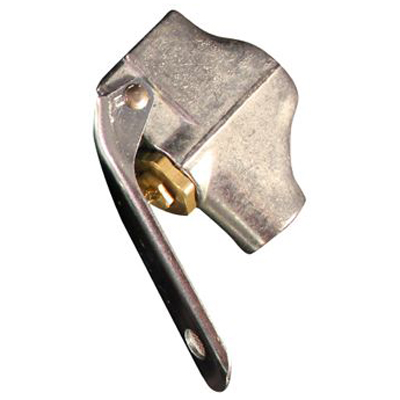

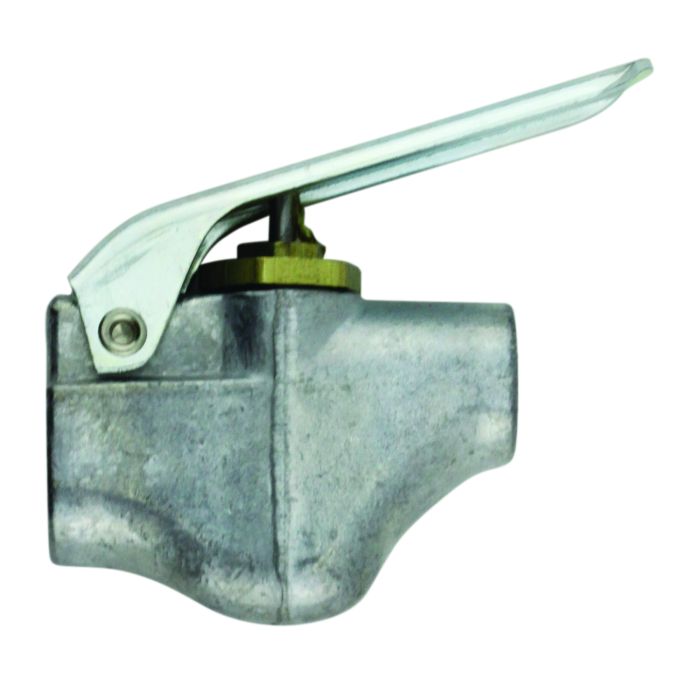

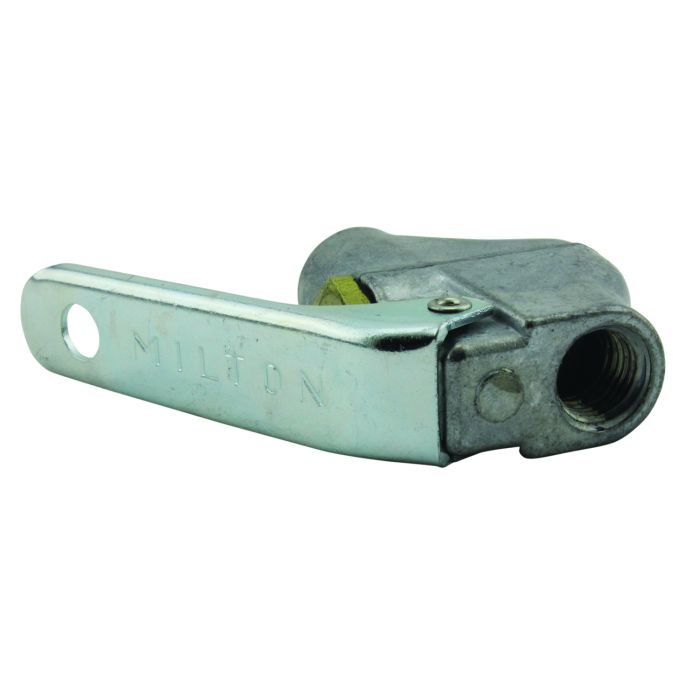

Milton 151 | Blow Gun Control Valve

Use this lever control valve with two way valve on air, fluid and vacuum lines. Perfect for tire changing machines, this control valve has a 1/4" FNPT inlet and a 1/4" FNPT outlet. Has a maximum working pressure of 150 PSI and offers 24.5 SCFM at 100 PSI.

Milton Industries - 151 - Features

• Lever control 2-way valve for use on air, fluid and vacuum lines
• Perfect for tire changing machines
• Stainless steel spring, synthetic washer
• Made in USA
• Blow Gun Control Valve
• Item Control Valve
• Type 2-Way, Lever Style
• Designated Size 1/4 Inch Female Threaded x 1/4 Inch Female Threaded
• Material Zinc Alloy
• Used On Item Blow Gun
• Temperature Rating 200 Deg F
• Pressure Rating 150 PSI
• Airflow Rating 24.5 SCFM at 100 PSI
• Packaging Type Boxed
• Maximum working pressure: 150 PSI
• SCFM 24.5 @ 100 PSI
• Female 1/4" NPT inlet x 1/4" NPT outlet.
• Maximum temperature: 200ø F
• Zinc alloy body, stainless steel spring, synthetic washer.
• For use on air, fluid or vacuum lines. Perfect for tire changing machines.Lever control, two-way valve.

Milton Industries - 151 - Overview

• 1/4" female national pipe threads
• Maximum working pressure of 150 pounds per square inch
• 24.5 standard cubic feet per minute at 100 pounds per square inch
• Maximum temperature of 200 degrees Fahrenheit
• Control Valve

Milton Industries - 151 - Additional Information

• Temperature Rating 200 Deg F
• Pressure Rating 150 PSI
• Airflow Rating 24.5 SCFM at 100 PSI
• Packaging Type Boxed

Milton Industries - 151 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 151 - Specifications

Order Part Number	MI151
Item Desc	Blow Gun Control Valve
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	151
UPC	309373001332
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131500
Short Description	Control Valve
Grouped Product Package Type	Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Manufacturer	Milton Industries Inc.
Material Type	No
Display on Bloguns CMS Page	No
SCFM	SCFM 24.5 @ 100 PSI
Maximum PSI	150 PSI
Maximum Pressure	Max Pressure 150 PSI
Air inlet NPT size	1/4" NPT Air Inlet
Height	0.8
Width	2.74
Length	3.03
Style	Lever-Style
Blo Gun Body material	Zinc alloy body
Usage	Lever control with 2 way valve for use on air and fluid
