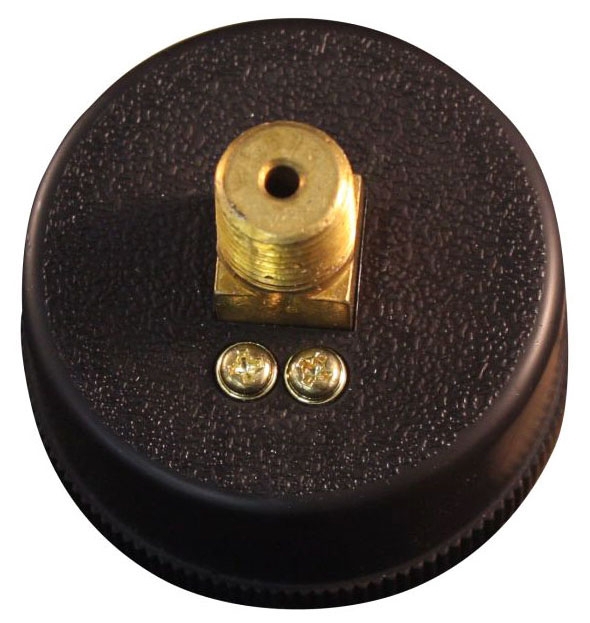

Milton 1191 | Pressure Gauge 1/4 Inch NPT Center Back Mount 0-160 PSI

Use this pressure gauge for reliable service with compressors, regulators, air lines, pneumatic tools and equipment. Made up of a brass mechanism, ABS case and a polycarbonate lens, this gauge is resistant to heat, corrosion, water, salt water and oil. Can also be used in steam applications if less than 120 degrees Fahrenheit. The 1/4" NPT pressure gauge has a center back mount and offers a pressure range of 0 to 160 PSI. 2" face diameter.

Milton Industries - 1191 - Features

• Diaphragm Construction
• High-quality gages
• Resistant to heat, corrosion, water, salt water and oil
• Mini High Pressure Gauge
• Pressure Gauge Type Dial
• Minimum Pressure 0 PSI
• Maximum Pressure 160 PSI
• Mounting Type Center Back
• End Connection 1/4 Inch Threaded
• Dial Diameter 2 Inch
• Temperature Rating 40 to 140 Deg F
• Application Compressor, Regulator, Air Line, Pneumatic Tool, Equipment
• Gauge Type Dial Gauge
• Resistant to heat, corrosion, water, salt water, and oil.
• Can be used in steam applications if less than 120ø F.
• Brass mechanism. ABS case. Polycarbonate lens.
• Maximum working pressure: Should be limited to 75% of dial range.
• Maximum working temperature: -13ø F to 120ø F.
• NPT: 1/4"
• Mount: Center Back
• PSI Range: 0-160
• Face: 2" face
• Pressure Gage 1/4 In NPT Center Back Mount 0-160 PSI

Milton Industries - 1191 - Overview

• 1/4" national pipe thread
• Pressure range of 0 to 160 pounds per square inch
• Temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit

Milton Industries - 1191 - Additional Information

• Gauge Type Dial Gauge

Milton Industries - 1191 - Specifications

Order Part Number	MI1191
Item Desc	Pressure Gage 1/4 In NPT Center Back Mount 0-160 PSI
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1191
UPC	309371119138
Product Group Id	MI00
Country of Origin	US
UNSPSC	41112412
