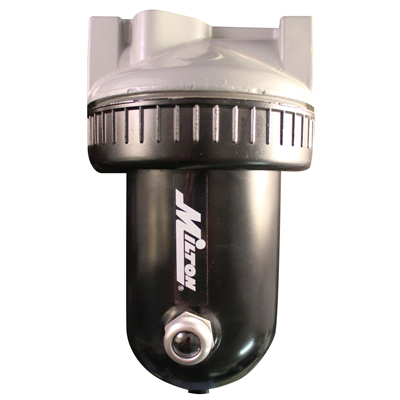

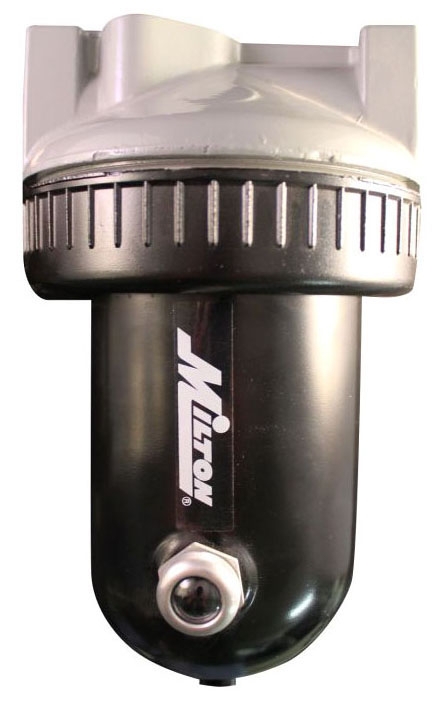

Milton 1170 | 1/2 Inch Compact Desiccant Dryer - 1 Quart

This 1/2" compact desiccant dryer with 1 quart capacity delivers extremely dry, compressed air as low as -30 degrees Fahrenheit. Incoming air is dispensed through a 70 micron polypropylene element for removal of particles. The air is then distributed uniformly through the desiccant to the bottom of the bowl where clean/dry air enters the intake tube. As the desiccant beads attracts water from the compressed air and become saturated, the color changes from blue to pink. Maximum pressure of 250 PSI.

Milton Industries - 1170 - Features

• Sight Glass
• Easy to monitor, when color changes in the sight glass from dark blue to pink, then it is time to change or dry the desiccant. To dry desiccant, remove from unit, bake at 275 Deg F for 3 hours. To prolong the life of the unit, a 40 micron pre-filter and 0.03 coalescing filter should precede dryer
• Made in USA
• Compact FRL Desiccant Dryer
• Item Desiccant Dryer
• Used On Item Compact FRL
• Used On Item Part No 1072
• Connection Size 1/2 Inch Threaded
• Bowl Type Metal Bowl
• Bowl Capacity 1 Quart
• Pressure Rating 250 PSI (Air)
• Operating Temperature 40 to 160 Deg F
• Airflow Rate 5 to 15 SCFM
• 1 quart capacity
• SCFM: 5-15 maximum
• Delivers extremely dry compressed air as low as -30° F dew point without using electricity or refrigerant. Easy to monitor, when color changes in the sight glass from dark blue to pink, then it is time to change or dry the desiccant. To dry desiccant, remove from unit, bake at 275° F for 3 hours. To prolong the life of the unit, a 40 micron pre-filter, and .03 coalescing filter should precede dryer. Initial supply of desiccant is included.

Milton Industries - 1170 - Overview

• 1/2" national pipe thread
• Maximum pressure of 250 pounds per square inch
• Pro tip: Dry desiccant beads in an oven at 275 degrees Fahrenheit for 3 hours

Milton Industries - 1170 - Additional Information

• Connection Size 1/2 Inch Threaded
• Bowl Type Metal Bowl
• Bowl Capacity 1 Quart
• Pressure Rating 250 PSI (Air)
• Operating Temperature 40 to 160 Deg F
• Airflow Rate 5 to 15 SCFM

Milton Industries - 1170 - Related Products

• Milton 1/4" & 3/8" Air Line Mounting Bracket
• Milton 1/2" Air Line Mounting Bracket
• Milton Automatic Internal Filter Float Drain
• Milton 3/8" NPT Metal Coalescing Filter

Milton Industries - 1170 - Specifications

Order Part Number	MI1170
Item Desc	1/2" Compact Desiccant Dryer - 1 Qt
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1170
UPC	309371017090
Product Group Id	MI00
Country of Origin	US
UNSPSC	23201202
Short Description	DESICCANT DRYER-W/DESICCANT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Delivers extremely dry compressed air
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/2" NPT Inlet
PSI range	No
Maximum PSI	250 PSI
SCFM	No
Height	4.875
Width	4.875
Length	7.75
Bowl capacity	1 quart capacity
