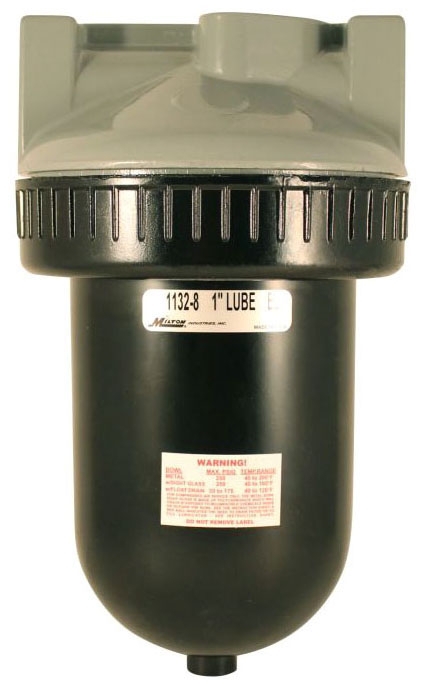

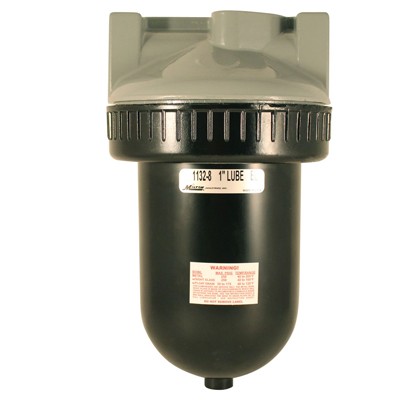

Milton 1132-8 | Precision Lubricator 1 Inch NPT with Sight Glass 29 Oz, Metal Bowl

This 1" NPT heavy duty lubricator is the wick type. The adjusting knob is removable to ensure tamper proof reliability. This lubricator may be filled without shutting down line pressure and oil can be delivered at an air flow as low as 2 SCFM. Comes with 29 ounce capacity metal bowl. Maximum pressure of 200 PSI and 175 SCFM.

Milton Industries - 1132-8 - Features

• Great way to provide oil to air tools that require oil for operation
• Made in USA
• Precision Lubricator
• Type Heavy Duty
• End Connection 1 Inch Threaded
• Bowl Capacity 29 Ounce
• Bowl Material Metal
• Air Consumption 175 SCFM
• Pressure Rating 200 PSI
• Temperature Rating 40 to 120 Deg F
• Includes Sight Glass
• Ideal for the customer who wants trouble-free protection and tamper proof reliability.
• Perfect for lubrication of air motors, tools, valves or where low air flow is encountered or where extremely fine adjustments are necessary.
• Tamper proof.
• Lubricator may be filled without shutting down line pressure.
• Oil supply tube check valve guarantees instant start-up lubrication.
• Low pressure drop at full air flow.
• Oil delivered at an air flow as low as 2 SCFM.
• Wick type.
• NPT size: 1"
• Bowl Capacity: 29 oz.
• Maximum pressure: 250 PSI
• Temperature: 40ø to 160ø F
• Maximum SCFM 175
• Precision Lubricator 1 In NPT w/ Sight Glass 29 Oz Metal Bowl

Milton Industries - 1132-8 - Overview

• 1" national pipe thread
• Maximum pressure of 200 pounds per square inch
• Maximum of 175 standard cubic feet per minute at 100 pounds per square inch
• Temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit

Milton Industries - 1132-8 - Additional Information

• Includes Sight Glass

Milton Industries - 1132-8 - Specifications

Order Part Number	MI1132-8
Item Desc	Precision Lubricator 1 In NPT w/ Sight Glass 29 Oz Metal Bowl
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1132-8
UPC	309373038062
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131604
