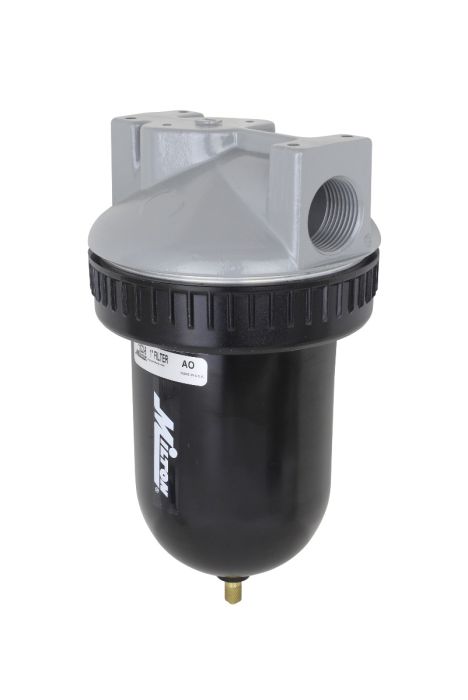

Milton 1122-8 | Micro Filter Metal Bowl 1 Inch NPT 29 Oz, 300 SCFM Max

This 1" NPT heavy duty micro filter is supplied with pre-assembled automatic overnight drain, 3 stage baffle system and porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems. The corrosion resistant metal bowl has a capacity of 29 ounces. Maximum of 250 PSI and 300 SCFM.

Milton Industries - 1122-8 - Features

• This 1 Inch NPT heavy duty micro filter is supplied with pre-assembled automatic overnight drain, 3 stage baffle system and porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems
• Made in USA
• Micro Filter
• Type Heavy Duty
• End Connection 1 Inch Threaded
• Filter Rating 40 Micron
• Bowl Capacity 29 Ounce
• Bowl Material Metal
• Air Consumption 300 SCFM
• Pressure Rating 250 PSI
• Temperature Rating 40 to 160 Deg F
• Drain Type Auto Overnight
• Includes 40 Micron Bronze Sintered
• Designed for the efficient removal of harmful foreign matter such as condensed moisture, pipe scale, dirt and rust from the air stream.
• The Milton micro filter features a large filter area of porous bronze giving less pressure drop and longer cleaning intervals, a three-stage baffle system for more
• efficient moisture removal, quick bowl removal for cleaning or changing filter elements.
• All micro filters supplied with preassembled Automatic Overnight Drain.
• Sintered bronze elements are permanent and cleanable.
• Light weight aluminum die-cast housing.
• Element range 10 or 40 microns exactly matching filter and air flow needs.
• Corrosion resistant metal bowls.
• 1" NPT
• Bowl Capacity: 29 Oz
• Maximum Pressure: 250 PSI
• Temperature: 40-160� F
• Maximum SCFM: 300
• Micro Filter Metal Bowl 1 In NPT 29 Oz 300 SCFM Max

Milton Industries - 1122-8 - Overview

• 1" national pipe thread
• Maximum pressure of 250 pounds per square inch
• Maximum of 300 standard cubic feet per minute at 100 pounds per square inch
• Install upstream from regulators
• Temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit
• Filter 1" Metal Bowl

Milton Industries - 1122-8 - Additional Information

• Drain Type Auto Overnight
• Includes 40 Micron Bronze Sintered

Milton Industries - 1122-8 - Related Products

• Milton 40 Micron Bronze Sintered Replacement Filter
• Milton 1/2" Metal Filter
• Milton 1/2" Polycarbonate FRL Trio

Milton Industries - 1122-8 - Specifications

Order Part Number	MI1122-8
Item Desc	Micro Filter Metal Bowl 1 In NPT 29 Oz 300 SCFM Max
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1122-8
UPC	309373037386
Product Group Id	MI00
Country of Origin	US
UNSPSC	40161505
Short Description	Filter 1" Metal Bowl
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Removes oil and water condensate
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1" NPT Inlet
PSI range	No
Maximum PSI	250 PSI
SCFM	No
Height	3.75
Width	3.75
Length	7.875
Bowl capacity	29 oz metal bowl capacity
