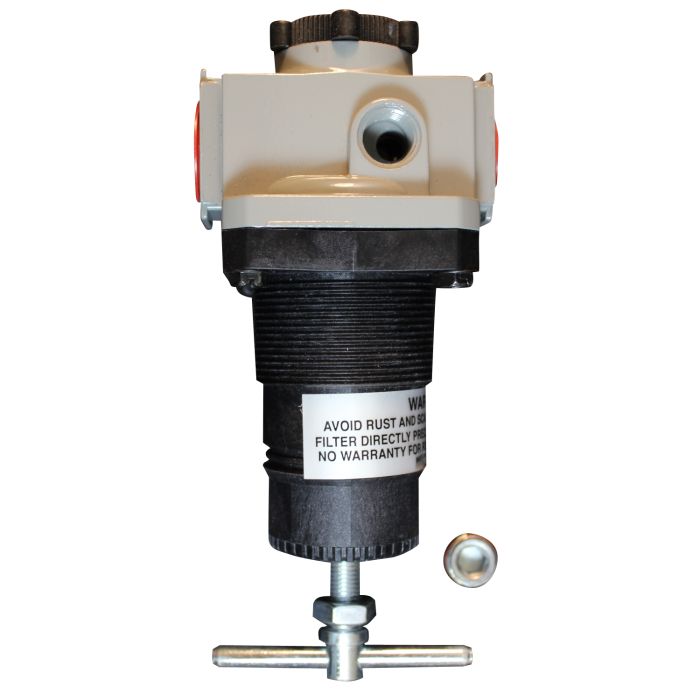

Milton 1115 | Heavy Duty Air Pressure Regulator - 1/2 Inch NPT 100 SCFM Max

Milton's 1/2" NPT Standard Pressure Regulator is the relieving type which offers stable downstream air pressure over a wide range of air flows with accurate control, fast response, and minimal pressure drop. Regulators should always be preceded by a filter to eliminate damage to the unit or inaccurate air flow. The aluminum die cast body comes with a balanced piston, molded rubber seat, Buna-N diaphragm and O rings. This regulator also has two offset 1/4" gauge ports which can serve as two 1/4" supply lines. As a standard pressure regulator, the 1/2" NPT Regulator has a maximum inlet pressure of 250 PSI with a regulated pressure range of 5-125 PSI.

Milton Industries - 1115 - Features

• Milton's 1/2 Inch NPT Standard Pressure Regulator is the relieving type which offers stable downstream air pressure over a wide range of air flows with accurate control, fast response and minimal pressure drop. Regulators should always be preceded by a filter to eliminate damage to the unit or inaccurate air flow
• Made in USA
• Pressure Regulator
• Type Standard, Relieving, Heavy Duty
• Port Size 1/4 Inch Center Mount
• End Connection 1/2 Inch Threaded
• Pressure Gauge Included No
• Body Material Die-Cast Aluminum
• Diaphragm Material Buna-N
• Air Consumption 100 SCFM
• Inlet Pressure 250 PSI
• Temperature Rating 40 to 120 Deg F
• Material Molded Rubber (Seat), Buna-N (O-Ring)
• Inlet pressure: 250 PSI
• Operating temperature: 40° F to 120° F
• Aluminum die-cast body
• Buna-N diaphragm and O rings
• Balanced piston, molded rubber seat
• Offers stable downstream air pressure with accurate control, fast response and minimal pressure drop.Offset 1/4" gage ports can also serve as two 1/4" supply lines, allowing up to three regulated full flow out ports.Gage not included, but available as an accessory.

Milton Industries - 1115 - Overview

• 1/2" national pipe thread
• Maximum inlet pressure of 250 pounds per square inch
• Regulated pressure range of 5-125 PSI
• Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• Regulator 1/2" NPT, 2-125 PSI

Milton Industries - 1115 - Additional Information

• Material Molded Rubber (Seat), Buna-N (O-Ring)

Milton Industries - 1115 - Related Products

• Milton 1/2" NPT High Pressure Regulator
• Milton 3/8" NPT High Pressure Regulator
• Milton 3/8" NPT Metal Coalescing Filter
• Milton 3/4" NPT Midsize Regulator

Milton Industries - 1115 - Specifications

Order Part Number	MI1115
Item Desc	HD Air Pressure Regulator - 1/2 In NPT 100 SCFM Max
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1115
UPC	309371111590
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131603
Short Description	Regulator 1/2" NPT, 2-125 PSI
Number of Items in This Pack	1
Made in USA	Yes
FRL type	Regulator
Key feature	Should also be preceded by a filter to elimanate damage to regulator
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/2" NPT Inlet
PSI range	No
Maximum PSI	250 PSI
SCFM	No
Height	2.6875
Width	2.75
Length	5.25
Bowl capacity	No
