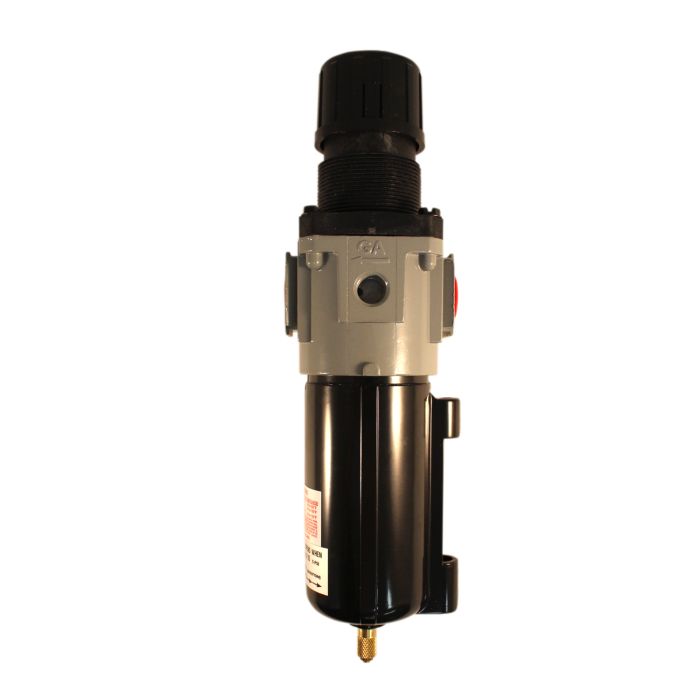

Milton 1110 | Piggyback Filter Regulator - 3/8 Inch NPT

3/8" NPT piggyback duo has the features of the standard regulator, plus the space saving convenience of a combined filter. This piggyback filter regulator comes with a 6 ounce metal bowl and a 40 micron filter. With an automatic overnight drain and relieving regulator, this duo offers a non-rising adjustment and a 3 position knob to lock, adjust or remove. Has a maximum pressure of 200 PSI and 80 SCFM.

Milton Industries - 1110 - Features

• 3/8 Inch NPT piggyback duo has the features of the standard regulator, plus the space saving convenience of a combined filter. This piggyback filter regulator comes with a 6 ounce metal bowl and a 40 micron filter. With an automatic overnight drain and relieving regulator, this duo offers a non-rising adjustment and a 3 position knob to lock, adjust or remove
• Made in USA
• Piggyback Filter Regulator
• Type Standard
• Port Size 1/4 Inch Threaded
• End Connection 3/8 Inch Threaded
• Filter Rating 40 Micron
• Bowl Capacity 5 Ounce
• Pressure Gauge Included No
• Bowl Material Metal
• Air Consumption 80 SCFM
• Inlet Pressure 150 PSI
• Temperature Rating 40 to 125 Deg F
• 40 micron filter element.
• 6 oz corrosion resistant metal bowl.
• Automatic overnight drain.
• Non-rising adjustment.
• 3 position knob lock/adjust/remove.
• Relieving regulator.
• Maximum inlet pressure 200 PSI.
• Outlet pressure range: 2-125 PSI.
• Temperature range: 40ø F tp 160ø.
• Maximum SCFM: 50
• Piggyback duo has the features of the standard regulator, plusthe space saving convenience of a combined filter. Gage notincluded, but available as an accessory.

Milton Industries - 1110 - Overview

• 3/8" national pipe thread
• Maximum of 200 pounds per square inch
• Maximum of 80 standard cubic feet per minute
• Operating temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit

Milton Industries - 1110 - Related Products

• Milton 3/8" NPT Metal Piggyback Filter Regulator
• Milton 3/8" NPT Deluxe Metal FRL Trio
• Milton 1/2" NPT Metal Lubricator

Milton Industries - 1110 - Specifications

Order Part Number	MI1110
Item Desc	Piggyback Filter - Regulator - 3/8" NPT
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1110
UPC	309373036150
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
UNSPSC	27131603
Short Description	3/8" FR Piggyback
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Space saver with combined filter and regulator
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	3/8" NPT Inlet - 6 oz. Metal Bowl
PSI range	No
Maximum PSI	200 PSI
SCFM	No
Height	2.6875
Width	2.75
Length	9.75
Micron filter size	40 micron filter
Bowl capacity	No
