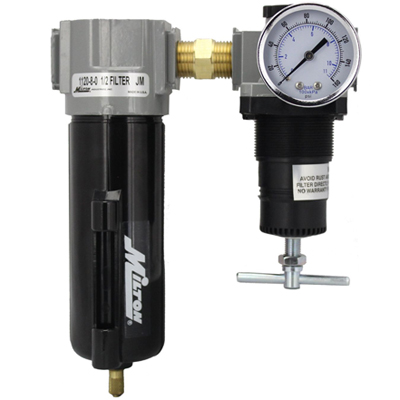

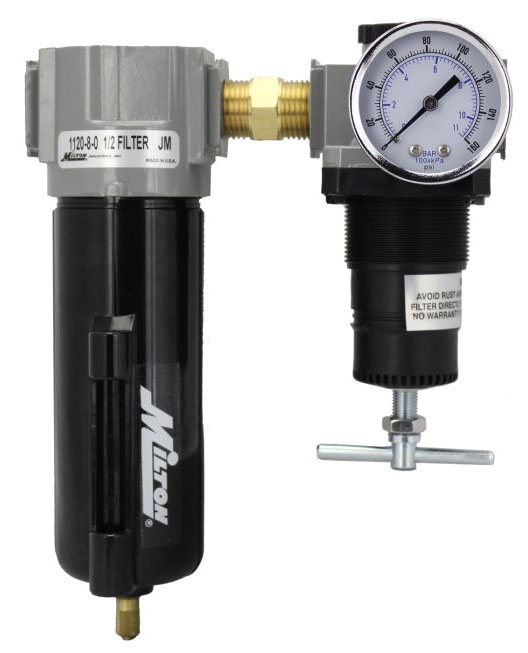

Milton 1108 | Deluxe Air Pressure Filter Regulator Duo - 1/2 Inch NPT 100 SCFM Max

1/2" NPT deluxe FR duo combines the filter and regulator with brass fittings. The filter has an automatic overnight drain and the regulator is the relieving type. This pre-assembled unit has metal bowls and includes a gage. Offers a maximum pressure of 250 PSI and 100 SCFM. 40 micron filter element. Replacement bronze filter element: P1120-17

Milton Industries - 1108 - Features

• Factory assembled
• Automatic overnight drains
• Relieving regulator
• Made in USA
• Deluxe Filter/Regulator Duo
• Type Pre-Assembled
• Port Size 1/4 Inch Threaded
• End Connection 1/2 Inch Threaded
• Filter Rating 40 Micron
• Bowl Capacity 9 Ounce
• Pressure Gauge Included Yes
• Bowl Material Metal
• Air Consumption 100 SCFM
• Inlet Pressure 250 PSI
• Temperature Rating 40 to 150 Deg F
• Factory assembled.
• Automatic overnight drains.
• Relieving regulator.
• Complete with gage #1191.
• 40 micron filter element.
• Outlet pressure range: 2-125 PSI.
• Temperature range: 40� F to 150� F.
• Deluxe Air Pressure Filter-Regulator Due - 1/2 In NPT 100 SCFM Max

Milton Industries - 1108 - Overview

• 1/2" national pipe thread
• Maximum of 250 pounds per square inch
• Maximum of 100 standard cubic feet per minute
• Operating temperature range of 40 degrees Fahrenheit to 150 degrees Fahrenheit
• F-R Duo 1/2" NPT

Milton Industries - 1108 - Related Products

• Milton Compressor Pressure Switch
• Milton 3/8" NPT Deluxe Polycarbonate FR Duo
• Milton 3/8" NPT Polycarbonate FRL Micro Filter
• Milton 3/8" NPT Metal Lubricator
• Milton 1" NPT Midsize FRL Regulator

Milton Industries - 1108 - Specifications

Order Part Number	MI1108
Item Desc	Deluxe Air Pressure Filter-Regulator Due - 1/2 In NPT 100 SCFM Max
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1108
UPC	309373035924
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
UNSPSC	27131603
Short Description	F-R Duo 1/2" NPT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Combines filter and regulator with brass fittings
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	No
PSI range	No
Maximum PSI	250 PSI
SCFM	No
Height	3.3125
Width	7
Length	6.75
Micron filter size	40 micron filter
Bowl capacity	No
