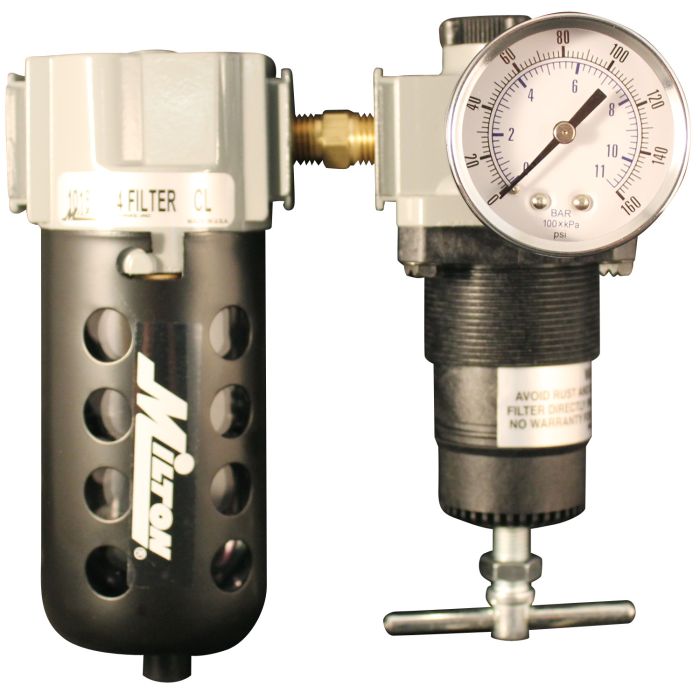

Milton 1106 | Filter and Regulator Duo - Deluxe 1/4 Inch NPT

1/4" NPT deluxe FR duo combines the filter and regulator with brass fittings. The filter has an automatic overnight drain and the regulator is the relieving type. This pre-assembled unit has polycarbonate bowls with metal bowl guards and includes a gage. Offers a maximum pressure of 150 PSI and 48 SCFM. 40 micron filter element.

Milton Industries - 1106 - Features

• Factory assembled
• Automatic overnight drains
• Relieving regulator
• Complete with gage #1191
• 40 micron filter element
• Outlet pressure range: 2-125 PSI
• Temperature range: 40° F to 150° F
• 1/4" NPT Size
• Poly with Metal Guard Bowl
• 48 Max SCFM
• 150 Max PSI
• Filter - Regulator Duo - Deluxe 1/4 NPT

Milton Industries - 1106 - Overview

• 1/4" national pipe thread
• Maximum of 150 pounds per square inch
• Maximum of 48 standard cubic feet per minute
• Operating temperature range of 40 degrees Fahrenheit to 150 degrees Fahrenheit

Milton Industries - 1106 - Related Products

• Milton 1/2" Polycarbonate FRL Trio
• Milton 1/4" NPT Deluxe Metal FRL Trio
• Milton 1/4" MNPT Commercial Slip Sleeve
• Milton 1/4" NPT Metal Coalescing Filter

Milton Industries - 1106 - Specifications

Order Part Number	MI1106
Item Desc	Filter - Regulator Duo - Deluxe 1/4 NPT
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
MS Bin Code	EG013
Default Selling Unit	EA
Status	Y
Short Description	F-R Duo 1/4" NPT
Number of Items in This Pack	1
UPC Code	30937303578
Made in USA	Yes
FRL type	No
Key feature	Combines filter and regulator with brass fittings
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	No
PSI range	No
Maximum PSI	150 PSI
SCFM	No
Height	2.75
Width	6.25
Length	6.375
Micron filter size	40 micron filter
Bowl capacity	No
