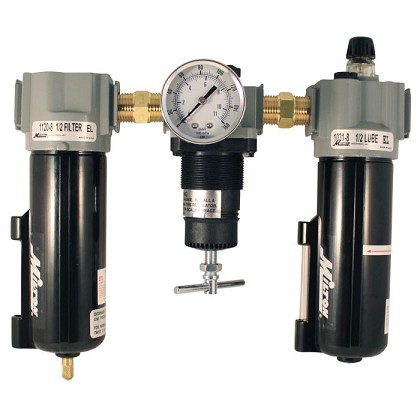

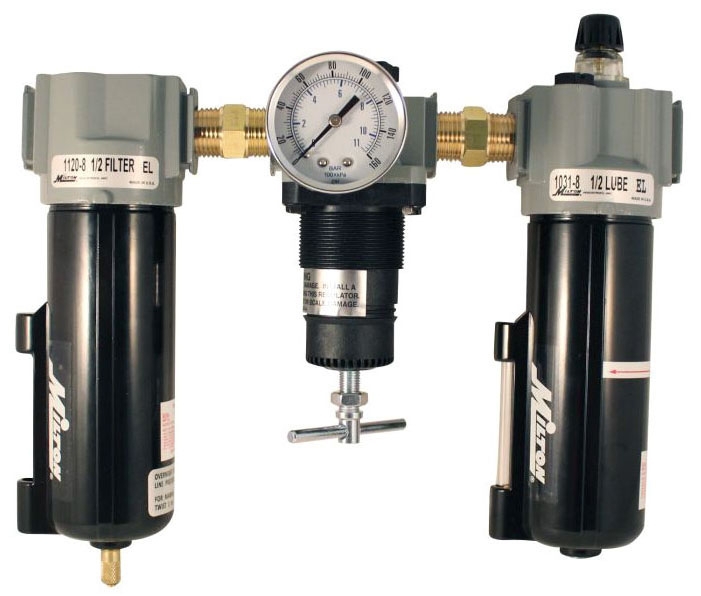

Milton 1102 | Deluxe Filter Regulator Lubricator Trios - 1/2 Inch NPT Metal Bowl

1/2" NPT Deluxe FRL trio is a filter, regulator and lubricator all in one. The filter comes with an automatic overnight drain which will operate whenever liquid accumulates in the filter bowl. The regulator is the relieving type which will exhaust air downstream when pressure rises above the maximum preset pressure. The drip type lubricator allows for precise setting. This pre-assembled unit has polycarbonate bowls with metal bowl guards and includes a gage. Offers a maximum of 250 PSI and 100 SCFM. 40 micron filter element. Replacement bronze filter element: P1120-17

Milton Industries - 1102 - Features

• Relieving regulator, drip style lubricator
• Deluxe FRL Trio
• End Connection 1/2 Inch Threaded
• Filter Bowl Capacity 9 Ounce
• Filter Rating 40 Micron
• Filter Bowl Material Metal
• Regulating Pressure 250 PSI
• Temperature Rating 40 to 150 Deg F
• Flow Rate 100 SCFM
• Outlet Pressure 2 to 125 PSI
• Includes Gauge, Automatic Overnight Drain
• Filter has automatic overnight drain
• Relieving regulator
• Drop style lubricator
• Complete with gage #1191
• 40 micron filter element
• Outlet pressure range: 2-125 PSI
• Temperature range: 40° F to 150° F
• Max PSI: 250
• Max SCFM: 100
• Deluxe F-R-L Trios - 1/2" NPT Metal Bowl

Milton Industries - 1102 - Overview

• 1/2" national pipe thread
• Maximum of 250 pounds per square inch
• Maximum of 100 standard cubic feet per minute
• Operating temperature range of 40 degrees Fahrenheit to 150 degrees Fahrenheit
• All Milton FRL components are 100% tested before leaving the factory
• F-R-L TRIO 1/2" NPT

Milton Industries - 1102 - Additional Information

• Outlet Pressure 2 to 125 PSI
• Includes Gauge, Automatic Overnight Drain

Milton Industries - 1102 - Related Products

• Milton 1/2" NPT Deluxe Metal FRL Trio
• Milton 3/8" NPT Deluxe Metal FRL Trio
• Milton 1" NPT High Pressure Regulator
• Milton Lightweight Pistol Grip Blow Gun, 1/4" NPT, 90 PSI, 13 SCFM (S-163)

Milton Industries - 1102 - Specifications

Order Part Number	MI1102
Item Desc	Deluxe F-R-L Trios - 1/2" NPT Metal Bowl
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1102
UPC	309373035610
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	F-R-L TRIO 1/2" NPT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Material Type	No
Display on Bloguns CMS Page	No
NPT thread size	No
PSI range	No
Maximum PSI	No
SCFM	No
Height	2.75
Width	8.875
Length	7.5
Bowl capacity	No
