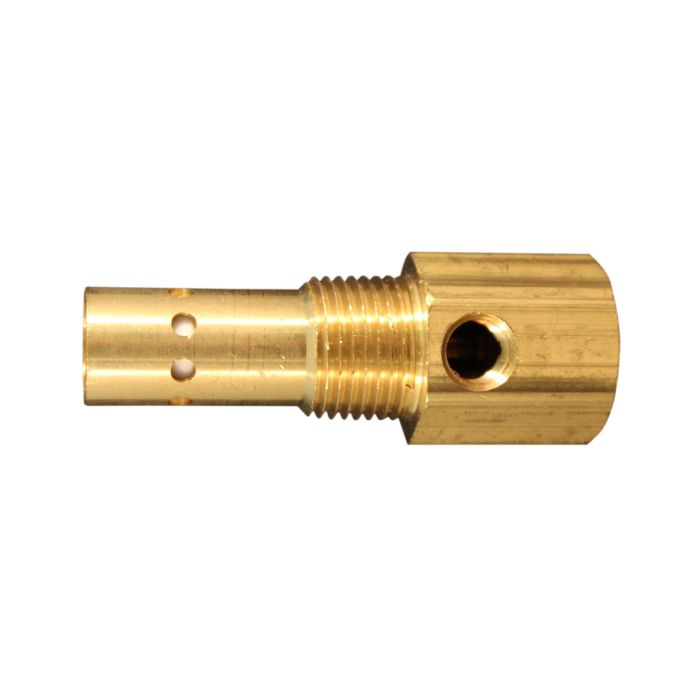

Milton 1092-2 | Compressor Tank Check Valve 3/4 Inch Female

3/4" MNPT x 3/4" FNPT tank check valves are used to keep air volume and pressure from escaping back into compressor heads while not operating. The 1/8" FNPT side port is designed for pressure switch application. Maximum pressure of 450 PSI and air flow of 30 SCFM.

Milton Industries - 1092-2 - Features

• Maximum working pressure: 450 PSI
• 3/4" Male NPT Tank Bung Hole Size
• Compressor Air Line Size: 3/4" NPT Female
• 30 SCFM
• Used in compressor tanks to prevent air volume and pressurefrom escaping back into compressor heads while the compressoris not operating. Brass body with teflon poppet. 1/8” femaleNPT side port for pressure switch application. 3/4” valves includea built-in dashpot for improved poppet life.

Milton Industries - 1092-2 - Overview

• 3/4" male national pipe thread x 3/4" female national pipe thread
• 1/8" female national pipe thread side port
• Maximum working pressure of 450 pounds per square inch
• Maximum 30 standard cubic feet per minute
• Maximum temperature of 400 degrees Fahrenheit

Milton Industries - 1092-2 - Related Products

• Milton Pistol Grease Gun - High Pressure and High Volume
• Milton 1/4" FNPT Female M-STYLE KWIK-CHANGEÂ Coupler (Pack of 10)
• Milton 25' Rekoil Hose Safety Blow Gun Kit, 1/4" NPT, 200 PSI

Milton Industries - 1092-2 - Specifications

Order Part Number	MI1092-2
Item Desc	Compressor Tank Check Valve 3/4" Female
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
MS Bin Code	EG014
Default Selling Unit	EA
Status	Y
Short Description	TANK CHECK VALVE 3/4NPT X 3/4F
Number of Items in This Pack	1
UPC Code	30937303370
Made in USA	Yes
Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
SCFM	No
Key feature	Keeps air volume and pressure from escaping back into compressor heads while not operating
Maximum PSI	450 PSI
NPT thread size	No
Chuck Style	No
Material Type	No
Height	1.125
Width	1.125
Length	3.5
