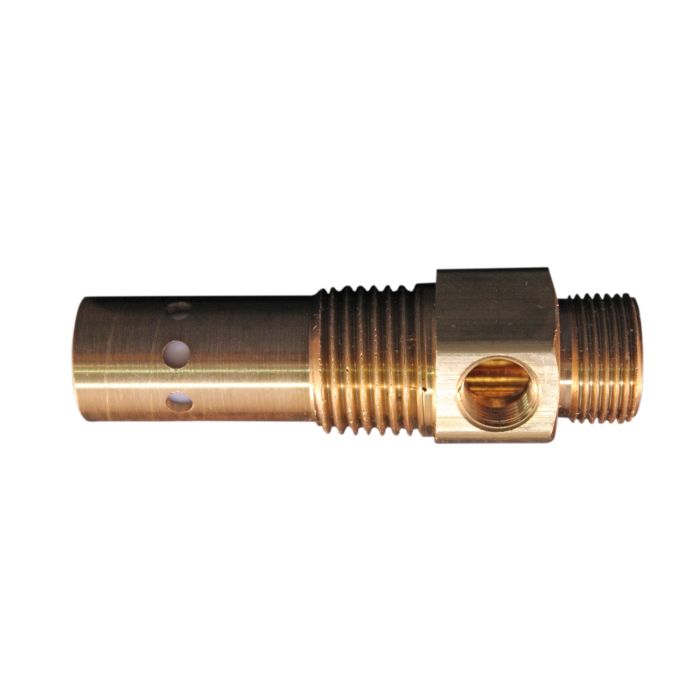

Milton 1091-2 | Compressor Tank Check Valve 3/4 Inch Male Tube Compression

3/4" MNPT tank check valves are used to keep air volume and pressure from escaping back into compressor heads while not operating. The 1/8" FNPT side port is designed for pressure switch application. Maximum pressure of 450 PSI and air flow of 30 SCFM.

Milton Industries - 1091-2 - Features

• Maximum working pressure: 450 PSI
• 3/4" Male NPT Tank Bung Hole Size
• Compressor Air Line Size: 3/4" Male Tube Compression
• 30 SCFM
• Used in compressor tanks to prevent air volume and pressurefrom escaping back into compressor heads while the compressoris not operating. Brass body with teflon poppet. 1/8” femaleNPT side port for pressure switch application. 3/4” valves includea built-in dashpot for improved poppet life.

Milton Industries - 1091-2 - Overview

• 3/4" male national pipe thread
• 1/8" female national pipe thread side port
• Maximum working pressure of 450 pounds per square inch
• Maximum 30 standard cubic feet per minute
• Maximum temperature of 400 degrees Fahrenheit

Milton Industries - 1091-2 - Related Products

• Milton 1/4" FNPT Female M-STYLE KWIK-CHANGEÂ Coupler (Pack of 10)
• Milton S-3100 Variable Stroke Lever Grease Gun - 10,000 PSI

Milton Industries - 1091-2 - Specifications

Order Part Number	MI1091-2
Item Desc	Compressor Tank Check Valve 3/4" Male Tube Compression
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
MS Bin Code	EG014
Default Selling Unit	EA
Status	Y
Short Description	TANK CHECK VALVE 3/4 NPT TUBE
Number of Items in This Pack	1
UPC Code	30937303356
Made in USA	Yes
Type	No
Application	The 1/8" FNPT side port is designed for pressure switch application
Display on Bloguns CMS Page	No
SCFM	No
Maximum PSI	450 PSI
NPT thread size	3/4" Male NPT
Chuck Style	No
Material Type	No
Height	1.125
Width	1.125
Length	3.5
