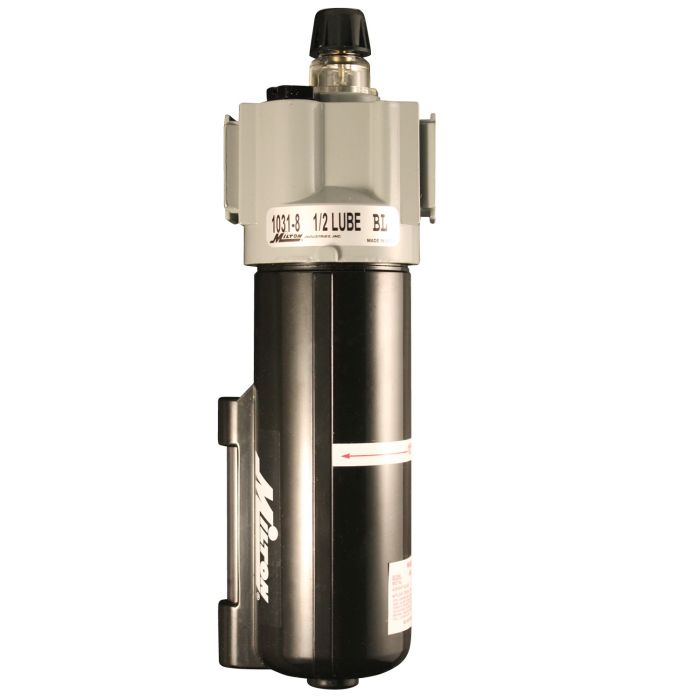

Milton 1031-8 | Precision Lubricator 1/2 Inch NPT with Sight Glass 9 Oz, Metal Bowl

This 1/2" NPT lubricator with metal bowl is the drip style, which allows precise settings for trouble free protection. The adjusting knob can be removed in order to prevent tampering and the sight glass dome allows observation for instant drip rate adjustment. The 9 ounce metal bowl may be filled without shutting down line pressure, delivering oil at an air flow as low as 2 SCFM. Lubricator is designed to provide oil to air tools that require oil for operation. Maximum pressure of 200 PSI and 142 SCFM.

Milton Industries - 1031-8 - Features

• Great way to provide oil to air tools that require oil for operation
• Made in USA
• Precision Lubricator
• End Connection 1/2 Inch Threaded
• Bowl Capacity 9 Ounce
• Bowl Material Metal
• Air Consumption 142 SCFM
• Pressure Rating 200 PSI
• Temperature Rating 40 to 120 Deg F
• Includes Sight Glass
• Ideal for the customer who wants trouble-free protection and tamper proof reliability.
• Drop style allows precise setting and then removal of adjustment knob.
• Perfect for lubrication of air motors, tools, valves or where low air flow is encountered or where extremely fine adjustments are necessary.
• Sight glass dome on drop top allows observation for instant drip rate adjustment.
• Tamper proof.
• Lubricator may be filled without shutting down line pressure.
• Oil supply tube check valve guarantees instant start-up lubrication.
• Low pressure drop at full air flow.
• Oil delivered at an air flow as low as 2 SCFM.
• Drop type.
• NPT size: 1/2"
• Bowl Capacity: 9 oz.
• Maximum pressure: 200 PSI
• Temperature: 40 to 160 F
• Maximum SCFM 142
• Precision Lubricator 1/2 In NPT w/ Sight Glass 9 Oz Metal Bowl

Milton Industries - 1031-8 - Overview

• 1/2" national pipe thread
• Maximum pressure of 200 pounds per square inch
• Maximum of 142 standard cubic feet per minute at 100 pounds per square inch
• Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• 9 ounce metal bowl
• All Milton FRL components are 100% tested before leaving the factory
• 1/2" NPT Metal Bowl, 9 oz.

Milton Industries - 1031-8 - Additional Information

• Includes Sight Glass

Milton Industries - 1031-8 - Related Products

• Milton 3/8" NPT Metal Lubricator
• Milton 1/2" NPT Metal Lubricator
• Milton Plastic Filter and Lubricator Replacement Bowl
• Milton 1/4" NPT In-Line Lubricator

Milton Industries - 1031-8 - Specifications

Order Part Number	MI1031-8
Item Desc	Precision Lubricator 1/2 In NPT w/ Sight Glass 9 Oz Metal Bowl
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1031-8
UPC	309373031100
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131604
Short Description	1/2" NPT Metal Bowl, 9 oz.
Number of Items in This Pack	1
Made in USA	Yes
FRL type	Lubricator
Key feature	Great way to provide oil to air tools that require oil for operation
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/2" NPT Inlet
PSI range	No
Maximum PSI	200 PSI
SCFM	No
Height	2.6875
Width	2.75
Length	9
Bowl capacity	9 oz metal bowl capacity with sight glass
