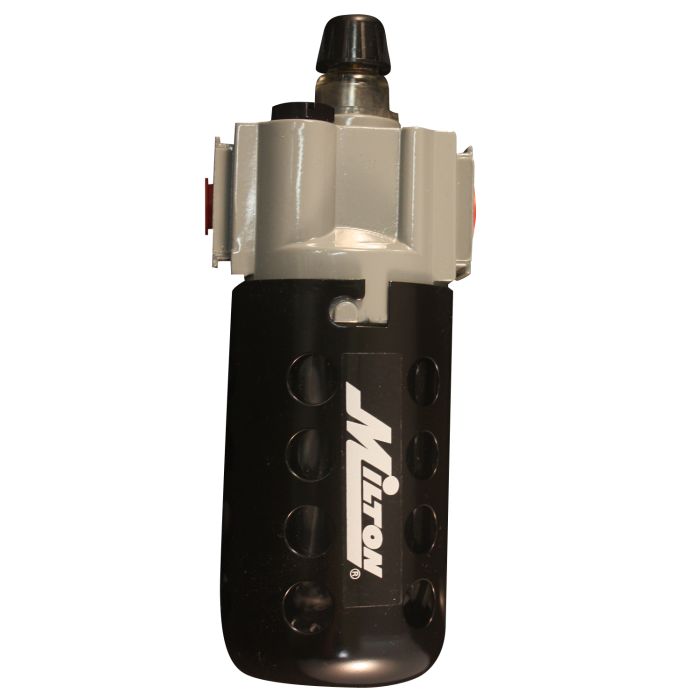

Milton 1028 | Precision Lubricator 1/4 Inch NPT with 5 Oz, Polycarbonate Bowl

This 1/4" NPT precision lubricator with polycarbonate bowl is the drip style, which allows precise settings for trouble free protection. The adjusting knob can be removed in order to prevent tampering and the sight glass dome allows observation for instant drip rate adjustment. The 5 ounce polycarbonate bowl with metal bowl guard may be filled without shutting down line pressure, delivering oil at an air flow as low as 2 SCFM. Lubricator is designed to provide oil to air tools that require lubrication for operation. Maximum pressure of 150 PSI and 16 SCFM.

Milton Industries - 1028 - Features

• Great way to provide oil to air tools that require oil for operation
• Made in USA
• Precision Lubricator
• End Connection 1/4 Inch Threaded
• Bowl Capacity 5 Ounce
• Bowl Material Polycarbonate
• Air Consumption 16 SCFM
• Pressure Rating 150 PSI
• Temperature Rating 40 to 125 Deg F
• Includes Bowl Guard
• Ideal for the customer who wants trouble-free protection and tamper proof reliability.
• Drop type style allows precise setting and then removal of adjustment knob.
• Perfect for lubrication of air motors, tools, valves or where low air flow is encountered or where extremely fine adjustments are necessary.
• Tamper proof.
• Lubricator may be filled without shutting down line pressure.
• Oil supply tube check valve guarantees instant start-up lubrication.
• Low pressure drop at full air flow.
• Oil delivered at an air flow as low as 2 SCFM.
• Drop type.
• NPT size: 1/4"
• Bowl Capacity: 5 oz.
• Maximum pressure: 150 PSI
• Temperature: 40 to 125 F
• Maximum SCFM 16
• Precision Lubricator 1/4 In NPT w/ 5 Oz Polycarbonate Bowl

Milton Industries - 1028 - Overview

• 1/4" national pipe thread
• Maximum pressure of 150 pounds per square inch
• Maximum of 16 standard cubic feet per minute at 100 pounds per square inch
• Operating temperature range of 40 degrees Fahrenheit to 125 degrees Fahrenheit
• Not for use with synthetic lubricants

Milton Industries - 1028 - Additional Information

• Includes Bowl Guard

Milton Industries - 1028 - Related Products

• Milton Plastic Filter and Lubricator Replacement Bowl
• Milton 1/4" NPT Metal Lubricator
• Milton 1" NPT High Pressure Regulator
• Milton Metal Filter Replacement Bowl
• Milton Compressor Pressure Switch

Milton Industries - 1028 - Specifications

Order Part Number	MI1028
Item Desc	Precision Lubricator 1/4 In NPT w/ 5 Oz Polycarbonate Bowl
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1028
UPC	309371102826
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131604
Short Description	Lubricator 1/4" NPT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	Lubricator
Key feature	Great way to provide oil to air tools that require oil for operation
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/4" NPT Inlet
PSI range	No
Maximum PSI	150 PSI
SCFM	No
Height	2.6875
Width	2.75
Length	7
Bowl capacity	5 oz polycarbonate bowl capacity with metal bowl guard
