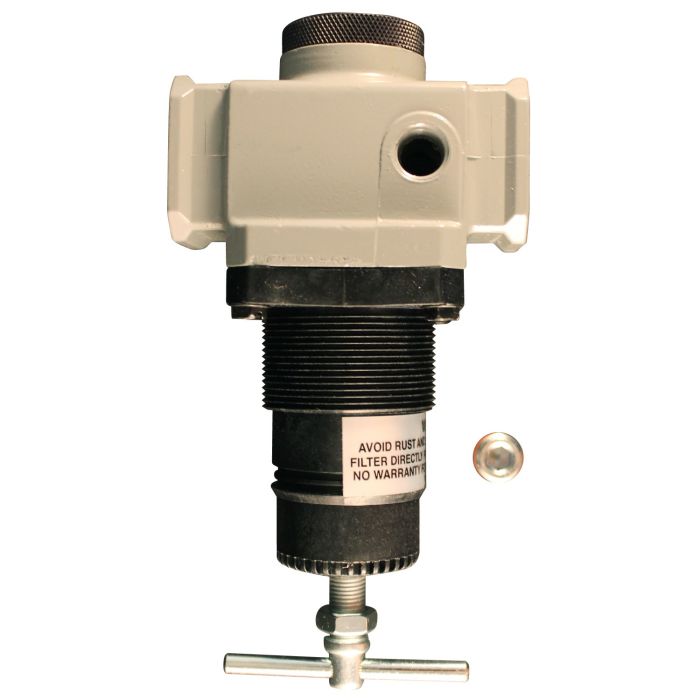

Milton 1026 | Regulator - 3/4 Inch Midsize NPT

This 3/4" NPT midsize regulator is the relieving type, offering stable downstream air pressure over a wide range of air flows for accurate control, fast response and minimal pressure drop. Offset gage ports can also serve as two 1/4" NPT supply lines. Made up of an aluminum die cast body, balanced piston and molded rubber set, this regulator should be proceeded by a filter to eliminate damage. Maximum of 250 PSI and 220 SCFM.

Milton Industries - 1026 - Features

• This 3/4 Inch NPT midsize regulator is the relieving type, offering stable downstream air pressure over a wide range of air flows for accurate control, fast response and minimal pressure drop
• Made in USA
• Precision Regulator
• Type Standard, Midsize
• Port Size 1/4 Inch Center Mount
• End Connection 3/4 Inch Threaded
• Body Material Die-Cast Aluminum
• Diaphragm Material Buna-N
• Air Consumption 220 SCFM
• Inlet Pressure 250 PSI
• Temperature Rating 40 to 120 Deg F
• Inlet pressure: 250 PSI
• Operating temperature: 40° F to 120° F
• Aluminum die-cast body
• Buna-N diaphragm and O rings
• Balanced piston, molded rubber seat
• The Milton midsize RELIEVING TYPE regulatorsoffer stable downstream air pressure over a wide range of airflows with accurate control, fast response and minimal pressuredrop. Offset 1/4” gage ports can also serve as two 1/4” supplylines, allowing up to three regulated full flow out ports. Gage notincluded, but available as an accessory.

Milton Industries - 1026 - Overview

• 3/4" national pipe thread
• Maximum inlet pressure of 250 pounds per square inch
• Maximum of 220 standard cubic feet per minute at 100 pounds per square inch
• Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• Buna-N diaphragm

Milton Industries - 1026 - Related Products

• Milton Compressor Pressure Switch
• Milton 1/2" NPT Metal Micro Filter
• Milton 3/4" NPT High Pressure Regulator

Milton Industries - 1026 - Specifications

Order Part Number	MI1026
Item Desc	Regulator - 3/4" Midsize NPT
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1026
UPC	309373071182
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
UNSPSC	27131603
Short Description	Regulator, Midsize 3/4" NPT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	Regulator
Key feature	Should also be preceded by a filter to eliminate damage to regulator
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	3/4" NPT Inlet
PSI range	No
Maximum PSI	250 PSI
SCFM	No
Height	3.75
Width	3.75
Length	7.75
Bowl capacity	No
