Milton 1026-8 | Regulator - High Pressure, 3/4 Inch Midsize NPT

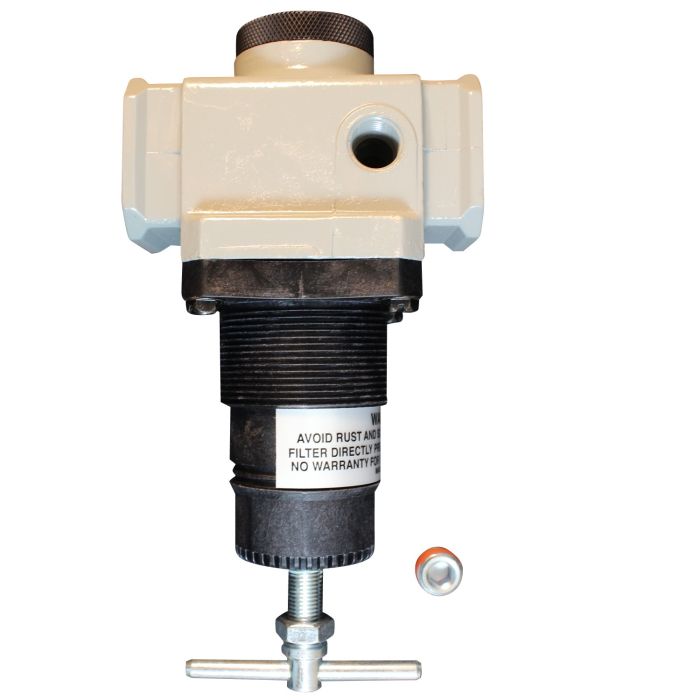

This 3/4" NPT midsize high pressure heavy duty regulator is the relieving type, offering stable downstream air pressure over a wide range of air flows for accurate control, fast response and minimal pressure drop. Offset gage ports can also serve as two 1/4" NPT supply lines. Made up of an aluminum die cast body, balanced piston and molded rubber seat, this regulator should be proceeded by a filter to eliminate damage. Maximum of 250 PSI and 220 SCFM. Includes one plug for gage port.

Milton Industries - 1026-8 - Features

• Should also be preceded by a filter to eliminate damage to regulator
• Made in USA
• Precision Regulator
• Type High Pressure, Relieving, Heavy Duty
• Port Size 1/4 Inch Center Mount
• End Connection 3/4 Inch Threaded
• Pressure Gauge Included No
• Body Material Die-Cast Aluminum
• Diaphragm Material Buna-N
• Air Consumption 220 SCFM
• Inlet Pressure 250 PSI
• Temperature Rating 40 to 120 Deg F
• Inlet pressure: 250 PSI
• Operating temperature: 40° F to 120° F
• Aluminum die-cast body
• Buna-N diaphragm and O rings
• Balanced piston, molded rubber seat
• The Milton heavy duty RELIEVING TYPE regulatorsoffer stable downstream air pressure over a wide range of airflows with accurate control, fast response and minimal pressuredrop. Offset 1/4” gage ports can also serve as two 1/4” supplylines, allowing up to three regulated full flow out ports. Gage notincluded, but available as an accessory.

Milton Industries - 1026-8 - Overview

• 3/4" national pipe thread
• Maximum inlet pressure of 250 pounds per square inch
• Maximum of 220 standard cubic feet per minute at 100 pounds per square inch
• Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• Required gage not included
• Buna-N diaphragm

Milton Industries - 1026-8 - Related Products

• Milton 3/4" & 1" Air Line Mounting Bracket
• Milton 1/4" NPT Polycarbonate Micro Filter
• Milton 1/4" NPT Metal Mini Micro Filter
• Milton 3/4" NPT Midsize Regulator
• Milton Metal Filter Replacement Bowl

Milton Industries - 1026-8 - Specifications

Order Part Number	MI1026-8
Item Desc	Regulator - HI Pressure, 3/4" Midsize NPT
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1026-8
UPC	309373071250
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
UNSPSC	27131603
Short Description	Regulator 3/4" NPT, 1050 PSI
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Should also be preceded by a filter to eliminate damage to regulator
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	3/4" NPT Inlet
PSI range	No
Maximum PSI	250 PSI
SCFM	No
Height	2.375
Width	3.5
Length	6.75
Bowl capacity	No
