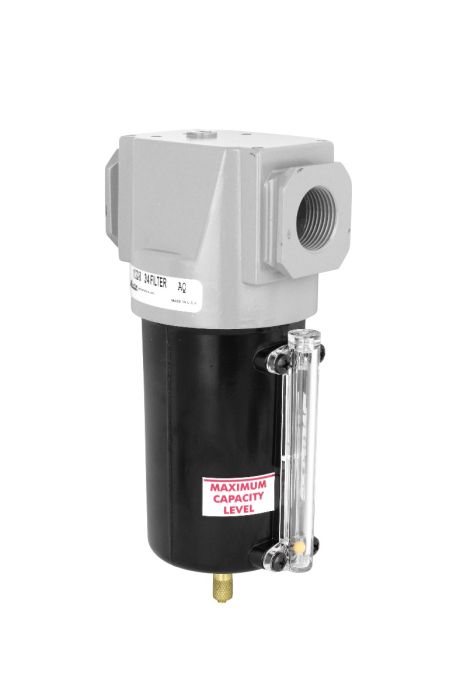

Milton 1022-8 | Micro Filter with 3/4 Inch NPT Metal Bowl

This 3/4" NPT Milton micro filter is supplied with pre-assembled automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows fewer pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. The corrosion resistant metal bowl has a capacity of 10 ounces. Maximum of 250 PSI and 245 SCFM.

Milton Industries - 1022-8 - Features

• This 3/4 Inch NPT Milton micro filter is supplied with pre-assembled automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows fewer pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life
• Made in USA
• Micro Filter
• Type Heavy Duty
• End Connection 3/4 Inch Threaded
• Size 7.625 Inch Length x 3.75 Inch Width x 3.75 Inch Height
• Filter Rating 40 Micron
• Bowl Capacity 10 Ounce
• Bowl Material Metal
• Air Consumption 230 SCFM
• Pressure Rating 250 PSI
• Temperature Rating 40 to 160 Deg F
• Drain Type Auto Overnight
• Includes 40 Micron Bronze Sintered
• All micro filters supplied with preassembled Automatic OVERNIGHT DRAIN
• Porous bronze 40 micron filter element allows less pressure drop and longer cleaning intervals
• Safety metal bowl guards
• Metal bowls only on 3/4” and 1” models
• 3 stage baffle system for exceptional moisture removal.
• Sintered bronze elements are permanent and cleanable
• Light weight aluminum die-cast housing
• Element range 10 or 40 microns exactly matching filter and air flow needs
• Corrosion resistant metal bowls
• Includes sight glass for visual check of condensation collection
• 3/4” NPT Size
• 10 oz Bowl Capacity
• 250 PSI Max Pressure
• 40-160° F
• 230 Max SCFM
• Mico Filter with 3/4" NPT Metal Bowl

Milton Industries - 1022-8 - Overview

• 3/4" national pipe thread
• Maximum pressure of 250 pounds per square inch
• Maximum of 230 standard cubic feet per minute at 100 pounds per square inch
• Install upstream from regulators
• Temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit
• Includes sight glass for visual check of condensation collection
• Filter, 3/4" NPT

Milton Industries - 1022-8 - Additional Information

• Drain Type Auto Overnight
• Includes 40 Micron Bronze Sintered

Milton Industries - 1022-8 - Related Products

• Milton Mini Regulator Mounting Bracket
• Milton 3/8" NPT Deluxe Metal FRL Trio
• Milton Plastic Filter and Lubricator Replacement Bowl
• Milton 1/4" NPT Metal Filter
• Milton 1" NPT Metal FRL Trio

Milton Industries - 1022-8 - Specifications

Order Part Number	MI1022-8
Item Desc	Mico Filter with 3/4" NPT Metal Bowl
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1022-8
UPC	309373070956
Product Group Id	MI00
Country of Origin	US
UNSPSC	40161505
Short Description	Filter, 3/4" NPT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Removes oil and water condensate
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	3/4" NPT Inlet
PSI range	No
Maximum PSI	250 PSI
SCFM	No
Height	3.75
Width	3.75
Length	7.625
Bowl capacity	10 oz metal bowl capacity
