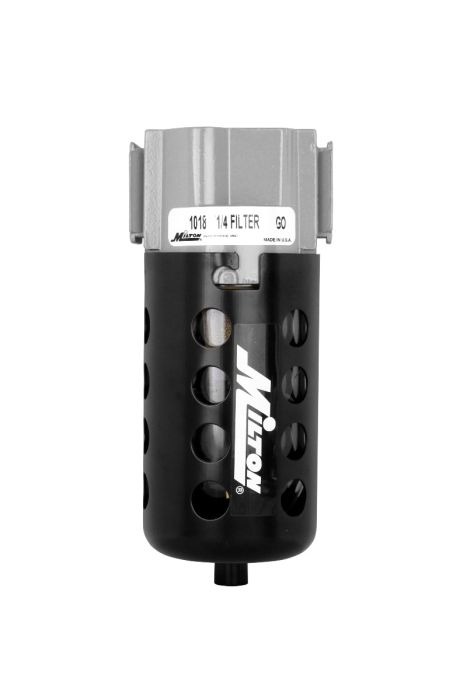

Milton 1018 | Micro Filter Polycarbonate Bowl 1/4 Inch NPT 48 SCFM

This 1/4" NPT Milton micro filter is supplied with a pre-assembled internal automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. This polycarbonate bowl has a capacity of 5 ounces and is protected by a safety metal bowl guard. Maximum of 150 PSI and 48 SCFM.

Milton Industries - 1018 - Features

• This 1/4 Inch NPT Milton micro filter is supplied with a pre-assembled internal automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life
• Made in USA
• Micro Filter
• End Connection 1/4 Inch Threaded
• Size 6.25 Inch Length x 2.75 Inch Width x 2.6875 Inch Height
• Filter Rating 20 Micron
• Bowl Capacity 5 Ounce
• Bowl Material Polycarbonate
• Air Consumption 48 SCFM
• Pressure Rating 150 PSI
• Temperature Rating 40 to 125 Deg F
• Drain Type Auto Overnight
• Includes 40 Micron Bronze Sintered, Metal Bowl Guard
• Designed for the efficient removal of harmful foreign matter such as condensed moisture, pipe scale, dirt and rust from the air stream.
• The Milton micro filter features a large filter area of porous bronze giving less pressure drop and longer cleaning intervals, a three-stage baffle system for more efficient moisture removal, quick bowl removal for cleaning or changing filter elements.
• All micro filters supplied with preassembled Automatic Overnight Drain.
• Sintered bronze elements are permanent and cleanable.
• Light weight aluminum die-cast housing.
• Element range 10 or 40 microns exactly matching filter and air flow needs.
• Micro Filter Polycarbonate Bowl 1/4 In NPT 48 SCFM

Milton Industries - 1018 - Overview

• 1/4" national pipe thread
• Maximum pressure of 150 pounds per square inch
• Maximum of 48 standard cubic feet per minute at 100 pounds per square inch
• Install upstream from regulators
• Sintered bronze elements are permanent and cleanable
• Can be set up as a modular unit as well
• Filter 1/4" NPT

Milton Industries - 1018 - Additional Information

• Drain Type Auto Overnight
• Includes 40 Micron Bronze Sintered, Metal Bowl Guard

Milton Industries - 1018 - Related Products

• Milton Metal Filter Replacement Bowl
• Milton Polycarbonate Filter and Lubricator Replacement Bowl
• Milton 1/4" NPT Metal Micro Filter

Milton Industries - 1018 - Specifications

Order Part Number	MI1018
Item Desc	Micro Filter Polycarbonate Bowl 1/4 In NPT 48 SCFM
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1018
UPC	309371101836
Product Group Id	MI00
Country of Origin	US
UNSPSC	40161505
Short Description	Filter 1/4" NPT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Removes oil and water condensate
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/4" NPT Inlet
PSI range	No
Maximum PSI	150 PSI
SCFM	No
Height	2.6875
Width	2.75
Length	6.25
Micron filter size	40 micron bronze filter
Bowl capacity	5 oz polycarbonate bowl capacity
