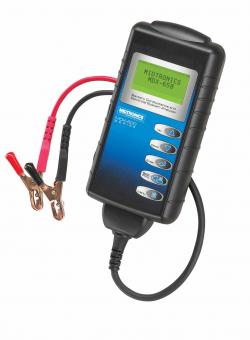

Midtronics MDX-650 | Battery and Electrical System Analyzer

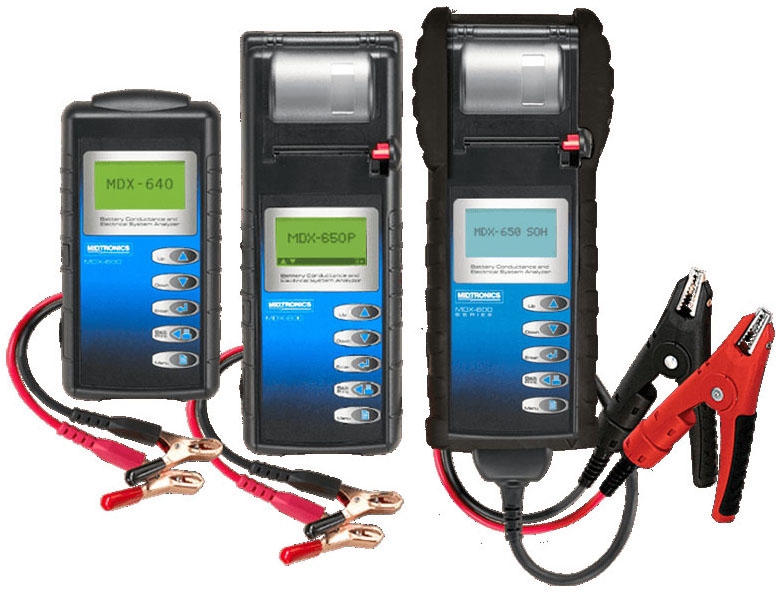

The MDX-600 Battery and Electrical System Analyzer Series with conductance technology makes battery testing safe, fast, and simple. Three models with a range of capabilities offer technology to meet your service needs, from basic battery testing to full battery and electrical systems diagnostics for advanced battery types.

Midtronics - MDX-650 - Features

• Improves customer service by reducing wait times
• increases sales by proactively testing batteries and electrical systems
• Increases customer satisfaction by identifying potential problems before they occur

Midtronics - MDX-650 - Additional Information

• Battery and Electrical System Analyzer
• Item Battery and Electrical System Analyzer
• Display Type 5-Line Text/Graphical Backlit Display
• Operating Temperature Rating 0 to 50 Deg C
• Voltage Rating 1 to 30 Volt DC
• Housing Material Acid-Resistant ABS Plastic
• Housing Dimension 7.7 Inch x 3.9 Inch x 2.4 Inch
• Includes MDX-600 Series Analyzer, MDX-650 Software (Installed), Manual, Lead Stud Adapter Set, 10 Foot Cable Set, Carrying Bag
• Applications Automotive, Motorcycle, Marine Cranking, Lawn and Garden, Group 31, Commercial 4D/8D, 6 and 12 Volt Battery, 12 and 24 Volt Charging System

Midtronics - MDX-650 - Specifications

Order Part Number	MDMDX-650
Item Description	Midtronics MDX-650 | Battery and Electrical System Analyzer
Manufacturer Long Name	Midtronics, Inc.
Manufacturer Part Number	MDX-650
Product Group Id	MD00
Country of Origin	US
Harmonization Code	90303901
MS Bin Code	CG093
Default Selling Unit	EA

Midtronics - MDX-650 - Package Information

Individual Item Weight

2.400 Pound

Midtronics - MDX-650 - Videos

Midtronics MDX-650 Video URL

Click to View

Midtronics - MDX-650 - Documents and Downloads

Midtronics MDX-650 Brochure	Click to View
Midtronics MDX-650 Installation Instructions	Click to View
