Mastercool Inc 43060-TB | Turbo/Intake Diagnostic Smoke Machine

Mastercool introduces the newest line of automotive diagnostic smoke machines for EVAP, turbo/intake and heavy-duty truck testing providing a solution to difficult to diagnose automotive leaks. These specifically engineered units allow today’s technician to quickly and efficiently locate and repair a wide variety of EVAP, turbo, heavy-duty truck, intakes, exhausts, vacuum liners, cooling systems, manifolds, catalytic converters, brake boosters, passenger compartment air, water leaks and much more. Mobile repairs are now possible as the technician isn’t required to be in the shop to access shop air (EVAP and turbo/intake only.) All machines include a complete accessory kit for a wide range of diagnostic leak testing. For all turbo, intakes, exhaust, vacuum lines and vacuum components, manifolds, passenger compartment window and sunroof, headlight/tail-light fixtures and much more. Not for EVAP testing. This unit provides the option of compressed air, inert gases and a built-in internal compressor to inject the smoke into the system.

Mastercool Inc - 43060-TB - Features

• Compact, heavy-duty design for years of reliable service
• Multiple options for smoke injection include built-in internal compressor, shop air and inert gases
• Quick smoke generation
• Built-in safety pressure relief valve
• Pressure can be regulated from 0 to 28 PSI
• Large easy to read pressure decay gauge 0 – 30 PSI
• Non-toxic and non-corrosive smoke
• 10’ 12V power cables with durable clamps
• Heavy-duty 10’ smoke injection hose
• Velcro strap for hose and power cable storage
• SPECIFICATIONS Voltage: 12 VDC
• Input Pressure: Max 100 psi (8.2 bar)
• Output Pressure: Internal Pump Max 22 psi (150 kPa) / External Pressure Source Max 28 psi (190 kPa)
• Safety Pressure Relief: 120 (±5) psi
• Oil Fill Line Indicator: 3.4 oz (100 ml (±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Dimensions: 11.8 x 8.1 x 11 in (300 x 205 x 280 mm)
• Weight: 11.5 lbs (5.2 Kg) (Shipping Weight: 22 lbs (10 Kg))
• Power Consumption: Max 6.5 Amps
• Operating Temperature: 0 °F to 140°F (-17°C to 60°C )
• Operating Humidity: No Restrictions
• Operating Altitude: No Restrictions
• Vapor Output Hose: 10 feet
• Power Cable: 10 feet
• Pressure Supply: Air/Inert gas/Pump
• Part Number: 43060-TB
• UNSPSC: 25191800

Mastercool Inc - 43060-TB - Additional Information

• Overall Dimension 11.8 Inch x 8.1 Inch x 11 Inch
• Voltage Rating 12 Volt DC
• Current Rating 6.5 Amp
• Pressure Rating 100 PSI (Input), 28 PSI (Output), 120 PSI (Safety Pressure Relief)
• Temperature Rating 0 to 140 Deg F
• Vapor Output Hose/Power Cable Length 10 Foot
• Oil Fill Line Indicator Capacity 3.4 Ounce
• Flow Meter Size 0 to 0.04 Inch

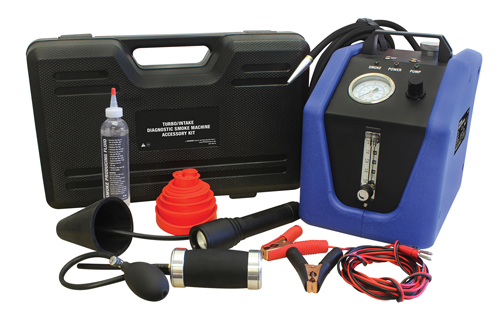

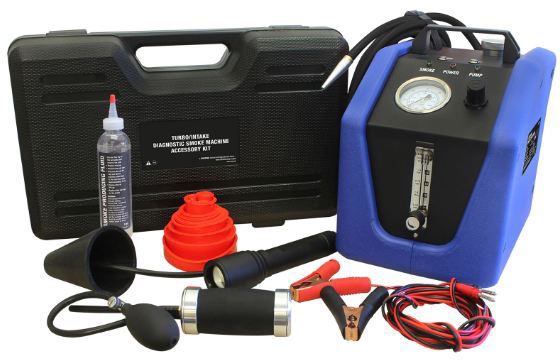

• Includes Inflatable Intake Bladder, Full Set of Block Off Cap, Exhaust Cone, High Intensity Battery Powered Smoke Illuminating Flashlight and 8 Ounce Smoke Producing Fluid

Mastercool Inc - 43060-TB - Specifications

Order Part Number	ME43060-TB
Item Description	TURBO/INTAKE DIAGNOSTIC SMOKE MACHINE
Manufacturer Long Name	Mastercool Inc.
Manufacturer Part Number	43060-TB
Product Group Id	ME01
Bin Code	AG065
Default Selling Unit	EA

Mastercool Inc - 43060-TB - Package Information

Individual Item Weight	11.500 Pound
Package/Shipping Weight	22.000 Pound
