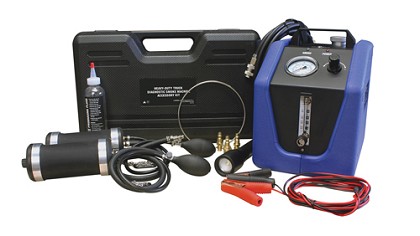

Mastercool Inc 43060-HD | Hd Truck Diagnostic Smoke Machine

Mastercool introduces the newest line of automotive diagnostic smoke machines for EVAP, turbo/intake and heavy-duty truck testing providing a solution to difficult to diagnose automotive leaks. These specifically engineered units allow today’s technician to quickly and efficiently locate and repair a wide variety of EVAP, turbo, heavy-duty truck, intakes, exhausts, vacuum liners, cooling systems, manifolds, catalytic converters, brake boosters, passenger compartment air, water leaks and much more. Mobile repairs are now possible as the technician isn’t required to be in the shop to access shop air (EVAP and turbo/intake only.) All machines include a complete accessory kit for a wide range of diagnostic leak testing. For all HD truck intakes, exhaust, vacuum lines and components, cabin air and water leaks and much more. Not for EVAP testing.

Mastercool Inc - 43060-HD - Features

• Compact, heavy-duty design for years of reliable service
• Operates on shop air or inert gas
• Quick smoke generation
• Built-in safety pressure relief valve
• Pressure can be regulated from 0 to 28 PSI
• Large easy to read pressure decay gauge 0 to 30 PSI
• Non-toxic and non-corrosive smoke
• 10’ 12V power cables with durable clamps
• Heavy-duty 10’ smoke injection hose
• Velcro strap for hose and power cable storage
• SPECIFICATIONS
• Voltage: 12 VDC
• Input Pressure: Max 100 psi (8.2 bar)
• Output Pressure: Max 28 psi (190 kPa)
• Safety Pressure Relief: 120 (±5) psi
• Oil Fill Line Indicator: 3.4 oz (100 ml (±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Dimensions: 11.8 x 8.1 x 11 in (300 x 205 x 280 mm)
• Weight: 11.5 lbs (5.2 Kg) (Shipping Weight: 22 lbs (10 Kg))
• Power Consumption: Max 6.5 Amps
• Operating Temperature: 0 °F to 140°F (-17°C to 60°C )
• Operating Humidity: No Restrictions
• Operating Altitude: No Restrictions
• Vapor Output Hose: 10 feet
• Power Cable: 10 feet
• Pressure Supply: Air/Inert gas
• Part Number: 43060-HD
• UNSPSC: 25191800

Mastercool Inc - 43060-HD - Additional Information

• Overall Dimension 11.8 Inch x 8.1 Inch x 11 Inch
• Voltage Rating 12 Volt DC
• Current Rating 6.5 Amp
• Pressure Rating 100 PSI (Input), 28 PSI (Output), 120 PSI (Safety Pressure Relief)
• Temperature Rating 0 to 140 Deg F
• Vapor Output Hose/Power Cable Length 10 Foot
• Oil Fill Line Indicator Capacity 3.4 Ounce
• Flow Meter Size 0 to 0.04 Inch
• Includes (2) Large Inflatable Block-Off Bladders with Safety Chain, 6 Inch Rigid Smoke Stack Ring, Pressure Sensor Port Adapter, Oxygen Sensor Port Adapter, Temperature Sensor Port Adapter, High Intensity Battery Powered Smoke Illuminating Flashlight and 8 Ounce Smoke Producing Fluid

Mastercool Inc - 43060-HD - Specifications

Order Part Number	ME43060-HD
Item Description	HD TRUCK DIAGNOSTIC SMOKE MACHINE
Manufacturer Long Name	Mastercool Inc.
Manufacturer Part Number	43060-HD
Product Group Id	ME01
Bin Code	AH271
Default Selling Unit	EA

Mastercool Inc - 43060-HD - Package Information

Individual Item Weight	11.500 Pound
Package/Shipping Weight	22.000 Pound

Mastercool Inc - 43060-HD - Documents and Downloads

Mastercool Inc 43060-HD Installation Instructions	Click to View
Mastercool Inc 43060-HD Specification Sheet	Click to View
