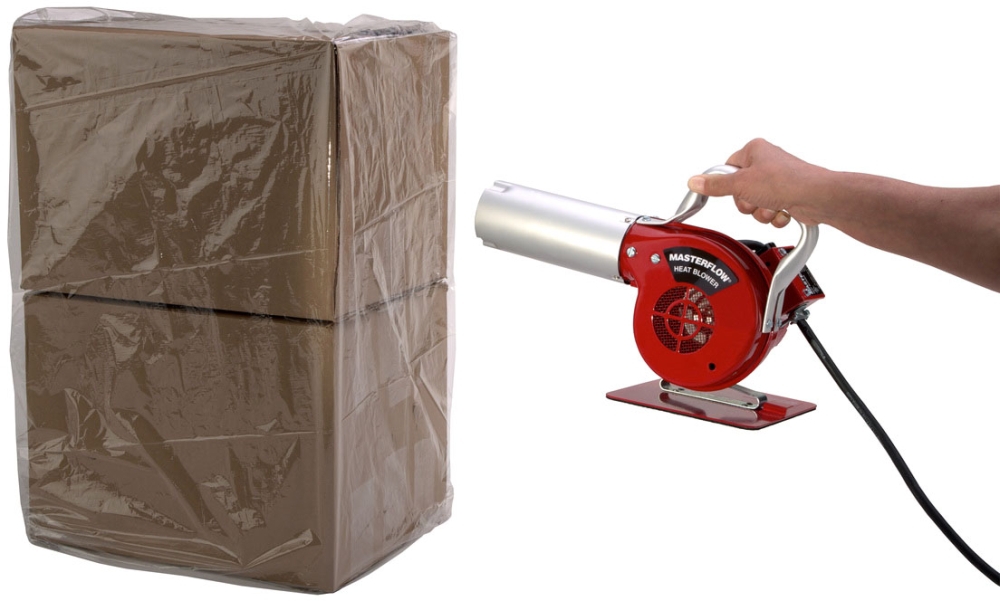

Master Appliance 10153 | Masterflow Heat Blower 500F 12Ov

Heat Blower

Type NEMA 5-20P Plug

Inlet Size 1.85 Inch Inner Diameter

Outlet Size 2.25 Inch Outer Diameter

Master Appliance - 10153 - Features

• 3 Models produce 300 Deg F, 500 Deg F or 750 Deg F High temperatures accommodate many heating, drying and shrinking applications
• Brushless induction type motor for quiet, continuous-duty operation
• Easily replaceable, reinforced, mica-insulated heating element
• Rubber-backed stand permits 90 Degree non-slip adjustability
• Use in any position or mount on equipment
• Ergonomic handle for carrying or portable use
• Mount over conveyor line or on machinery
• Use to heat or dry materials, bend plastics, shrink wrap and more
• Overall Dimension 12 Inch Length x 6 Inch Width x 9 Inch Height
• Power Rating 1680 Watt
• Input Supply Rating 120 Volt 60 Hertz
• Flow Rate 47 CFM
• Motor Type Induction
• Current Rating 14 Amp
• Air Velocity 2200 FPM
• Cordset 6 Foot 3-Wire Grounded
• Base Size 6 Inch x 6 Inch
• Temperature Rating 500 Deg F
• Includes (1) Heating Element

Master Appliance - 10153 - Additional Information

• Motor Type Induction
• Current Rating 14 Amp
• Air Velocity 2200 FPM
• Cordset 6 Foot 3-Wire Grounded
• Base Size 6 Inch x 6 Inch
• Temperature Rating 500 Deg F
• Includes (1) Heating Element

Master Appliance - 10153 - Specifications

Order Part Number	MA10153
Item Description	Masterflow Heat Blower 500F 12Ov
Manufacturer Long Name	Master Appliance Corp.
Manufacturer Part Number	AH-501
Product Group Id	MA01
Country of Origin	JP
Harmonization Code	82022000
MS Bin Code	AG066
Default Selling Unit	EA
UNSPSC	27112701

Master Appliance - 10153 - Package Information

Individual Item Weight	6.000 Pound
Shipping Weight	8.000 Pound

Master Appliance - 10153 - Documents and Downloads

Master Appliance 10153 Catalog Pages	Click to View
Master Appliance 10153 Installation Instructions	Click to View
