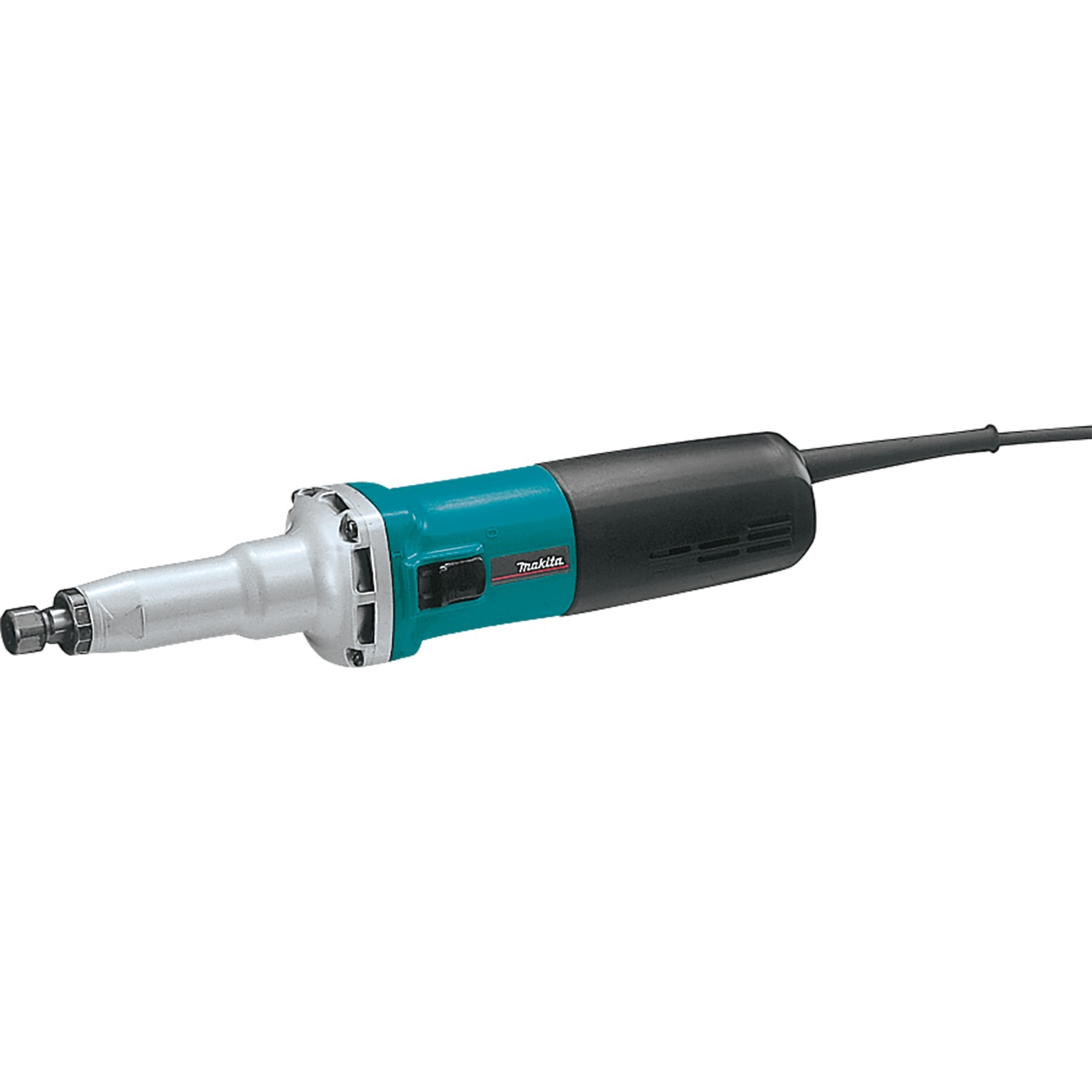

Makita GD0800C | 1/4 Inch Die Grinder, Variable Speed

Makita’s ¼” SJS™ Die Grinder (model GD0800C) combines a powerful 6.6 AMP motor with motor and gear protection features for longer-lasting grinding performance. The GD0800C features a slide switch for increased convenience. The GD0800C is equipped with SJS™ , an innovative mechanical system that allows the drive shaft to slip if the wheel suddenly catches or binds. SJS™ is engineered to help protect the gears and motor, and extend grinder life. The GD0800C is powered by a 6.6 AMP motor that delivers 7,000 – 28,000 RPM with soft start for smooth start-ups. The electronic speed control maintains constant speed under load, and a variable speed control dial allows the user to match the speed to the application. Consistent with other models in Makita’s expanding grinder line-up, the GD0800C features labyrinth construction, a series of channels engineered to capture dust and debris and prevent contaminants from penetrating the gear box and front armature bearing for longer tool life. In addition, the protective zig-zag varnish seals the motor and bearings from dust and debris by creating a barrier under rotation.

Makita - GD0800C - Features

• Die Grinder
• Item Die Grinder
• Item Type Corded
• Belt/Disc/Pad Details Wheel
• Belt/Disc/Pad Size 1 Inch Diameter
• Spindle Size 1/4 Inch Collet
• Overall Size 14-5/8 Inch Length
• Speed Rating 7000 to 28000 RPM
• Current Rating 6.6 Amp
• Weight 3.7 Pound
• Switch Type Lock-On
• Includes (1) 1/4 Inch Collet, (2) Spanner Wrench, (1) Side Handle, (1) Wrench
• Powerful 6.6 AMP motor delivers 7000 to 28000 RPM for faster material removal
• SJS technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
• Variable speed control dial enables user to match the speed to the application
• Constant speed control automatically applies additional power to the motor to maintain speed under load
• Soft start suppresses start-up reaction for smooth start-ups and longer gear life
• Electronic current limiter helps protect the motor from overload
• Directional air-flow vents channel the tool's air output away from the user's face
• Labyrinth construction prevents debris from penetrating the motor, bearings and gears for longer tool life
• Zig-zag varnish protects the armature coil from dust and debris for longer motor life
• Powerful 6.6 AMP motor delivers 7,000-28,000 RPM for faster material removal
• SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
• Overall length: 14-5/8"
• SJS Logo (Color on White)
• Makita 1 Year-30 Day Warranty (Color on White)

Makita - GD0800C - Overview

• POWER: High-speed motor (7,000 - 28,000 RPM) for maximum production
• PERFORMANCE: SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage
• COMFORT: Slim double-neck design
• DESIGN: Electronic speed control maintains constant speed even under load
• INCLUDES: 1/4" collet cone, wrenches and side handle
• Electronic speed control maintains constant speed under load
• Slender double-neck die cast aluminum gear housing for easy handling
• Internal labyrinth construction protects bearings and motor from dust and debris for long tool life
• Speed control dial for setting the optimal speed for various materials
• SJS Super Joint System absorbs shocks caused by accidental wheel lock during operation to protect gear, collet and coupling for longer tool life
• Double insulated

Makita - GD0800C - Additional Information

• Switch Type Lock-On
• Includes (1) 1/4 Inch Collet, (2) Spanner Wrench, (1) Side Handle, (1) Wrench

Makita - GD0800C - Specifications

Order Part Number	MPGD0800C
Item Desc	1/4 In Die Grinder - Variable Speed
Manufacturer Long Name	Makita USA, Inc. (Makita Tools)
Manufacturer Part Number	GD0800C
UPC	088381034579
Product Group Id	MP00
Harmonization Code	84672935
UNSPSC	27112704
Product Type (LN, W, WG, F)	Wrenches
Tool Size (in.)	4-1/2", 5", 6"
Package Quantity	1
Shipping Weight	.27 lbs.

Makita - GD0800C - Package Information

Individual Item Weight	3.700 Pound
Package/Shipping Weight	5.600 Pound

Makita - GD0800C - Documents and Downloads

Makita GD0800C Catalog Pages	Click to View
Makita GD0800C Installation Instructions	Click to View
