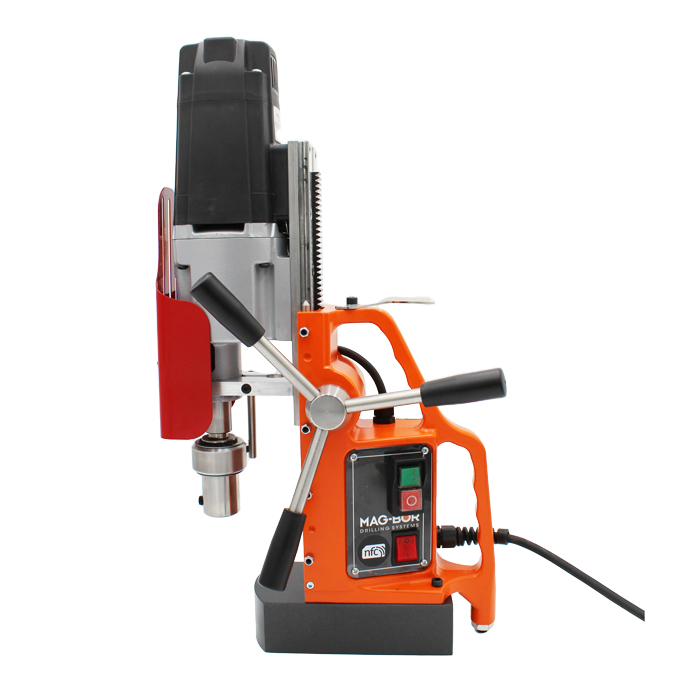

Mag-Bor MB50 | 2"x 2" Capacity Electromagnetic Drill

With over 40 years experience in the design and manufacture of electro magnetic drilling systems, Mag-Bor sets the standards for others to follow. Using proven technology, new innovation and aesthetic design we have responded to our customers needs and developed the most innovative and reliable electro magnetic drilling systems in the industry. Mag-Bor has developed a new concept with many exclusive features, unique to this new generation. Size and weight has been reduced, but strength and durability retained. Built in safety features are now standard on all Mag-Bor machines.

Mag-Bor - MB50 - Features

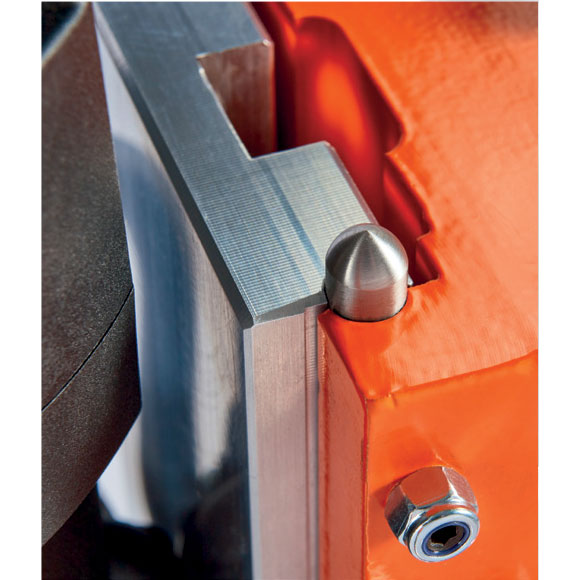

• Patented TRSS Twin Rail Slide System Benefits
• Twin rail slide system maximizes slide stability
• Slide has no contact with the main body of the machine
• Reduced friction wear
• Reduced cutter breakage
• Better stability
• Improved cutter life
• Better tolerance
• Improved hole quality
• Low maintenance, better reliability
• Comes complete with carry case, guard, accessory tool kit, coolant bottle and safety chain.
• 12 month warranty included as standard. Extended warranties available.

Mag-Bor - MB50 - Specifications

Brand Name	Mag-Bor
Item Description	2"x 2" Capacity Electromagnetic Drill
Weight	30 lbs
Countersink Capacity:	1-5/16"
Cutter Capacity:	1/2" - 2"
Cutter Depth:	2"
Drilling Capacity:	7/8"
Full Load RPM:	250/450
Height:	16-1/8"
Length:	11"
Magnetic Adhesion:	2,756 lbs
Motor Watts:	1150
No Load RPM:	465/720
Slide Stroke:	6-5/8"
Total Power Watts:	1210
Width:	4-3/4"
MPN:	MB50
