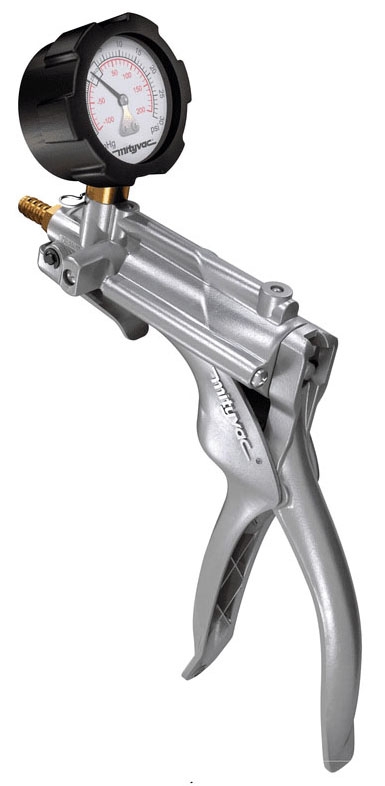

Lincoln Industrial MV8510 | Hand Vacuum Pressure Pump

Despite their seemingly simple design, Mityvac hand pumps offer a long list of unique features, many of them patent protected, which continue to make them superior to all other hand pumps on the market. Mityvac’s Silverline pumps are constructed primarily of zinc-aluminum die cast components, giving them greater durability while keeping them lightweight. This additional level of durability is required for tough working environments such as maintenance or service shops. With a little care and maintenance, Silverline pumps will provide a lifetime of flawless performance. Many applications for Mityvac hand pumps require pressure rather than vacuum. For example, a turbocharger waste gate requires pressure to test for proper function and accuracy. It’s also convenient for testing cooling systems to determine the source of leaks that can lead to overheating and severe engine damage. To fulfill the needs of modern service technicians, Mityvac Silverline dual pressure/vacuum pumps offer a switch that allows the operator to alternate between vacuum and pressure at the front port. These pumps include a compound gauge that indicates both pressure and vacuum levels.

Lincoln Industrial - MV8510 - Features

• Features modern, ergonomic design for comfortable, long-term use
• Performs engine performance diagnostics, brake bleeding, fluid transfer, evacuation, sampling, windshield repair and more
• Field serviceable standard maintenance kits and replacement parts are available With gauge and dual converter for pressure and vacuum applications
• Pinned connection allows 360 degrees gauge rotation for imporoved visibility.
• Rotating knob swithches between vacuum and pressure.
• One finger lever action vacuum/pressure release.
• Pivoting lever action maximizes output with minimal operator effort.
• Comfortable ergonomic handle reduces hand stress.
• Compound scale displays vacuum or pressure.
• Durable, accurate gearless diaphragm style gauge.
• Powerful inline piston design.
• Durable die cast metal construction.
• Mityvac vacuum gauges are scaled 0 - 30 inches of Mercury (0 - 100 kPa). Compound gauges included on dual vacuum/pressure converter pumps are scaled 0 - 30 psi (0 - 200 kPa) pressure, and 0 - 30 inches of Mercury (0 - 100 kPa) vacuum.
• Max. Vacuum/Pressure: 25 in Hg (85kPa)/30 psi (207 kPa)
• All Mityvac pumps produce vacuum at the front port. Dual converter pumps are capable of producing vacuum or pressure at the front port. A rotating knob on the side of the pump allows the operator to switch between vacuum and pressure. Dual converter pumps include a compound gauge for indicating levels of both.
• Applications: Vacuum & pressure related engine performance diagnostics and tune-ups
• Brake bleeding
• Fluid transfer, evacuation, and sampling

Lincoln Industrial - MV8510 - Additional Information

• Material Zinc/Aluminum
• Volume/Stroke 1 Cubic Inch
• Vacuum 25 Inch Hg
• Pressure 30 PSI
• Includes (1) Ilverline Elite Hand Vacuum/Pressure Pump, (1) 2 Inch Diameter Compound Gauge and Rubber Boot Dual Converter, (1) User’s Manual (English/French/Spanish)
• Application Brake Bleeding, Vacuum and Pressure, Clutch Bleeding, Vacuum and Pressure, Diesel Fuel Priming, Power Steering Evacuation, Turbocharger Testing, Vacuum Testing

Lincoln Industrial - MV8510 - Specifications

Order Part Number	NEMV8510
Item Description	Hand Vacuum Pressure Pump
Manufacturer Long Name	SKF (Mityvac)
Manufacturer Part Number	MV8510
Product Group Id	NE00
US Bin Code	AI203
Default Selling Unit	EA
Proposition 65 Warning	Yes

Lincoln Industrial - MV8510 - Package Information

Individual Item Weight

2.500 Pound

Lincoln Industrial - MV8510 - Documents and Downloads

Lincoln Industrial MV8510 Brochure	Click to View
Lincoln Industrial MV8510 Catalog Pages	Click to View
