Lincoln Industrial MV6840 | Pressure Bleed System

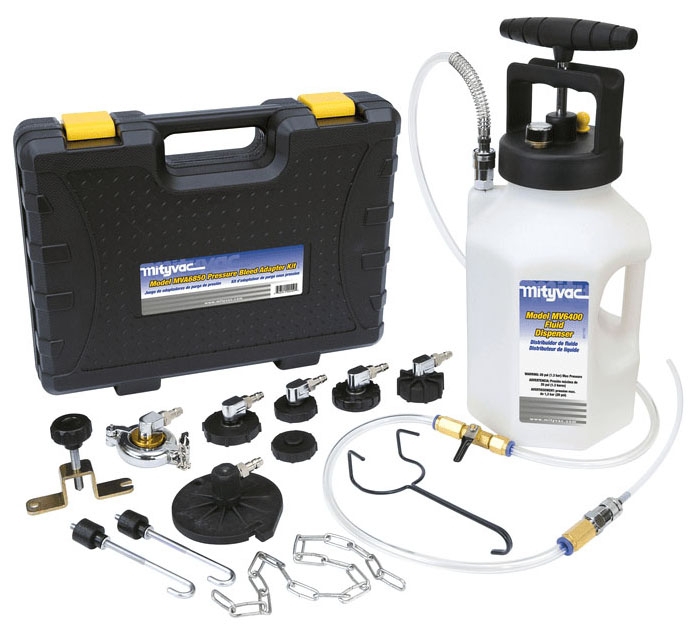

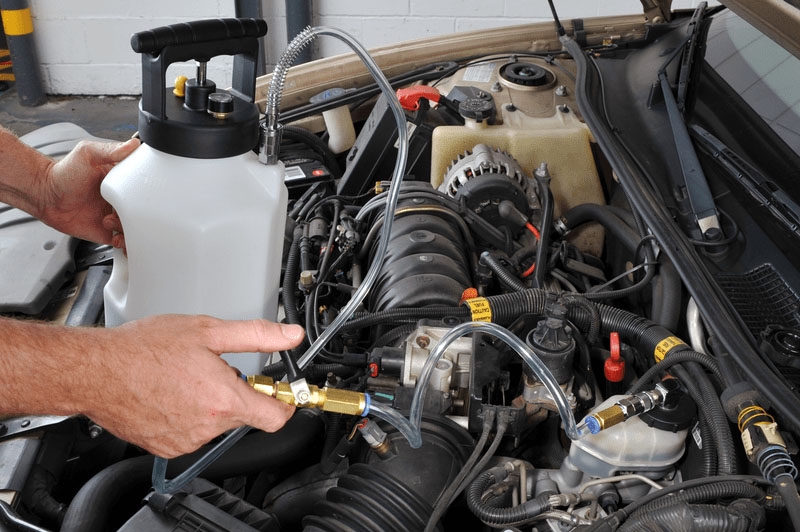

Model MV6840 is a professional hydraulic brake and clutch bleeding system that includes a fluid dispenser with manual pump (MV6400) and a kit containing seven master cylinder adapters (MVA6850). It forces new brake fluid down through the master cylinder, while air and old fluid are expelled through the bleed screw(s). A pressure gauge on the dispenser allows control of the system pressure, and the pressurized reservoir allows the operator hands-free movement to the bleed screws.

Lincoln Industrial - MV6840 - Features

• Includes seven (7) master cylinder adapters to connect to most American, Asian and European manufactured cars and light trucks
• Large 1.2 Gallon fluid capacity
• Fluid is dispensed under pressure for smooth continual flow
• Integrated manual pump adds air above the fluid level to prevent aeration
• Internal pump components are sealed against exposure to fluids
• ON/OFF and flow control valve are conveniently located near fluid output
• Utilizes push-to-connect, quick-change style accessory connections
• Pressure gauge indicates fluid dispensing pressure
• Integrated safety and manual pressure relief valve
• Includes custom-molded storage case for adapters
• Includes seven (7) master cylinder adapters to connect to most American, Asian, and European manufactured cars and light trucks
• Large 1.2-gallon (5-liter) fluid capacity
• Fluid is dispensed under pressure for smooth continual flow
• Internal pump components are sealed against exposure to fluids
• Utilizes push-to-connect, quick-change style accessory connections
• Integrated safety and manual pressure relief valve
• Includes custom-molded storage case for adapter
• Includes: 1.2-gallon (5-liter) Fluid Reservoir
• Reservoir Lid w/ integrated manual pump, pressure gauge, and pressure relief valve
• 5' (1.5 m) Fluid Dispensing Hose w/ flow control and auto-shutoff valves
• MVA6850 Pressure Bleed Adapter Kit (includes seven master cylinder adapters)
• Fluid Dispensing Wand
• Hanging Hook
• User s Manual

Lincoln Industrial - MV6840 - Additional Information

• Reservoir Capacity 1.2 Gallon
• Maximum Pressure Rating 20 PSI
• Includes (1) 1.2 Gallon Fluid Reservoir, (1) Reservoir Lid With Integrated Manual Pump/Pressure Gauge and Pressure Relief Valve, (1) 5 Foot Fluid Dispensing Hose with Flow Control and Auto-Shutoff Valve, (1) Pressure Bleed Adapter Kit, (1) Fluid Dispensing Wand, (1) Hanging Hook, (1) User’s Manual

Lincoln Industrial - MV6840 - Specifications

Order Part Number	NEMV6840
Item Description	Pressure Bleed System
Manufacturer Long Name	SKF (Mityvac)
Manufacturer Part Number	MV6840
Product Group Id	NE00
US Bin Code	AI187
Default Selling Unit	EA
Proposition 65 Warning	Yes
Reservoir Capacity	1.2 gallons (5 liters)
Max. Pressure	20 psi (1.4 bar)
Packaged Weight	14.4 lbs (6.5 kgs)
Packaged Size	11.8" wide x 11.3" deep x 15.6" tall (300mm x 290mm x 396mm)

Lincoln Industrial - MV6840 - Package Information

Shipping Height	15.600 Inch
Shipping Length	11.800 Inch
Shipping Weight	14.400 Pound
Shipping Width	11.300 Inch
