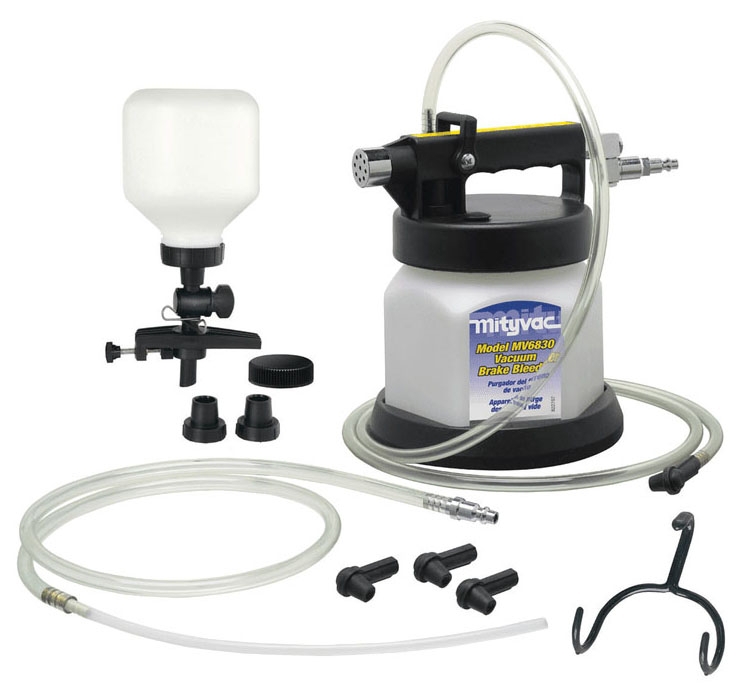

Lincoln Industrial MV6835 | Vacuum Brake Bleed Kit

Model MV6835 extends the capabilities of our MV6830 vacuum brake bleeder by including our MVA6832 Clamp-on Auto-refill Kit. The bleeder can evacuate up to 2 qt. (2 l) per minute. The refill kit ensures the master cylinder does not run dry of new fluid. This kit provides an extremely efficient method of bleeding hydraulic brake and clutch systems.

Lincoln Industrial - MV6835 - Features

• Compressed air operation
• Integrated 1.9 Quart capacity fluid collection reservoir
• Variable control thumb throttle
• Swivel air inlet with quick-disconnect
• Quick-disconnect coupler for accessories
• Quiet, muffled exhaust
• Automatic overflow prevention
• Compressed air operation
• Integrated 1.9 quart (1.8 liter) capacity fluid collection reservoir
• Variable control thumb throttle
• Swivel air inlet with quick disconnect
• Automatically maintains fluid level in master cylinder
• Two refill kit styles ensure a fit to all makes and models of vehicles
• Kit Includes: Brake bleeder (MIT6830)
• 6` (1.8 m) long bleed hose assembly
• 4` (1.2 m) long fluid evacuation hose
• Molded base with screws for bench mounting
• Hanging hook
• 3 Universal bleed screw adapters
• Clamp-on style auto-refill kit (MITMVA6832)
• User Manual (English/French/Spanish/German)

Lincoln Industrial - MV6835 - Additional Information

• Bleeder Reservoir Capacity 1.9 Quart
• Refill Reservoir Capacity 40 Ounce
• Working Pressure 60 to 150 PSI
• Vacuum at 90 PSI 26 Inch Hg
• Air Consumption at 90 PSI 4.3 CFM
• Flow Rate 70 Ounce per Minute
• Inlet Size 1/4 Inch Threaded
• Kit Contents (1) Brake Bleeder, (1) 6 Foot Assembly, (1) 4 Foot Fluid Evacuation Hose, (1) Molded Base with Screws for Bench Mounting, (1) Automatic Fluid Refill Kit, (1) Clamp-On Style Auto-Refill Kit, (1) Hanging Hook, (3) Universal Bleed Screw Adapter, (1) User Manual (English/French/Spanish/German)

Lincoln Industrial - MV6835 - Specifications

Order Part Number	NEMV6835
Item Description	Vacuum Brake Bleed Kit
Manufacturer Long Name	SKF (Mityvac)
Manufacturer Part Number	MV6835
Product Group Id	NE00
Country of Origin	TW
Harmonization Code	84141000
US Bin Code	AI207
Default Selling Unit	KIT
Proposition 65 Warning	Yes
Bleeder Reservoir Capacity	1.9 quarts (1.8 liters)
Refill Reservoir Capacity	40 oz (1.2 liters)
Working Pressure	60 – 150 psi (4.1 – 10.3 bar)
Vacuum @ 90 psi (6.2 bar)	26 in. Hg (88 kPa)
Air Consumption @ 90 psi (6.2 bar)	4.3 cfm (2.0 l/s)
Flow Rate @ 60 psi (4.1 bar)	50 oz/min (1460 ml/min)
@ 90 psi (6.2 bar)	70 oz/min (2100 ml/min)
@ 150 psi (10.3 bar)	70 oz/min (2100 ml/min)
Inlet Thread Size	1?4" NPT
Packaged Weight	5.1 lbs (2.3 kg)
Size	11.5" wide x 10.8" tall x 8.8" deep (290 mm wide x 275 mm tall x 225 mm deep)

Lincoln Industrial - MV6835 - Package Information

Shipping Height	10.800 Inch
Shipping Length	11.500 Inch
Shipping Weight	5.100 Pound
Shipping Width	8.800 Inch
