Lincoln Industrial MV5530 | Professional Compression Test Kit

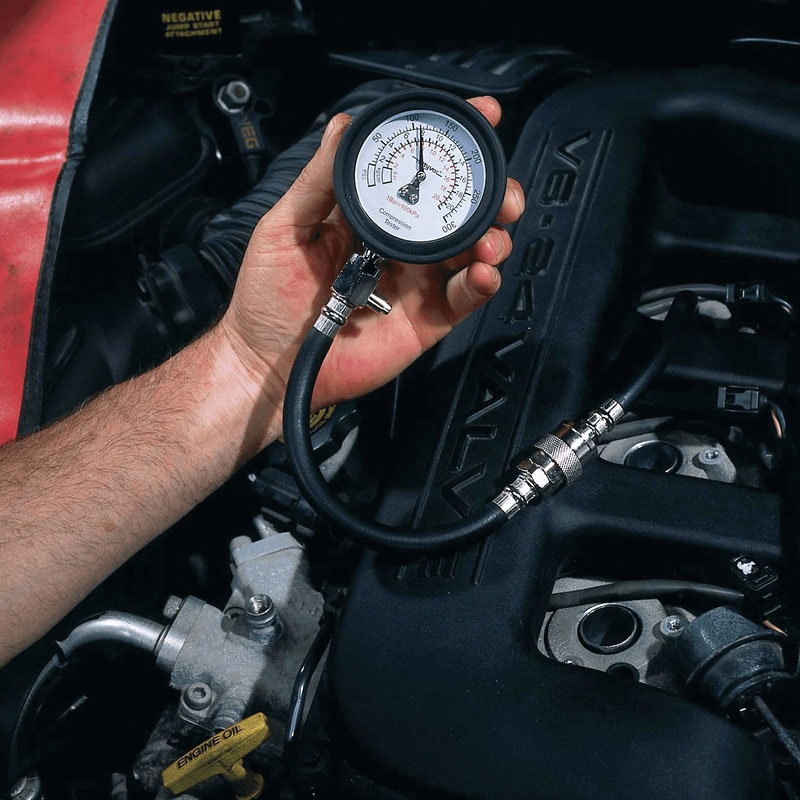

This comprehensive kit includes everything required to perform dry and wet engine cylinder compression tests commonly used to detect ring or cylinder head problems, sticking valves, blown head gasket(s) and more. Includes adapters for use on motorcycles, marine and small engines and an air-hold adapter for performing valve seal repairs without removing the cylinder head(s). Not for use on diesel engines.

Lincoln Industrial - MV5530 - Features

• Manual pressure release for maintaining peak readings
• Professional-grade threaded adapters for leak-proof seals
• Extended hoses for hard-to-reach applications
• Large, easy-to-read 2-3/4 Inch diameter gauge
• Adapters to fit engines as small as lawn mowers, chain saws and trimmers
• Quick-disconnect coupler for easy accessory changes
• Manual pressure release for maintaining peak readings
• Professional grade threaded adapters for leak-proof seals
• Extended hoses for hard to reach applications
• Large, easy to read 2 3/4" (70 mm) diameter gauge
• Adapters to fit engines as small as lawn mowers, chain saws and trimmers
• Quick disconnect coupler for easy accessory changes

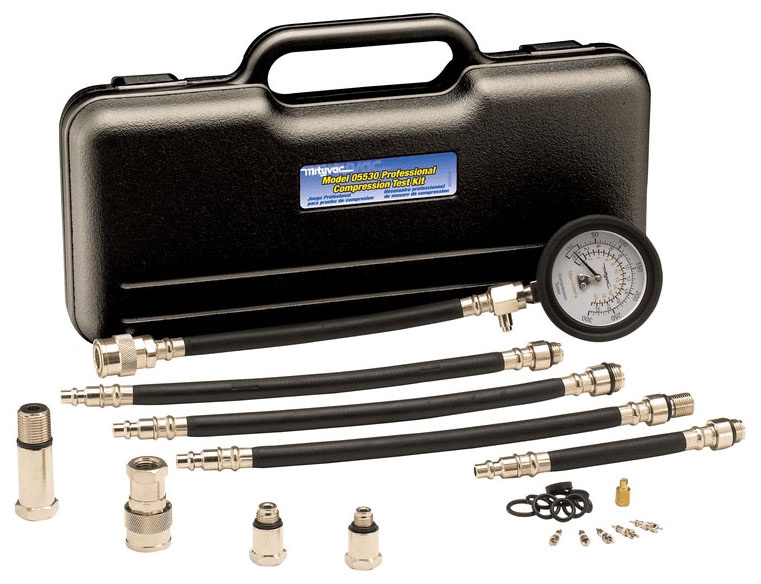

• Includes: 2-3/4" (70 mm) gauge with high impact lens, rubber boot, and four (4) scales of measure (psi, kg/cm2, bar, kPa), attached to 10" (250 mm) long hose and quick release coupler
• 14 mm short-thread adapter with 6 1/2" (165 mm) and 12" (305 mm) long hoses
• 14 mm long-thread adapter with 12" (305 mm) long hose
• 18 mm short-thread adapter with 12" (305 mm) long hose
• 14 mm short-thread x 18 mm long-thread adapter
• 10 mm thread small engine adapter
• 12 mm thread small engine adapter
• Quick release air hold adapter
• Custom blow-molded case
• Field service kit
• User manual (English/Spanish/French)

Lincoln Industrial - MV5530 - Additional Information

• Pressure Rating 300 PSI
• Kit Contents (1) 2-3/4 Inch Gauge with High Impact Lens, Rubber Boot, and (4) Scales of Measure Attached to 10 Inch Hose and Quick Release Coupler, (1) 14 Millimeter Short-Thread Adapter with 6-1/2 Inch and 12 Inch Hose, (1) 14 MM Long-Thread Adapter with 12 Inch Hose, (1) 18 Millimeter Short-Thread Adapter with 12 Inch Hose, (1) 14 Millimeter Short-Thread x 18 Millimeter Long-Thread Adapter, (1) 10 Millimeter Thread Small Engine Adapter, (1) 12 Millimeter Thread Small Engine Adapter, (1) Quick-Release Air Hold Adapter
• (1) Custom Blow-Molded Case, (1) Field Service Kit, (1) User Manual (English/Spanish/French)
• Application Compression Testing, Gasoline

Lincoln Industrial - MV5530 - Specifications

Order Part Number	NEMV5530
Item Description	Professional Compression Test Kit
Manufacturer Long Name	SKF (Mityvac)
Manufacturer Part Number	MV5530
Product Group Id	NE00
Country of Origin	TW
Harmonization Code	90318080
US Bin Code	AI224
Default Selling Unit	EA
Proposition 65 Warning	Yes
Packaged Weight	3.5 lbs (1.6 kg)
Packaged Size	14.5" x 8" x 2.7" (370 mm x 205 mm x 70 mm)
Max. Pressure	300 psi (21 kg/cm2) (20.5 bar) (2,070 kPa)

Lincoln Industrial - MV5530 - Package Information

Shipping Height	8.000 Inch
Shipping Length	14.500 Inch
Shipping Weight	3.500 Pound
Shipping Width	2.700 Inch

Lincoln Industrial - MV5530 - Documents and Downloads

Lincoln Industrial MV5530 Brochure	Click to View
Lincoln Industrial MV5530 Catalog Pages	Click to View
Lincoln Industrial MV5530 Other Document 1	Click to View
