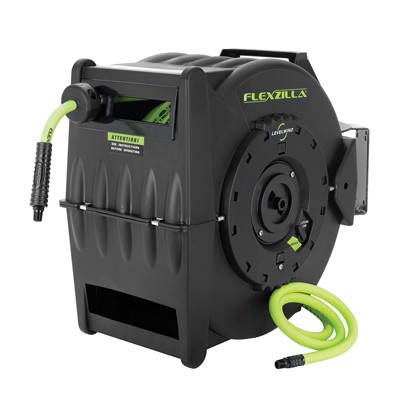

Legacy L8305FZ | Flexzilla Levelwind Retractable Air Hose Reel 3/8 Inch x 50 Foot

Flexzilla offers a variety of Air Hose Reels to make reeling in hoses easy. Some models feature Levelwind Technology Flexzilla’s unique winding system that automatically layers hose back and forth across the reel ensuring that the hose is coiled smoothly, easily…every time. All of our Air Hose Reels enhance your work efficiency and are heavy-duty to stand up to frequent use.

Legacy Manufacturing - L8305FZ - Features

• Retractable Hose Reel
• Item Retractable Hose Reel
• Hose Size 3/8 Inch Inner Diameter
• Hose Length 5 Foot
• End Connection 3/4 Inch Female Garden Hose Threaded x 1/4 Inch Male Threaded
• Pressure Rating 300 PSI
• Minimum Temperature Rating -40 Deg F
• Maximum Temperature Rating 140 Deg F
• Hose Material Flexible Hybrid Polymer
• Service Air
• Reel Inlet 3/4 to 11-1/2 Inch Male
• Hose Outlet 1/4 Inch Male Threaded
• Latching Mode Switch Choose from latching hose every 3 Foot for extended use or switch to free run for immediate automatic rewinding
• Seven Position Locking Bracket These reels can swivel freely on a mounting bracket up to 135 Degree or can be locked into place using the locking brace
• Up to seven different locking angles can be utilized (L8300-W)
• Adjustable Hose Stopper Increase or decrease the length of the hose that remains when hose is fully retracted
• Extra Large Swivel A 3/4 Inch swivel reduces flow restrictions and allows for maximum flow
• Free Standing Base Portable Use freestanding or mounted on wall or ceiling
• Flat base allows reel to rest on the ground' Built-In Handle For carrying ease
• Durable Construction Made from durable UV stabilized polypropylene

Legacy Manufacturing - L8305FZ - Additional Information

• Reel Inlet 3/4 to 11-1/2 Inch Male
• Hose Outlet 1/4 Inch Male Threaded

Legacy Manufacturing - L8305FZ - Specifications

Order Part Number	LML8305FZ
Item Desc	Air Hose Levelwind Flxzila 50' 3/8"
Manufacturer Long Name	Legacy Manufacturing Co. (Flexzilla)
Manufacturer Part Number	L8305FZ
Product Group Id	LM00
Country of Origin	US
Harmonization Code	39173900
MS Bin Code	DC103
Default Selling Unit	EA
UNSPSC	40142022

Urethane Supply - 2550-2 - Package Information

Individual Item Weight

25.000 Pound

Legacy Manufacturing - L8305FZ - Documents and Downloads

Legacy Manufacturing L8305FZ Catalog Pages	Click to View
Legacy Manufacturing L8305FZ Installation Instructions	Click to View
