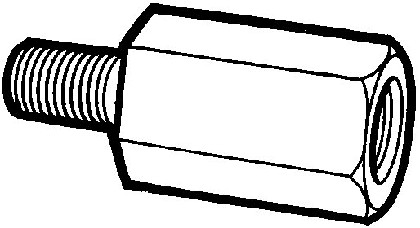

Kent Moore Tools J-34539 | King Pin / Idler Shaft Adapter

1999 - 1/2 & Later T-Series & W5 with Isuzu MLD6Q 6-Speed manual Transmission The reverse Gear Shaft is press to fit into the case Bearing, and must be removed using previously essential J-2619-01 Slide Hammer. The reverse Gear Shaft has a 12mm internal thread, while J-2619-01 has a 5/8-18 thread. J-34539 must be used with J-2619-01 to prevent damage to the reverse Gear Shaft. Thread J-34539 into the reverse Gear Shaft. Then, attach J-2619-01 to J-34539, and use to remove the reverse Gear Shaft from the case.

Kent Moore Tools - J-34539 - Product Categories

• Automotive Specialty Tools
• Auto Air Conditioning Tools
• Adapters-Couplers- Fittings-Gask

Kent Moore Tools - J-34539 - Features

• Kent-Moore Tools J-34539 King Pin / Idler Shaft Adapter For General Motors. 1999 - 1/2 & Later T-Series & W5 with Isuzu MLD6Q 6-Speed manual transmission The reverse gear shaft is press to fit into the case bearing, and must be removed using previously essential J-02619-A Slide Hammer. The reverse gear shaft has a 12mm internal thread, while J-02619-A has a 5/8-18 thread. J-34539 must be used with J-02619-A to prevent damage to the reverse gear shaft. Thread J-34539 into the reverse gear shaft. Then, attach J-02619-A to J-34539, and use to remove the reverse gear shaft from the case.

Kent-Moore Tools - J-34539 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	J-34539
Item Description	King Pin / Idler Shaft Adapter

Kent Moore Tools - J-34539 - Partial List of Applications

Manual Transmission : Drive Line : Chevrolet C-Series Medium Duty Truck C6/C7/C8	2004
Manual Transmission : Drive Line : Chevrolet T-Series Medium Duty Truck F6/F7/F8	2001, 2002
Manual Transmission : Drive Line : GMC T-Series Medium Duty Truck F6/F7/F8	2001, 2002
Manual Transmission : Drive Line : Kodiak C-Series (Conventional) C4/C5	2004
Manual Transmission : Drive Line : Kodiak C-Series (Conventional) C6/C7/C8	2004
Manual Transmission : Drive Line : TopKick C-Series (Conventional) C4/C5	2004
Manual Transmission : Drive Line : TopKick C-Series (Conventional) C6/C7/C8	2004
