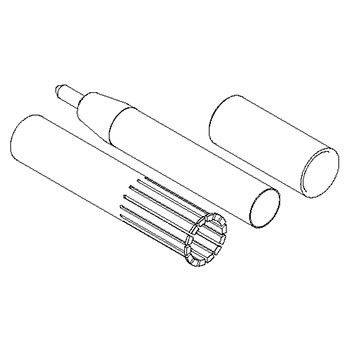

Applications: 10L80/10L90 TransmissionDT-52095 is a Set of three Tools that correctly Install and compress the five solid Teflon Seals on the Turbine/Input Shaft that Seal inSide the reverse Clutch Housing. DT-52095-1 is a long, smooth Protector Tube with an adjustable depth stop-Rod that goes over the Shaft and protects the five Seals from damage as they slide down the Turbine Shaft one at a time. DT?52095?2 has expandable fingers that snug fit the Protector and evenly push the Seals down the Protector into their respective grooves on the Turbine Shaft without over-expanding the Seals. DT-52095-3 has a tapered ID that gradually compresses the Seals to the correct size OD so they slide inSide the Front Support Assembly ID without being nicked, cut, or twisted out of the groove.
Kent Moore Tools - DT-52095 - Product Categories
- Automotive Specialty Tools
- Drive Train- Transmission
- Seal Removal & Installation
Kent Moore Tools - DT-52095 - Features
- Applications: 10L80/10L90 Transmission
- DT-52095 is a set of three tools that correctly install and compress the five solid Teflon seals on the turbine/input shaft that seal inside the reverse clutch housing. DT-52095-1 is a long, smooth protector tube with an adjustable depth stop-rod that goes over the shaft and protects the five seals from damage as they slide down the turbine shaft one at a time. DT-52095-2 has expandable fingers that snug fit the protector and evenly push the seals down the protector into their respective grooves on the turbine shaft without over-expanding the seals. DT-52095-3 has a tapered ID that gradually compresses the seals to the correct size OD so they slide inside the front support assembly ID without being nicked, cut, or twisted out of the groove.
- Automatic Transmission - 10L90 (MGL) : Transmission : Camaro : 2017
Kent-Moore Tools - DT-52095 - Specifications
| Brand Name | Kent-Moore Tools |
| Manufacturer Part Number | DT-52095 |
| Item Description | Turbine Shaft Large Seal Installer |
Kent Moore Tools - DT-52095 - Partial List of Applications
| Automatic Transmission - 10L90 (MGL) : Transmission : Camaro | 2017 |
