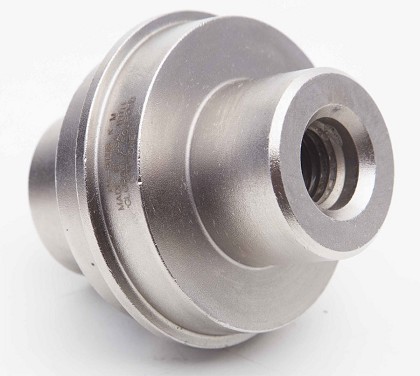

Kent Moore Tools DT-51618 | Bearing Installer

DT-51618 is a double-Ended Tool that Installs the Axle Shaft roller Bearing into the Axle Tube at the Outer End on both 200 mm and 220 mm Ring Gear Rear Axles, and Installs the Side Bearing onto the Differential case on the 220 mm Ring Gear Rear Axle. The roller Bearing is positioned to a specific depth in the Axle Tube, and DT-51618 positions the Bearing correctly. DT-51618 is used with J-8092 Driver Handle to Install both Bearings. Incorrect Installation will result in shortened service life for the Bearing.

Kent Moore Tools - DT-51618 - Features

• DT-51618 is a double-ended tool that installs the axle shaft roller bearing into the axle tube at the outer end on both 200 mm and 220 mm ring gear rear axles, and installs the side bearing onto the differential case on the 220 mm ring gear rear axle. The roller bearing is positioned to a specific depth in the axle tube, and DT-51618 positions the bearing correctly.
• DT-51618 is used with J-8092 Driver Handle to install both bearings. Incorrect installation will result in shortened service life for the bearing.

Kent-Moore Tools - DT-51618 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	DT-51618
Item Description	Bearing Installer

Kent Moore Tools - DT-51618 - Partial List of Applications

Rear Drive Axle : Driveline /Axle : Canyon	2016, 2017
Rear Drive Axle : Driveline /Axle : Colorado	2016, 2017
