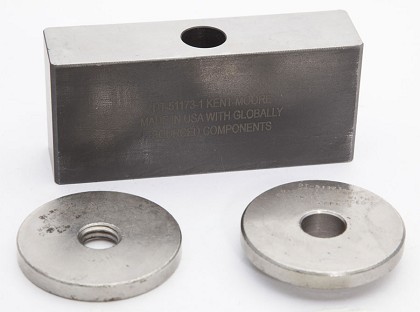

Kent Moore Tools DT-51173 | Pinion Shim Selector Adapter Kit
DT-51173 contains a shim selection Gauge Block and two Centering discs to deTermine the required Pinion shim on 9.76" Rear Axles. DT-51173 is used with components from J-34925 Pinion Setting Gauge Set. The Centering discs from DT-51173 hold the Stud Assembly from J-34925 centered when attaching it to the Gauge Block from DT-51173, and allow the correct Pinion Bearing preLoad to be Set. The arbor plunger Rod is placed on top of the Gauge Block, and moved to "zero" the Dial Indicator. The arbor is turned to move the Rod off the Gauge Block, and the Dial indicatot reading disPlays the required shim.
Kent Moore Tools - DT-51173 - Product Categories
- Automotive Specialty Tools
- Auto Air Conditioning Tools
- Adapters-Couplers- Fittings-Gask
Kent-Moore Tools - DT-51173 - Specifications
| Brand Name | Kent-Moore Tools |
| Manufacturer Part Number | DT-51173 |
| Item Description | Pinion Shim Selector Adapter Kit |
Kent Moore Tools - DT-51173 - Partial List of Applications
| Rear Drive Axle : Driveline /Axle : Cheyenne | 2016, 2017, 2016 |
| Rear Drive Axle : Driveline /Axle : Escalade ESV | 2016, 2017 |
| Rear Drive Axle : Driveline /Axle : Escalade | 2015, 2016, 2017 |
| Rear Drive Axle : Driveline /Axle : Sierra | 2014, 2015, 2016, 2017 |
| Rear Drive Axle : Driveline /Axle : Silverado | 2014, 2015, 2016, 2017 |
| Rear Drive Axle : Driveline /Axle : Suburban | 2015, 2016, 2017 |
| Rear Drive Axle : Driveline /Axle : Tahoe | 2015, 2016, 2017 |
| Rear Drive Axle : Driveline /Axle : Yukon XL | 2016, 2017 |
| Rear Drive Axle : Driveline /Axle : Yukon | 2015, 2016, 2017 |
