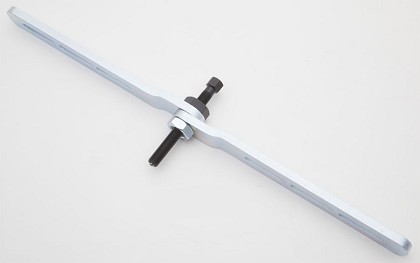

Kent Moore Tools DT-48056 | Spring Compressor Bridge

Applications: 2017-later Buick LaCrosse, Enclave; Chevrolet Cruze, Equinox, Malibu, Traverse; GMC TerrainDT-48056 spans the Housing opening and is used with various Clutch Piston Spring Compressors to compress the return Spring to allow Piston and Retainer Installation in GF6 and GF9 Transaxles During unit overhaul.

Kent Moore Tools - DT-48056 - Product Categories

• Air Compressors
• Two Stage Compressors

Kent Moore Tools - DT-48056 - Features

• The Kent-Moore DT-48056 Spring Compressor Bridge is a specialty tool designed for use with GM vehicles with the 2-Mode Hybrid Transmission, Malibu, and XTS models.
• It is used in conjunction with the J-46632 tool for front-wheel drive vehicles from 2007 to 2016 with the 6T70 transaxle. The DT-48056 tool functions by spanning across the transmission case and allowing for adjustable positions to be set and tightened over the centerlines of the piston bores.
• The tool's forcing screw is used to push on the appropriate spring compressing tool, which in turn pushes down on the spring to release tension and enable the removal and installation of retaining rings.
• By utilizing the DT-48056 Spring Compressor Bridge, the need to remove the transaxle from the J-48307 bench mount holding fixture and transfer it to a separate press bed is eliminated, simplifying the service procedures for these vehicles.
• Manufacturer: SPX/Bosch (OTC Rotunda Kent-Moore Miller)

Kent-Moore Tools - DT-48056 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	DT-48056
Item Description	Spring Compressor Bridge

Kent Moore Tools - DT-48056 - Partial List of Applications

Automatic Transmission - 6T30 (MH9) or 6T40 (MH8) : Transmission : Cruze	2016
Automatic Transmission - 6T30 (MH9) or 6T40 (MH8) : Transmission : Sonic	2016, 2017
Automatic Transmission - 6T35 (MNU) : Transmission : Cruze	2017
Automatic Transmission - 6T40 (MH8 MHH) : Transmission : Regal	2016
Automatic Transmission - 6T40 (MH8) or 6T45 (MH7) : Transmission : Orlando	2017
Automatic Transmission - 6T40 (MH8) or 6T50 (MHK) : Transmission : Verano	2016
Automatic Transmission - 6T40 (MH8) : Transmission : Orlando	2016
Automatic Transmission - 6T40 (MH8) : Transmission : Regal	2017
Automatic Transmission - 6T40 (MH8) : Transmission : Verano	2017
Automatic Transmission - 6T40 (MHH) : Transmission : LaCrosse	2016
Automatic Transmission - 6T40 (MNH MNK) : Transmission : Encore	2016, 2017
Automatic Transmission - 6T40 (MNH MNK) : Transmission : Trax	2016, 2017
Automatic Transmission - 6T40 (MNH) : Transmission : Malibu Limited	2016
Automatic Transmission - 6T40 (MNH) : Transmission : Malibu	2016, 2017
Automatic Transmission - 6T45 (MH7 MHC) : Transmission : Equinox	2017
Automatic Transmission - 6T45 (MH7 MHC) : Transmission : Terrain	2017
Automatic Transmission - 6T45 (MH7) : Transmission : Cascada	2016, 2017
Automatic Transmission - 6T45 (MHC MH7) : Transmission : Equinox	2016
Automatic Transmission - 6T45 (MHC MH7) : Transmission : Terrain	2016
Automatic Transmission - 6T45 (MHG) or 6T50 (M2D) : Transmission : Envision	2016, 2017
Automatic Transmission - 6T45 (MHG) : Transmission : Impala	2016, 2017
Automatic Transmission - 6T50 (M2D) : Transmission : Acadia	2017
Automatic Transmission - 6T70 (M7U M7W)	Automatic Transmission - 6T70 (M7U M7W), Automatic Transmission - 6T70 (M7U M7W)
6T75 (M7V)	6T75 (M7V), 6T75 (M7V)
or 6T80 (MHM) : Transmission : XTS	2016, 2017
Automatic Transmission - 6T70 (M7U M7W) : Transmission : Acadia	2017
Automatic Transmission - 6T70 (M7U M7W) : Transmission : Equinox	2016, 2017
Automatic Transmission - 6T70 (M7U M7W) : Transmission : LaCrosse	2016
Automatic Transmission - 6T70 (M7U M7W) : Transmission : Regal	2016, 2017
Automatic Transmission - 6T70 (M7U M7W) : Transmission : SRX	2016
Automatic Transmission - 6T70 (M7U M7W) : Transmission : Terrain	2016, 2017
Automatic Transmission - 6T70 (M7W) : Transmission : Impala	2016, 2017
Automatic Transmission - 6T70 (MH2) : Transmission : Impala Limited	2016
Automatic Transmission - 6T75 (M7V M7X) : Transmission : Acadia Limited	2017
Automatic Transmission - 6T75 (M7V M7X) : Transmission : Acadia	2016
Automatic Transmission - 6T75 (M7V M7X) : Transmission : Enclave	2016, 2017
Automatic Transmission - 6T75 (M7V M7X) : Transmission : Traverse	2016, 2017
Automatic Transmission - 8L45 (M5N M5T) or 8L90 (M5U) : Transmission : ATS	2016, 2017
Automatic Transmission - 8L45 (M5N) or 8L90 (M5U) : Transmission : CTS	2016, 2017
Automatic Transmission - 8L45 (M5N) or 8L90 (M5X) : Transmission : CT6	2016, 2017
Automatic Transmission - 8L45 (M5T) or 8L90 (M5U) : Transmission : Camaro	2016, 2017
Automatic Transmission - 8L45 (M5T) : Transmission : Canyon	2017
Automatic Transmission - 8L45 (M5T) : Transmission : Colorado	2017
Automatic Transmission - 8L90 (M5U M5X) : Transmission : Cheyenne	2016, 2017
Automatic Transmission - 8L90 (M5U M5X) : Transmission : Sierra	2016, 2017
Automatic Transmission - 8L90 (M5U M5X) : Transmission : Silverado	2016, 2017
Automatic Transmission - 8L90 (M5U) : Transmission : Corvette	2016, 2017
Automatic Transmission - 8L90 (M5U) : Transmission : Escalade ESV	2016, 2017
Automatic Transmission - 8L90 (M5U) : Transmission : Escalade	2016, 2017
Automatic Transmission - 8L90 (M5U) : Transmission : Express	2017
