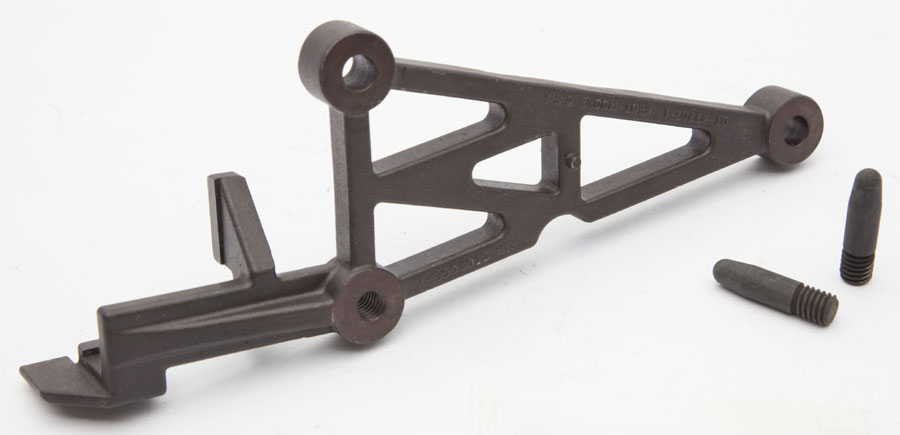

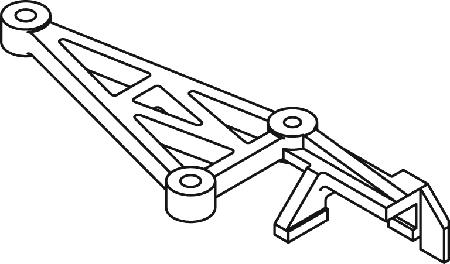

Kent Moore Tools DT-47707 | Internal Mode Switch Alignment Tool
DT-47707 is is used to correctly position and align the Internal Mode Switch when it is replaced or related service is performed on the Transaxle. Alignment is critical to proper Shift operation. This new version is required due to changes in the IMS Switch which added an additional track contact due to the separation of Engine Control and Transmission Control into 2 modules for 2006. This new 6 track IMS Switch will supersede all prior 4T80E 5 track switches.
Kent Moore Tools - DT-47707 - Product Categories
- Automotive Specialty Tools
- Drive Train- Transmission
- Clutch Service Tools
Kent Moore Tools - DT-47707 - Features
- For GM / General Motors. DT-47707 is is used to correctly position and align the Internal Mode Switch when it is replaced or related service is performed on the transaxle. Alignment is critical to proper shift operation. This new version is required due to changes in the IMS Switch which added an additional track contact due to the separation of engine control and transmission control into 2 modules for 2006. This new 6 track IMS Switch will supersede all prior 4T80E 5 track switches.
Kent-Moore Tools - DT-47707 - Specifications
| Brand Name | Kent-Moore Tools |
| Manufacturer Part Number | DT-47707 |
| Item Description | Internal Mode Switch Alignment Tool |
