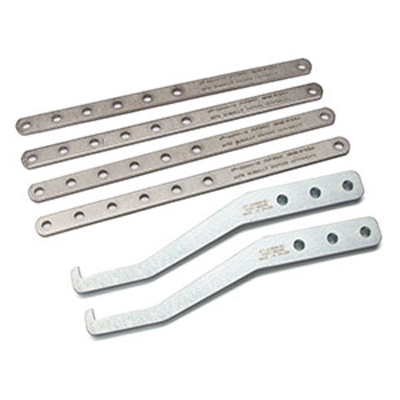

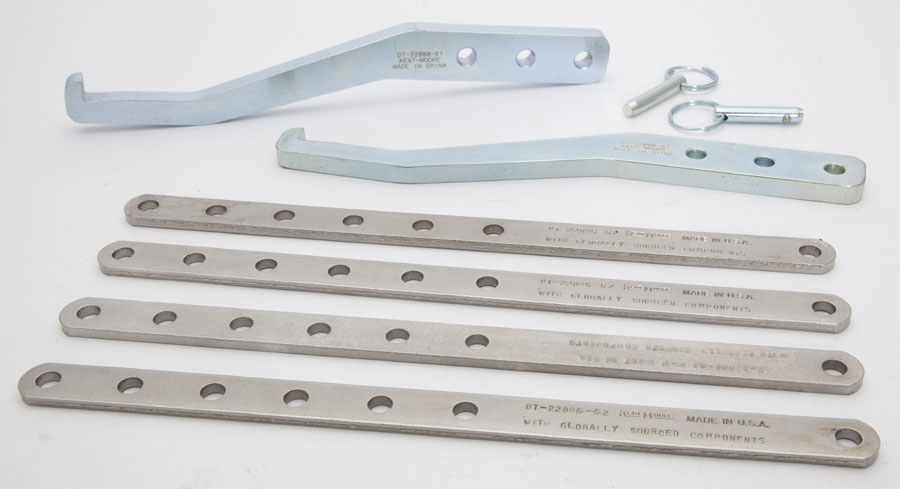

Kent Moore Tools DT-22888-60 | Puller Adapter Leg Set
DT-22888-60 is a Puller Adapter Set used with J-22888-20A Puller from J-22888-D Bearing Puller kit to service the Tremec TR6070 manual Transmission. DT-22888-60 is used to remove the Main Shaft Rear Bearing Support Inner Race, Output Shaft press-fit Spacer, 5th/6th synchronizer hub, 4th and 6th Drive Gears, and the 5th, 7th and reverse Driven Gears. DT-22888-60 must be used on the 5th Driven Gear due to the lack of clearance between the Gear nad the case. When removing the 5th and 7th Driven Gears, the forcing screw on J-22888-20A is used against Puller Pilot EN-46359 to prevent damage to the End of the Output Shaft.
Kent Moore Tools - DT-22888-60 - Product Categories
- Hand Tools
- Pullers
- Pullers and Pushers
Kent Moore Tools - DT-22888-60 - Features
- Manual Transmission, 2014 Corvette w/7 Speed manual transmission
- DT-22888-60 is a puller adapter set used with J-22888-20A Puller from J-22888-D Bearing Puller kit to service the Tremec TR6070 manual transmission. DT-22888-60 is used to remove the mainshaft rear bearing support inner race, output shaft press-fit spacer, 5th/6th synchronizer hub, 4th and 6th drive gears, and the 5th, 7th and reverse driven gears. DT-22888-60 must be used on the 5th driven gear due to the lack of clearance between the gear and the case. When removing the 5th and 7th driven gears, the forcing screw on J-22888-20A is used against puller pilot EN-46359 to prevent damage to the end of the output shaft.
- Tillman Tools is your one source for auto mechanic and body shop tools, shop equipment, industrial tools and shop supplies. Specialists in vehicle specific mechanic tools, shop tools, industrial tools and shop equipment.
Kent-Moore Tools - DT-22888-60 - Specifications
| Brand Name | Kent-Moore Tools |
| Manufacturer Part Number | DT-22888-60 |
| Item Description | Puller Adapter Leg Set |
Kent Moore Tools - DT-22888-60 - Partial List of Applications
| Manual Transmission - Tremec 6-Speed (M13 MJK MM6) : Transmission : Camaro | 2017 |
| Manual Transmission - Tremec 6-Speed (M3L MG9) : Transmission : ATS | 2017 |
| Manual Transmission - Tremec 6-Speed (MG9 M3L) : Transmission : ATS | 2016 |
| Manual Transmission - Tremec 6-Speed (MM6 M13) : Transmission : Camaro | 2016 |
| Manual Transmission - Tremec 7-Speed (MEL MEP MEK) : Transmission : Corvette | 2016, 2017 |
| Manual Transmission : Transmission : Corvette | 2014 |
