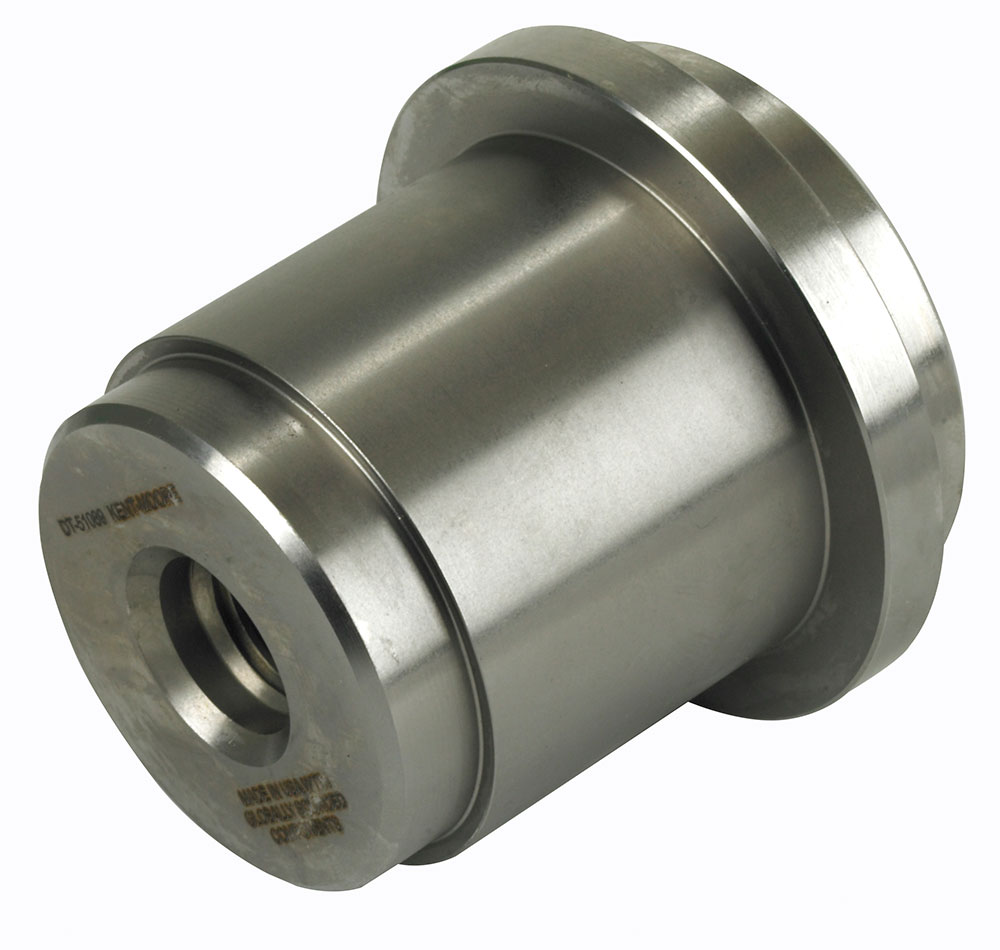

Kent-Moore DT-51089 | Clutch Housing Bearing Installer
Application: 8L45 TransmissionDT-51089 is a double Ended Tool that Pilots inSide the Bearing for the C13567 Clutch and the Bearing for the C23468/C45678 Reverse Clutch Housing to Install the Bearings below Flush to the GM EngineeRing depth specification of 1.00mm for one and 45.18mm for the other. Positive stops on the Tool ensure the Bearings are Installed to the required precise depths
Partial List of Applications
| Automatic Transmission - 8L45 (M5N M5T) or 8L90 (M5U) : Transmission : ATS | 2016, 2017 |
| Automatic Transmission - 8L45 (M5N) or 8L90 (M5U) : Transmission : CTS | 2016, 2017 |
| Automatic Transmission - 8L45 (M5N) or 8L90 (M5X) : Transmission : CT6 | 2016, 2017 |
| Automatic Transmission - 8L45 (M5T) or 8L90 (M5U) : Transmission : Camaro | 2016, 2017 |
| Automatic Transmission - 8L45 (M5T) : Transmission : Canyon | 2017 |
| Automatic Transmission - 8L45 (M5T) : Transmission : Colorado | 2017 |
