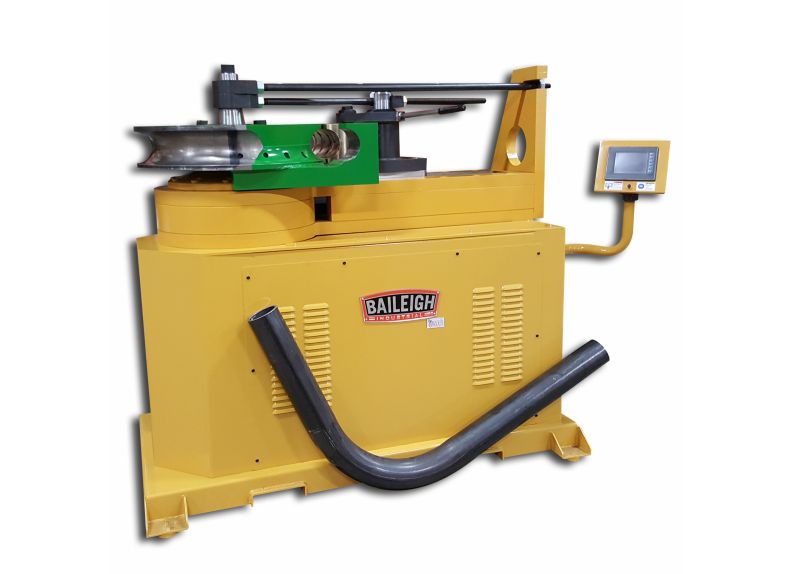

JPW Industries RDB480220 | Baileigh Pipe Bender RDB-480

This programmable pipe bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-480 pipe bender for sale will revolutionize the efficiency of your fabrication shop.

JPW Industries - RDB480220 - Features

• Runs on 220 volt three-phase power.
• Tackles heavy-duty materials, bending up to 5” tubing and 4” schedule 80 pipe.
• Rotary draw bender smoothly executes 180° bends in just 20 seconds and can complete up to 360° bends.
• Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory.

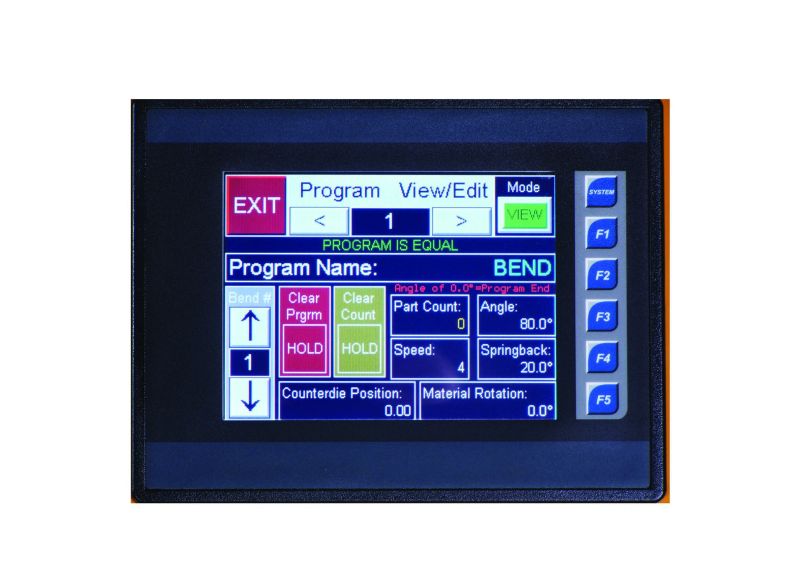

• Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode.
• 2-piece die mount loosens to release bent tubing without a hassle.
• Covered by a 1-year parts warranty and lifetime technical support.
• Why choose Baileigh’s RDB-480 Tube Bender over competing machines?
• Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
• Reduces delays with extremely fast automatic bending.
• You can rely on after-sale support and project advice from Baileigh’s experienced team—just a phone call away—for as long as you’re using the RDB-480.
• Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.

JPW Industries - RDB480220 - Specifications

Brand Name	JPW Industries
Item Description	Baileigh Pipe Bender RDB-480
Stock Number	BA9-RDB480220
Model Number	RDB-480
Bend Direction	Clockwise
Input Power	220V - 3-Phase
Max Bend (Degrees)	180.0000
Mild Steel Pipe Schedule 80	4
Minimum Center line Radius	6
Minimum OD	2.5
Motor (HP)	10 hp
Prop 65	Cancer and Reproductive Harm
Round Tube Capacity (In.)	5" x .083"
Shipping Dimensions (L x W x H) (In.)	60" x 44" x 68"
Warranty	1 Year
Gross Weight	7000.0
Net weight	7000.0

JPW Industries - RDB480220 - Documents and Downloads

JPW Industries RDB480220 Specification Sheet

Click to View
