JPW Industries RDB350220TS | Programmable Tube Bender | RDB-350-TS

This Tubing Bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS Industrial Tubing Bender bends 180° in 16 seconds. Its quick-release die system speeds up production.

JPW Industries - RDB350220TS - Features

• Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness
• 24” centerline radius maximum and bends to 360° in one shot, both left and right
• You can program the desired angle, material springback, and bend speed for easy repeatability
• Programmer can also keep track of rotational orientation

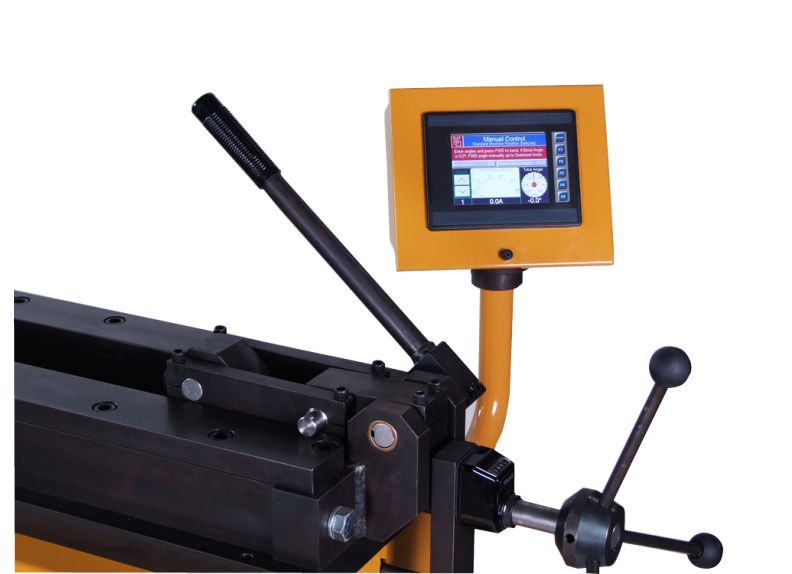

• Touchscreen controller designed for user-friendly programming
• 320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
• Internal memory can store up to 170 programs of 10 bends per program
• Unlimited program storage/backup via the micro-SD port (standard 2CB SD card)

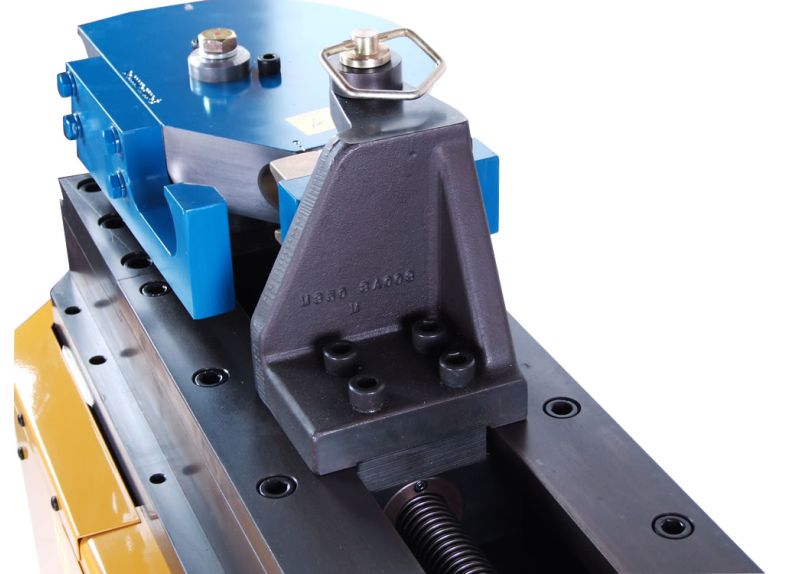

• Quick-release counter die system allows you to load and unload the pipe bender quickly for high production runs
• Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes
• We cover this pipe bender with a 1-year parts warranty. Includes lifetime technical support by phone, so you can call up a Baileigh representative anytime for project advice and troubleshooting. Questions? Give us a call at 1-920-654-1918 or fill out our contact form.
• Mini Mandrel Attachment for the RDB-350 Tube Bender (optional)
• Sample Tooling List

JPW Industries - RDB350220TS - Specifications

Brand Name	JPW Industries
Item Description	RDB-350-TS
Stock Number	BA9-RDB350220TS
Model Number	RDB-350-TS
Chromoly Round Tube Wall	2.5" (.125)
Input Power	220V / 3-phase
Minimum OD	0.24
Prop 65	Cancer and Reproductive Harm
Round Pipe Sch. 40 Capacity (In.)	2.5"
Round Tube Capacity (In.)	3" (.187)
Shipping Dimensions (L x W x H) (In.)	78x45x80
Square Tube Capacity (In.)	3" (.125)
Warranty	1 Year
Gross Weight	1484.0
Net weight	1484.0

JPW Industries - RDB350220TS - Documents and Downloads

JPW Industries RDB350220TS Specification Sheet

Click to View
