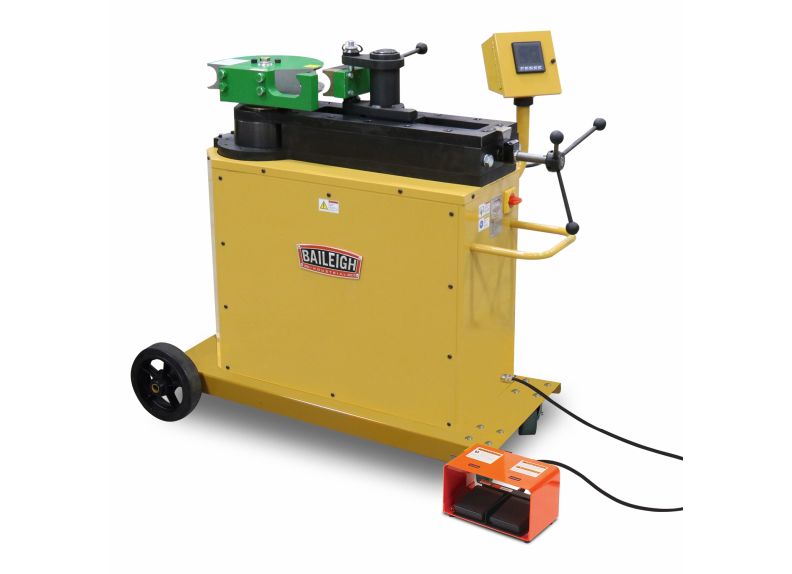

JPW Industries RDB325220 | Programmable Pipe Bender RDB-325

Designed to be a workhorse in any shop for decades, the RDB-325 programmable tube/pipe bender can tackle a huge capacity of 2” schedule 80 pipes (mild steel T.S. 64,000 PSI) and 3” round tubing. Order this programmable pipe bender from Baileigh Industrial today.

JPW Industries - RDB325220 - Features

• 16” maximum centerline radius depending on material OD.
• Runs on 220-volt single-phase power, so it will work in almost any fabrication setting.
• Rotates up to 360° degrees in either direction, ideal for rod applications if you use our optional universal bending plate.
• Comes standard with a simple-to-use touchscreen controller.
• Internal storage holds up to 170 programs of up to 10 bends per program.
• Also accepts memory cards (standard 2CB SD card, max) to store programs.
• Convenient foot pedal controls let you stop and start the machine while leaving your hands free.

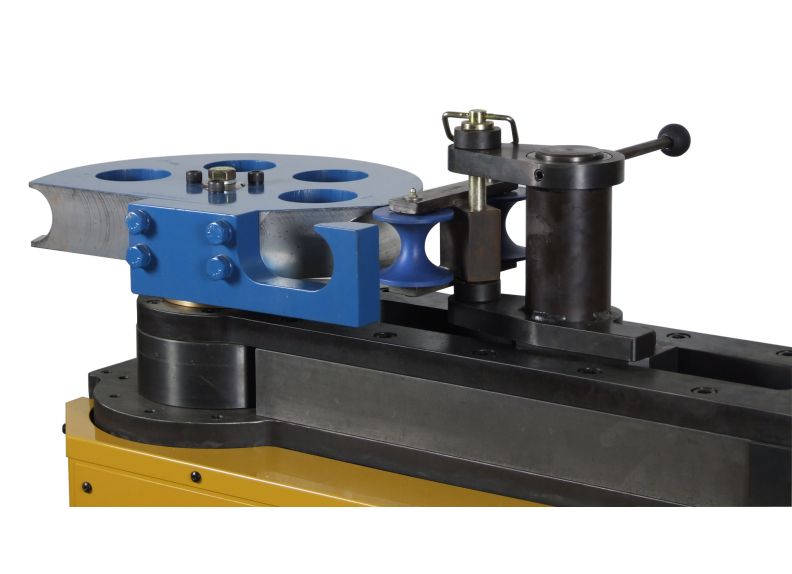

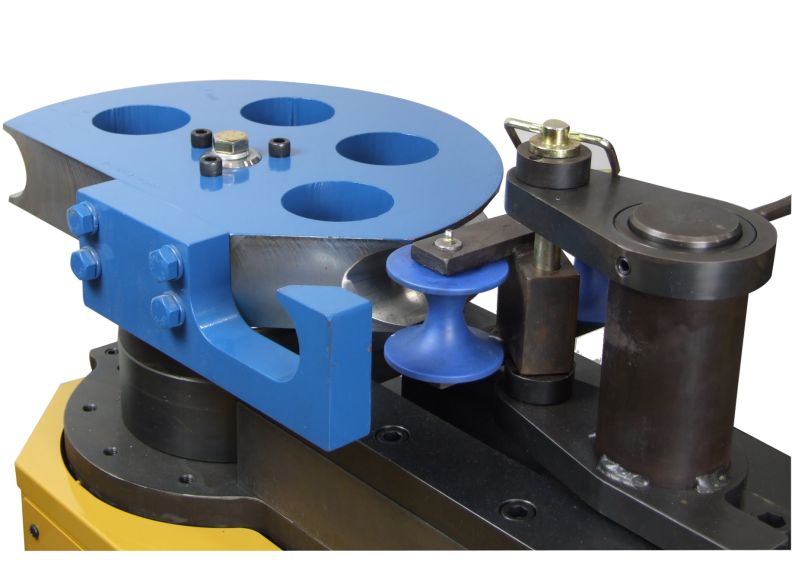

• Swing-away counter die system helps you save valuable time on tooling changes and increase your production.
• Compatible with over 5,000 optional die and tooling sets available from Baileigh Industrial. There’s sure to be one that can fit your application!
• You can add an optional indexing table to bend on varying planes and easily duplicate complex bends.

JPW Industries - RDB325220 - Specifications

Brand Name	JPW Industries
Item Description	Programmable Pipe Bender RDB-325
Stock Number	BA9-RDB325220
Model Number	RDB-325
Center Line Radius (In.)	16.5
Chromoly Round Tube Wall	3" (.083)
Input Power	220V / 1-phase
Mild Steel Pipe Schedule 80	2
Minimum Center line Radius	0.5
Minimum OD	0.25
Pipe Capacity (In.)	2"
Prop 65	Cancer and Reproductive Harm
Round Pipe Sch. 40 Capacity (In.)	2
Round Stock Capacity (Max.) (In.)	1.25"
Round Tube Capacity (In.)	2" (.120)
Shipping Dimensions (L x W x H) (In.)	60x44x77
Warranty	1 Year
Gross Weight	1100.0
Net weight	1100.0

JPW Industries - RDB325220 - Documents and Downloads

JPW Industries RDB325220 Specification Sheet
