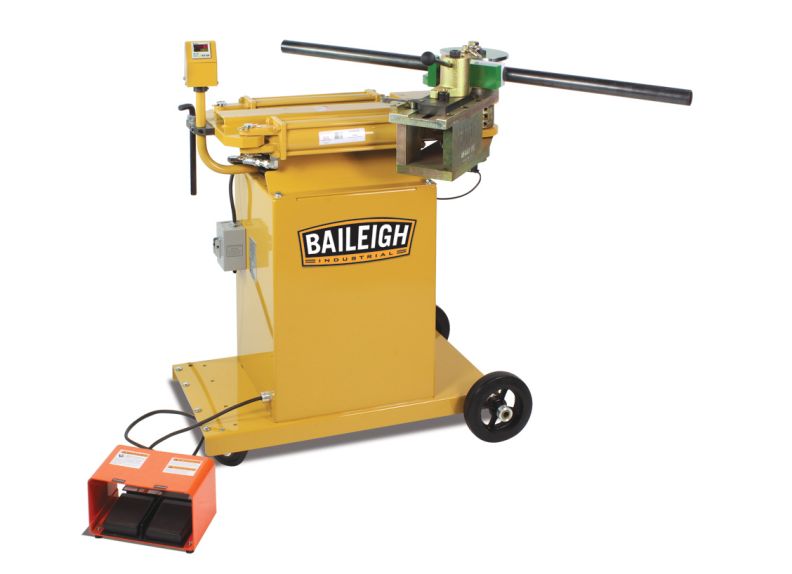

JPW Industries RDB175B | Tube Bender - BA9-RDB175B

Made in the USA, this hydraulic rotary draw bender improves on our breakthrough RDB-150 with patented* additional features to streamline your bending jobs.

JPW Industries - RDB175B - Features

• Maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.

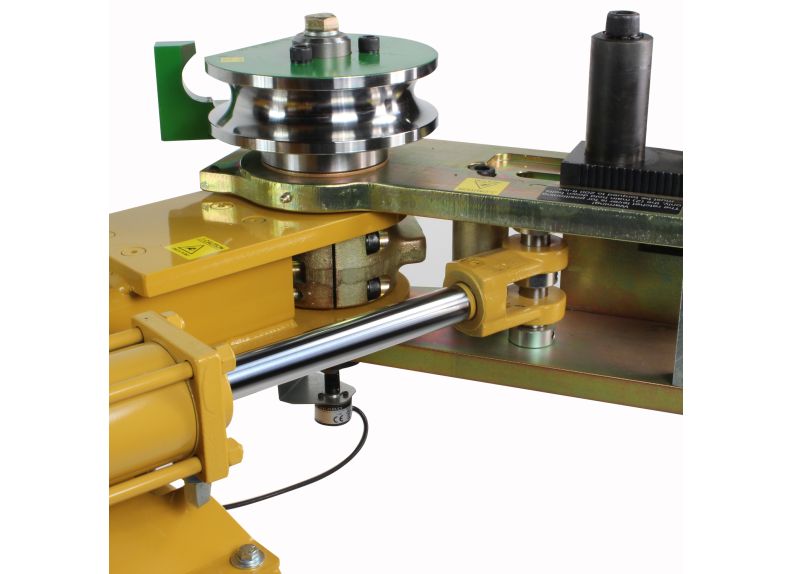

• Rotary draw executes 180° bends in a smooth single motion.
• Bends almost 300% faster than the RDB-150, making quick work of round tube, pipe, and square tubing.
• Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy.
• Easy-to-read digital degree indicator to monitor bend progress and check angles.
• Convenient foot pedal controls the movements of the bender, leaving your hands free to guide the material.
• Works with up to a 9’’ centerline radius to accommodate 90% of applications.
• Ratcheting counter die adjustment allows for quick tooling changes.
• No valves on top, leaving plenty of open space for complex bends.
• Backed by a 1-year parts warranty and lifetime technical support.
• Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
• Why choose the RDB-175 over similar machines?

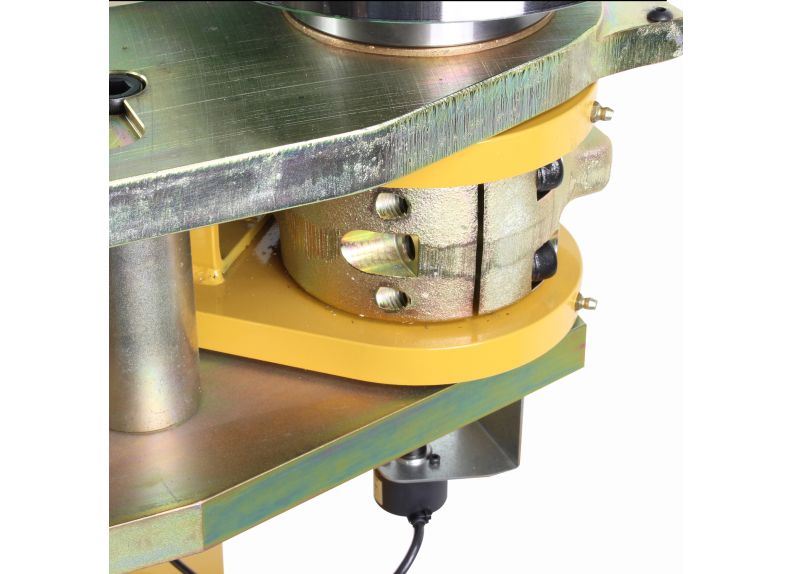

• Improved-accuracy digital readout package measures bend angle on the die head or spindle instead of cylinder placement to get a true reading.
• You can count on the extreme speed and reliability of the RDB-175 to eliminate delays.
• Accepts a wide range of quality tooling options from Baileigh, with over 5000 die sets available.
• Limitless after-sale support from Baileigh representatives with hands-on experience is just a phone call away.
• *U.S Patent No. 7,380,430 / U.S Patent No. 7,743,636.

JPW Industries - RDB175B - Specifications

Brand Name	JPW Industries
Item Description	Tube Bender - BA9-RDB175B
Stock Number	BA9-RDB175B
Model Number	BA9-RDB175B
Aluminum Pipe Schedule 40	2.5" (.156)
Center Line Radius	9" MAX
Chromoly Round Tube Wall	2" (.125)
Input Power	110 volt
Max. Bend (Deg.)	180
Minimum Center line Radius	.5"
Minimum OD	0.25
Pipe Capacity (In.)	2"
Prop 65	Cancer and Reproductive Harm
Round Tube Capacity (In.)	2.5" (.125)
Shipping Dimensions (L x W x H) (In.)	60x44x77
Square Tube Capacity (In.)	2" (.125)
Warranty	1 Year
Gross Weight	700.0
Net weight	700.0

JPW Industries - RDB175B - Documents and Downloads

JPW Industries RDB175B Specification Sheet

Click to View
