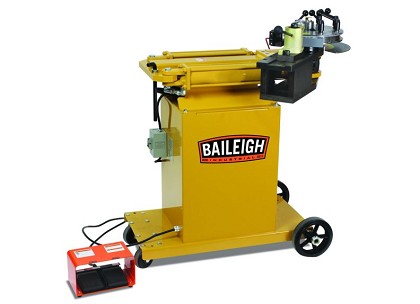

JPW Industries RDB150110 | Hydraulic Tube Bender - (RDB-150)

This American-made machine set a new standard in 2002 as the first Hydraulic Tube Bender to bend tube and pipe 180° in one shot. Now we have thousands of RDB-150s in the field—working as well today as they did the day they were made.

JPW Industries - RDB150110 - Features

• Runs on just 110 volts of power and will work at most fabrication sites in North America
• Rotary draw powered by low-pressure, industrial-grade hydraulic system
• 8” centerline radius maximum, depending on the outside diameter of the material
• Bends with a capacity of 2" schedule 40 pipe and up to 2.5" tubing with a wall thickness of .120" mild steel
• Easy-to-read degree indicator to help you achieve correct bend degrees

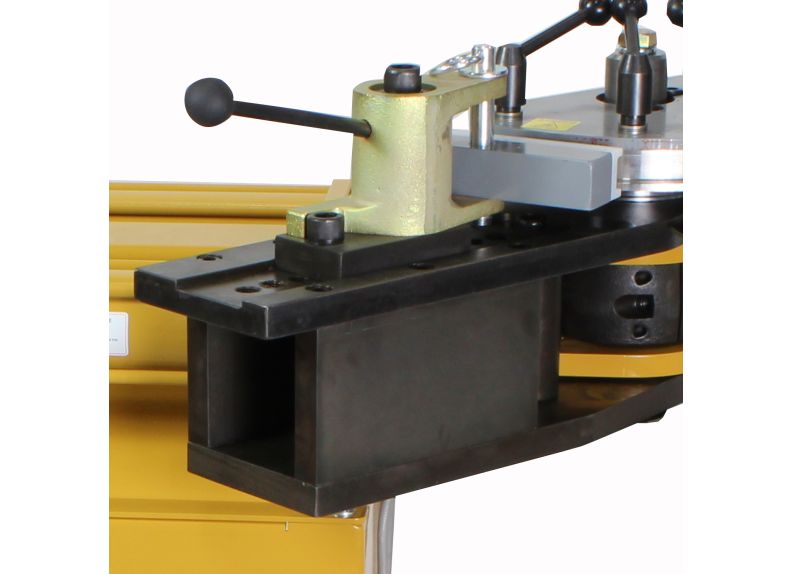

• Quick-release counter die system for hassle-free loading and unloading
• Includes wheels on the base for smooth movement, helpful for storage in small shops
• Covered by a 1-year parts warranty and lifetime technical support
• Why choose the RDB-150 over similar machines?
• Our original, much-imitated twin-cylinder design remains unequaled.
• Small- to medium-sized fabrication shops will save time and money by investing in this hydraulic bender.
• Accepts simple-to-add drop-on tooling from Baileigh—including custom sets on request—giving you thousands of possibilities.
• Our limitless after-sale support means that free advice on projects and applications is always just a call away.
• Please give us a call at 1-920-654-1918 to talk to a customer service representative or fill out our contact form.
• Sample Tooling List

JPW Industries - RDB150110 - Specifications

Brand Name	JPW Industries
Item Description	Hydraulic Tube Bender - (RDB-150)
Stock Number	BA9-RDB150110
Model Number	RDB-150
Chromoly Round Tube Wall	2" (.125)
Input Power	110V
Minimum OD	0.25
Prop 65	Cancer and Reproductive Harm
Round Pipe Sch. 40 Capacity (In.)	2"
Round Tube Capacity (In.)	2.5" (.125)
Shipping Dimensions (L x W x H) (In.)	60x44x77
Square Tube Capacity (In.)	2" (.125)
Warranty	1 Year
Gross Weight	610.0
Net weight	610.0

JPW Industries - RDB150110 - Documents and Downloads

JPW Industries RDB150110 Specification Sheet

Click to View
