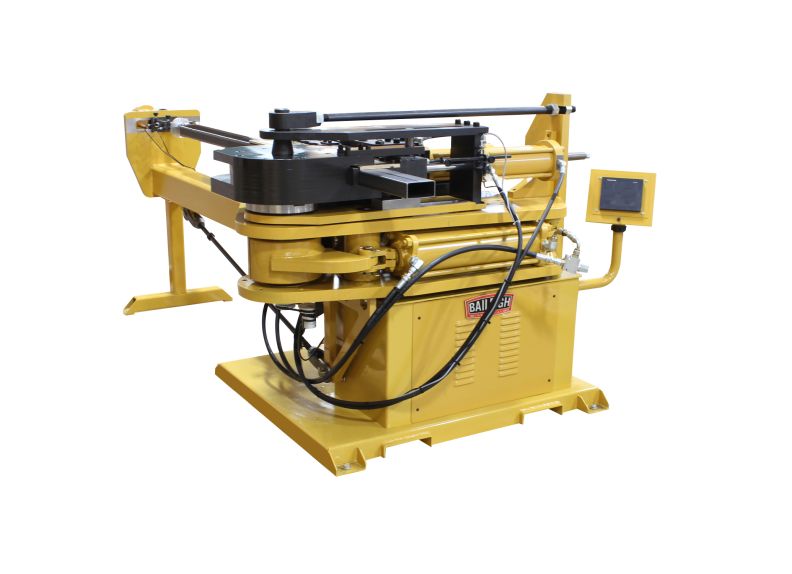

JPW Industries MB4X2 | Mandrel Tube Bender

Are you sick of outsourcing your square and rectangle mandrel bends? Are you tired of waiting up to 16 weeks for your frame rails? Do you want more control of your own quality, inventory and lead times?

JPW Industries - MB4X2 - Features

• This Baileigh mandrel bender is capable of bending to 100°
• Many tooling options capable of bending rectangle the hard way, and easy way, square and round materials, this tube bender is about as versatile as it gets.
• A full size color touchscreen allows easy programming and endless memory via external USB. Once programmed, the auto sequencing hydraulics eliminate any chance of human error.
• Early mandrel retraction ensures a smooth bend every time and the encoder based auto-stop is extremely accurate at a speed of 5-10 second @ 90 degrees.
• An endless tooling library and several table length options, the bender can be customized and engineered around your bending needs.
• 220V three phase power
• Things to know before purchasing
• PLEASE BE AWARE THAT RECTANGLE TUBING USES INSIDE RADIUS FOR MEASURING BENDS
• The MB-4X2 has revolutionized the square and rectangle mandrel bending market by providing an American Made bending solution at an affordable price. Geared towards the automotive frame rail market, this compact mandrel bender is a fraction of the size and cost of traditional bending solutions. Some of the great features are as follows;
• Must purchase appropriate table in order for machine to function properly! Tooling not included, contact Baileigh at 920-654-1918 for correct sizing.

JPW Industries - MB4X2 - Specifications

Brand Name	JPW Industries
Item Description	Mandrel Tube Bender
Stock Number	BA9-MB4X2
Bend Direction	Clockwise
Hydraulic Motor	7.5
Input Power	220V - 3-Phase
Max. Bend (Deg.)	100
Maximum Pressure (PSI)	3000 psi.
Model Number	MB-4X2
Prop 65	Cancer and Reproductive Harm
Rectangle Capacity	2" x 4" x 11ga. Hardway
Shipping Dimensions (L x W x H) (In.)	60x60x48
Warranty	1 Year
Gross Weight	3500.0
Net weight	3500.0

JPW Industries - MB4X2 - Documents and Downloads

JPW Industries MB4X2 Specification Sheet

Click to View
