JPW Industries EW21 | EW-21 - Bench Top English Wheel

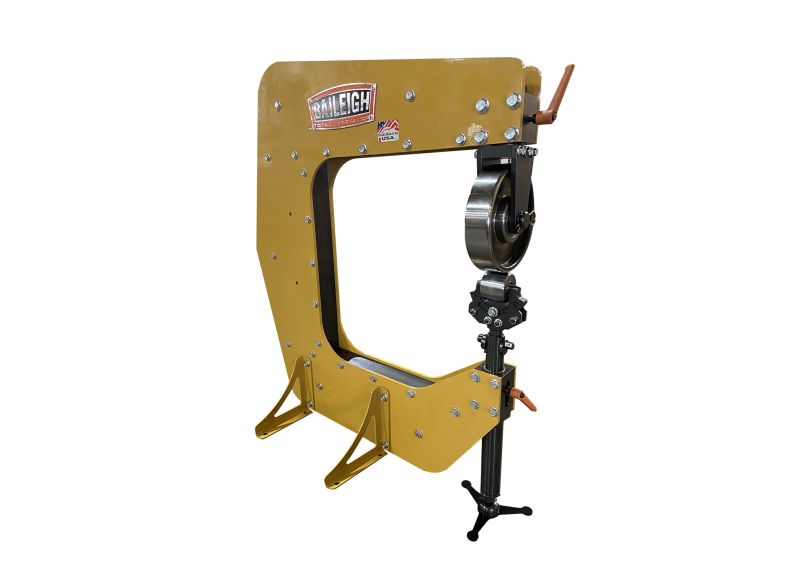

Made from twin 3/8” thick steel plates, the EW-21 benchtop English wheel is just what the metal shaping doctor ordered for small shops. But don't let the small size fool you, it is one of the most rigid English wheels on the market with features that other wheels can only dream about. It includes 4 anvils, to handle almost any application.

JPW Industries - EW21 - Features

• 16 gauge mild steel capacity.
• 21” throat depth with a large lower opening for curved panels.

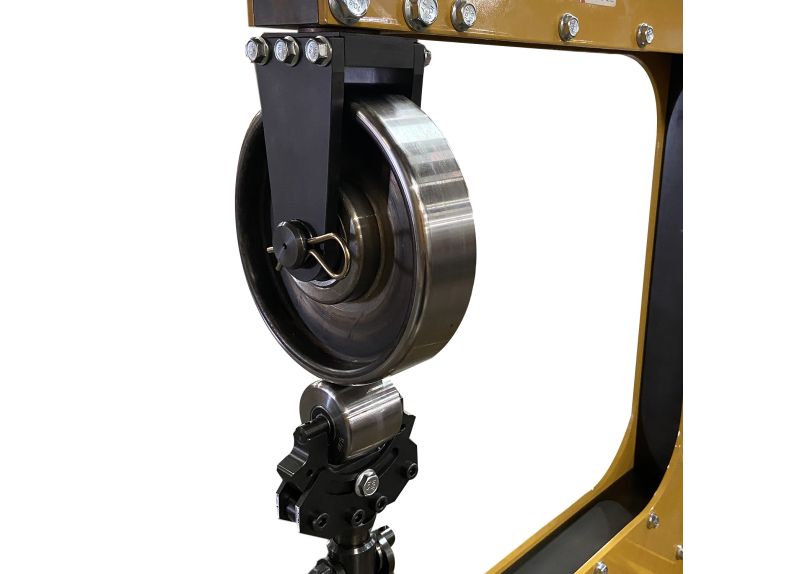

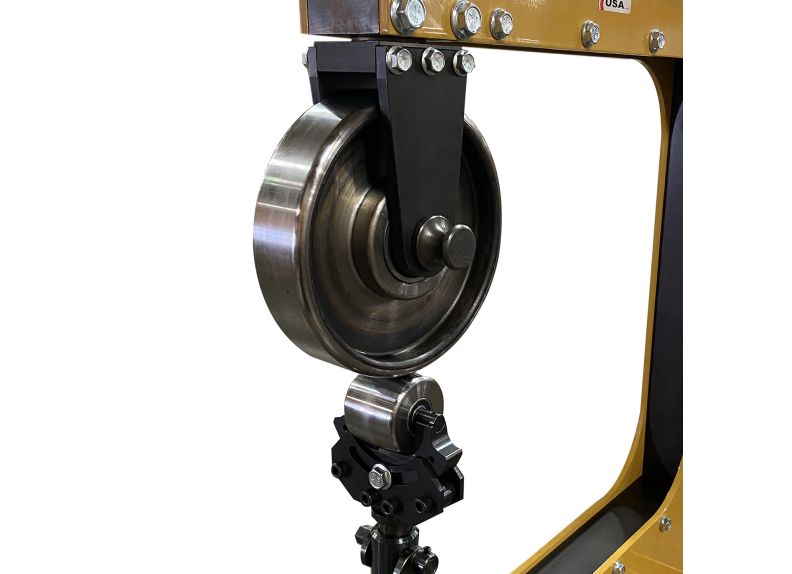

• The upper wheel is 8” diameter x 2” wide.
• Comes with 4 bottom anvils (all 2” wide) in the following radii: flat, 2”, 8", and 24”.
• Everything on this wheel is adjustable, including the caster and camber of the bottom anvil.
• The wheel even rotates to work parallel with the frame for those long projects.
• Incorporates quick-release lower anvil support with locking cam for easy panel removal.
• You can conveniently store your anvils on the integrated roll holder.
• For those with extra space, a sturdy floor stand is available.
• Optional lower anvils are available, as well as a rubber top roll.

JPW Industries - EW21 - Specifications

Brand Name	JPW Industries
Item Description	EW-21 - Bench Top English Wheel
Stock Number	BA9-EW21
Model Number	EW-21
Prop 65	Cancer and Reproductive Harm
Warranty	1 Year
Gross Weight	305.0
Net weight	305.0
Aluminum Capacity (Gauge)	14.0000
Head Style	Rotating
Lower Die Radius	FLAT, 24", 8", 2"
Mild Steel Capacity (Gauge)	16.0000
Shipping Dimensions (L x W x H) (In.)	60x48x80
Shipping Weight (Lbs.)	600
Throat Depth (In.)	21"
Top Roll Diameter	8

JPW Industries - EW21 - Documents and Downloads

JPW Industries EW21 Specification Sheet

Click to View
