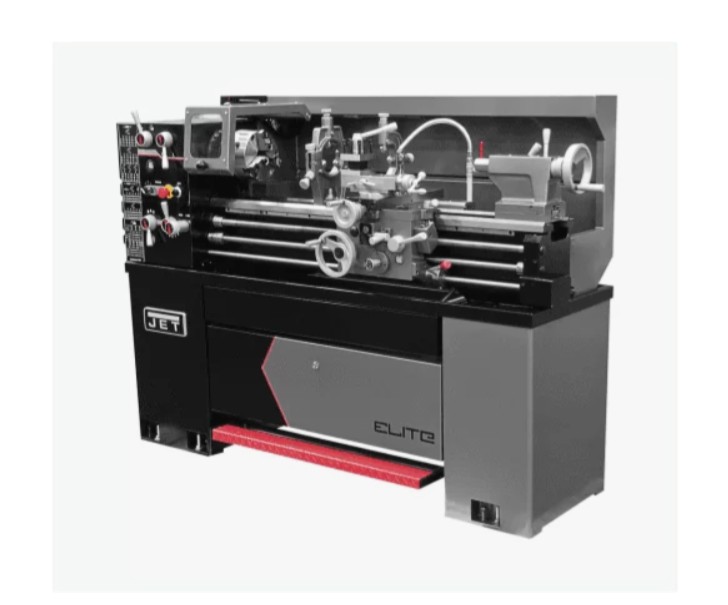

JPW Industries 892020 | E-1340VS, Elite 13x40 EVS Lathe

EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

JPW Industries - 892020 - Features

• Electromagnetic assisted foot brake for rapid braking
• Inverter drive system provides infinitely variable spindle speeds
• Steady and follow rest feature double sealed ball bearing guides for smooth material movements
• Chuck guards are standard equipment on all ELITE lathes for increased safety
• Front facing chip pan allows easy chip removal from the front of the machine
• 1-1/2" Spindle Bore
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
• Hardened and ground gears in headstock reduce vibration and deflection
• Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
• Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
• Overload clutch at feed shaft prevents the carriage from crashing into the chuck
• Certified Meehanite castings retain their tolerances and remain rigid through many years of machining
• Heavy-duty stand with full length foot brake
• LED RPM readout allows for precise turning speeds
• For added safety, the E-1340VS Lathe follows strict guidelines and electrical requirements to be certified by CSA Group
• Standard Equipment
• 6" 3-Jaw chuck
• 10" Faceplate for 12" Lathes
• 12" Faceplate for 13 & 14" Lathes
• Steady Rest-Ball Bearing
• Follow Rest- Ball Bearing
• 4-Way Tool Post
• Chuck Guard
• 4-Position Carriage Stop
• Threading Dial
• Coolant System
• Center Sleeve
• Dead Center
• Leveling Pads
• Tool Box With Tools

JPW Industries - 892020 - Product Categories

• Lathes
• EVS

JPW Industries - 892020 - Specifications

Brand Name	JET (JPW Industries)
Manufacturer Part Number	892020
Item Description	E-1340VS, Elite 13x40 EVS Lathe
Size	13 x 40
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-5/8
Swing Through Gap (In.)	19
Length of Gap (In.)	9
Distance Between Centers (In.)	40
Spindle Bore (In.)	1-1/2
Spindle Mount	D1-4
Spindle Taper with Sleeve	MT5
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	0 - 2,200
Number of Longitudinal and Cross Feed Rates	80
Range of Longitudinal Feeds (IPR)	0.0012 - 0.0294
Range of Cross Feeds (IPR)	0.0003 - 0.01
Number of Inch Threads	40
Range of Inch Threads (TPI)	4 - 112
Number of Metric Threads	22
Range of Metric Threads	0.45 - 7.5
Max Tool Size (In.)	5/8 x 5/8
Compound Slide Travel (In.)	3-1/2
Cross Slide Travel (In.)	6-1/2
Tailstock Spindle Travel (In.)	5
Taper in Tailstock Spindle	MT3
Follow Rest Capacity (In.)	1/4 - 2-3/8
Steady Rest Capacity (In.)	1/4 - 2-3/4
Width of Bed (In.)	8-1/2
Motor (HP)	3 HP, 230V, 3Ph
Ampearge Draw @ 230V 3Ph	19
Coolant Pump Motor	1/8 HP
Weight (Lbs.)	1433
Overall Dimensions (L x W x H) (In.)	67 x 30 x 57
Drive	EVS
Style (Type)	ELITE EVS
Width	34.0000
Weight	1700.0000
Height	60.0000
Length	76.0000
