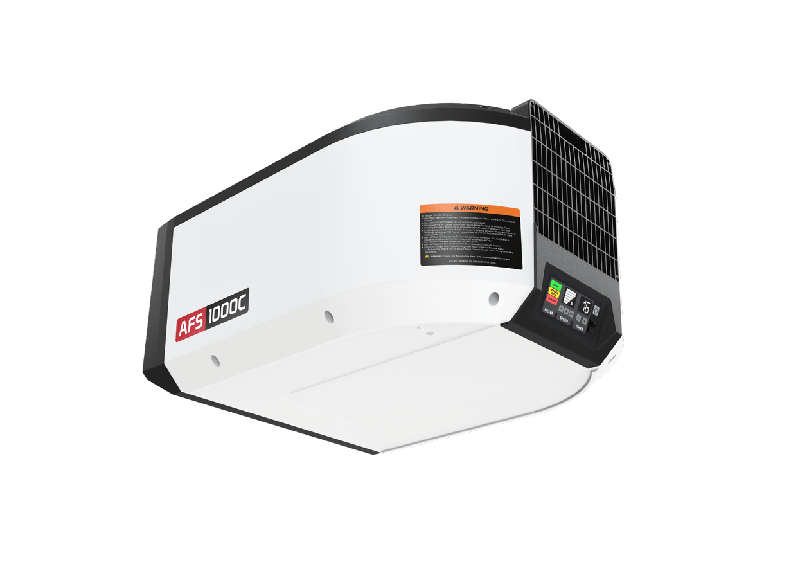

JPW Industries 713000 | AFS-1000C Air Filtration System, Remote Control, 1000CFM, 1Ph 120V

Improved design and added technology make the AFS1000C a must have in any shop. The AFS1000C detects dust levels and can adjust fan speed accordingly. The filter life is also monitored and displayed on the tilted LED display panel. ABS injection molded body makes the unit lighter and less prone to damage. Bright LED display shows filter life, speed, and timer settings. A Radio Frequency remote makes changing speed and setting the timer, up to 16 hours, from any where in the shop.

JPW Industries - 713000 - Features

• Automatic air quality sensor adjusts the six speeds based on air quality
• Captures particles down to 1 micron
• Timer can be set up to 16 hours
• Bright, clear, LED display panel is angled for easier viewing when ceiling mounted
• Two-Filter system with air Diffuser disperses air into a broader pattern
• LED notification of filter life updated by sensor
• Radio frequency remote makes adjusting speeds and setting the timer easy
• Quiet and efficient BLDC motor
• Strong injection molded plastic dampens vibration and noise

JPW Industries - 713000 - Specifications

Brand Name	JPW Industries
Item Description	AFS-1000C Air Filtration System, Remote Control, 1000CFM, 1Ph 120V
Stock Number	JT9-713000
Inner Filter Efficiency	1
Model Number	AFS-1000C
Motor Amps	3.8
Motor Phase	Single
Motor Power (HP)	1/3
Motor Voltage (V.)	120
Overall Dimensions (L x W x H) (In.)	765 x 615 x 390 /mm
Overall Height (In.)	390mm
Prewired Voltage (V.)	120
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	15
Speeds	6
Speeds (CFM)	450 - 1000
Warranty	5 Year
Gross Weight	41.88
Net weight	33.0
Full Load Amps	15
Sound Rating (Db.)	51 - 67db @ 1 meter
Timer Settings (hrs)	1 - 16
