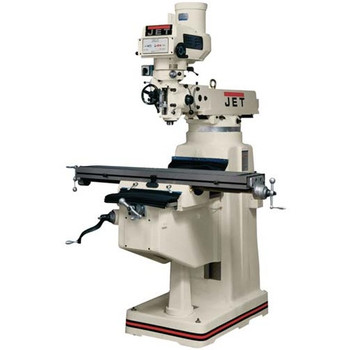

JPW Industries 691227 | JTM-1055, Mill with NEWALL DP700 3-Axis Quill DRO X and Y Powerfeed
JPW Industries 691227 | JTM-1055, Mill with NEWALL DP700 3-Axis Quill DRO X and Y Powerfeed
Accept Credit Cards
Official PayPal Seal

JPW Industries 691227 | JTM-1055, Mill with NEWALL DP700 3-Axis Quill DRO X and Y Powerfeed

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC691227
0 Review(s)
Write a Review
$20,990.92
Retail Price:$22,160.68
Your Savings:$1,169.76(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 691227 | JTM-1055, Mill with NEWALL DP700 3-Axis Quill DRO X and Y Powerfeed


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 691227 - Features

  • Meehanite casting, hardened and ground table certified to be 52C Rockwell hardness
  • Chrome lead screws on X and Y axis
  • Boxed style ways on Y and Z axis
  • Turcite B on X and Y axis
  • Satin chrome finished dials, and large diameter quill is chromed
  • Precision bored and honed milling head
  • High precision Class 7 spindle bearings
  • Auxiliary fan cools the spindle head
  • Chrome plated motor shaft has lower bearing support
  • Motor pulleys are ground to increase belt life
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
  • Locks on all moveable surfaces
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)
  • Weight: 3300 lbs.
  • Collet Capacity: 1/8 - 7/8
  • Cross Travel (Y-axis): 16-in
  • Distance Spindle to Column: 26-in
  • Distance Spindle to Table: 20-in
  • Head Movement: 90 Degrees Right and Left
  • Longitudinal Table Travel (X-axis): 32-in
  • Motor: 5 HP, 3 Ph 230V/460V
  • Number of Spindle Speeds: Variable
  • Number of T-Slots: 3
  • Pre-Wired: 230V
  • Quill Diameter: 4-1/8-in
  • Quill Down Feed Rates: 0.0015 - 0.003 - 0.006 IPR
  • Range of Spindle Speeds: 80 - 3,800 RPM
  • Spindle Taper: NST #40
  • T-Slot Centers: 2-1/2-in
  • T-Slot Size: 5/8-in
  • Table Size: 10-in x 54-in
  • Travel of Knee: 17-1/2-in
  • Travel of Ram: 20-1/2-in
  • Worktable Weight Capacity: 800 lbs.



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 691227 - Specifications

Brand NameJPW Industries
Manufacturer Part Number691227
Item DescriptionJTM-1055, Mill with NEWALL DP700 3-Axis Quill DRO X and Y Powerfeed
