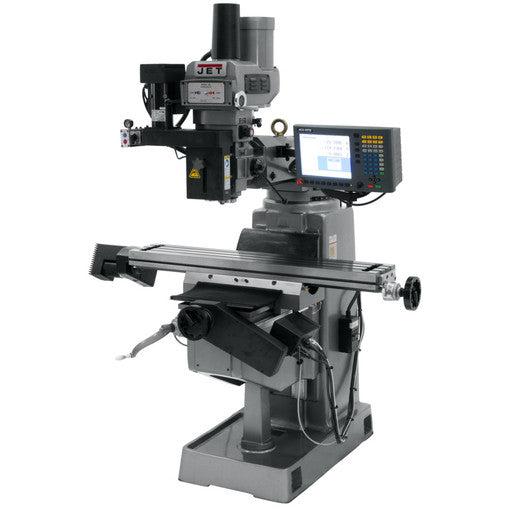

JPW Industries 690949 | JTM-4VS Mill 3-Axis G-2 MILLPWR CNC Air Powered Draw Bar
JPW Industries 690949 | JTM-4VS Mill 3-Axis G-2 MILLPWR CNC Air Powered Draw Bar
Accept Credit Cards
Official PayPal Seal

JPW Industries 690949 | JTM-4VS Mill 3-Axis G-2 MILLPWR CNC Air Powered Draw Bar

assets/images/jpw-120.png
Availability: In Stock
Part Number: 690949
0 Review(s)
Write a Review
$56,259.49
Retail Price:$60,666.06
Your Savings:$4,406.57(7%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690949 | JTM-4VS Mill 3-Axis G-2 MILLPWR CNC Air Powered Draw Bar

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty




https://www.autotoolworld.com/assets/icons/product_classification.jpg

JPW Industries - 690949 - Product Categories

  • JET Metalworking
  • Milling
  • CNC Mills



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690949 - Specifications

Brand NameJET (JPW Industries)
Manufacturer Part Number690949
Item DescriptionJTM-4VS Mill 3-Axis G-2 MILLPWR CNC Air Powered Draw Bar
Style (Type)CNC
CNC PackageACU-RITE MILLPWR G2
Number of Axis3
Table Size (L x W) (In.)9 x 49
Power Draw BarPneumatic
Spindle Taper (In. x TPI)R-8
Quill Diameter (In.)3-3/8
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)60 - 4,200
Quill Down Feed Rates (IPR).0015 - .003 - .006
Spindle Travel (In.)5
Head Movement (Deg.)90 R & L, 45 F & B
Max Distance Spindle to Table (In.)17-1/2
Distance Spindle to Column (Max.) (In.)19
Distance Spindle to Column (Min.) (In.)4-1/2
Collet Capacity1/8 - 7/8
Table Longitudinal Travel (In.)34
Table Cross Travel (In.)12
T-Slots Number and Size (In.)3 and 5/8
T-Slot Centers (In.)2-1/2
Work Table Weight Capacity (Lbs.)660
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
Motor (HP)3 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)66 x 63 x 85
Weight (Lbs.)2,420
Width0.0000
Weight2600.0000
Height0.0000
Length0.0000
