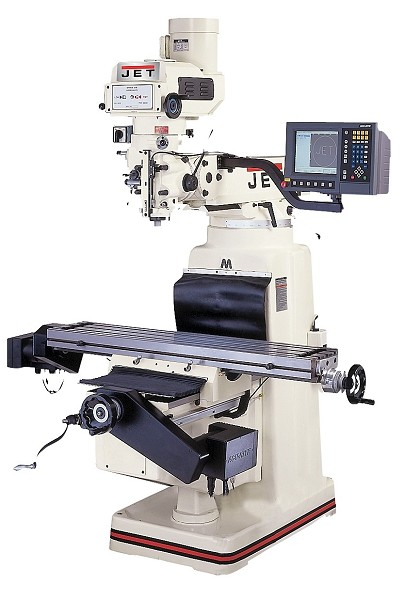

JPW Industries 690914 | JTM-1050EVS/460, Milling Machine with ACU-RITE 3-axis CNC Installed
JPW Industries 690914 | JTM-1050EVS/460, Milling Machine with ACU-RITE 3-axis CNC Installed
Accept Credit Cards
Official PayPal Seal

JPW Industries 690914 | JTM-1050EVS/460, Milling Machine with ACU-RITE 3-axis CNC Installed

assets/images/jpw-120.png
Availability: In Stock
Part Number: WC690914
0 Review(s)
Write a Review
$44,431.84
Retail Price:$46,907.90
Your Savings:$2,476.06(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

JPW Industries 690914 | JTM-1050EVS/460, Milling Machine with ACU-RITE 3-axis CNC Installed


https://www.autotoolworld.com/assets/icons/features.jpg

JPW Industries - 690914 - Features

  • CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS
  • Features of the ACU-RITE MILLPWR 2 or 3 AXIS CONTROL
  • Increased Productivity, mill more efficiently and effectively
  • Bolthole Calculations, calculate bolthole patterns instantly
  • Tool Offsets and Tool Library
  • Jog Control, move quickly from one location to another - using one axis at a time or any two axes simultaneously
  • 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
  • Mirror/Repeat/Rotate, easily manipulate part programs to save time and reduce program steps
  • Ease of use, convenient, user-friendly and multi-faceted
  • 10" flat panel, vivid, color, LCD display to view immediate graphic feedback
  • Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR do the rest
  • Info button, built-in help screens for content specific jobs
  • Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs
  • Versatility, mill and program simultaneously
  • 3-axis Control/ 3-axis Readout, significantly improves efficiency, productivity and profitability, may be used automatically or manually
  • CNC Package ACU-RITE MILLPWR®
  • Number of Axis 3
  • Table Size (L x W) (In.) 10 x 50
  • Spindle Taper (In. x TPI) R-8
  • Quill Diameter (In.) 3-3/8
  • Number of Spindle Speeds Variable
  • Range of Spindle Speeds (RPM) 10-3,600
  • Quill Down Feed Rates (IPR) .0015 - .003 - .006
  • Spindle Travel (In.) 5
  • Head Movement (Deg.) 90 R & L, 45 F & B
  • Max Distance Spindle to Table (In.) 19
  • Distance Spindle to Column (Max.) (In.) 26
  • Distance Spindle to Column (Min.) (In.) 5-1/2
  • Collet Capacity 1/8 - 7/8
  • Table Longitudinal Travel (In.) 30
  • Table Cross Travel (In.) 15-1/4
  • T-Slots Number and Size (In.) 3 - 5/8
  • T-Slot Centers (In.) 2-1/2
  • Work Table Weight Capacity (Lbs.) 720
  • Travel of Knee (In.) 14-1/4
  • Travel of Ram (In.) 20-1/2
  • Motor (HP) 3 HP, 460V Only, 3Ph
  • Overall Dimensions (L x W x H) (In.) 96 x 71 x 88
  • Weight (Lbs.) 3,000



https://www.autotoolworld.com/assets/icons/specs.jpg

JPW Industries - 690914 - Specifications

Brand NameJPW Industries
Manufacturer Part Number690914
Item DescriptionJTM-1050EVS/460, Milling Machine with ACU-RITE 3-axis CNC Installed
